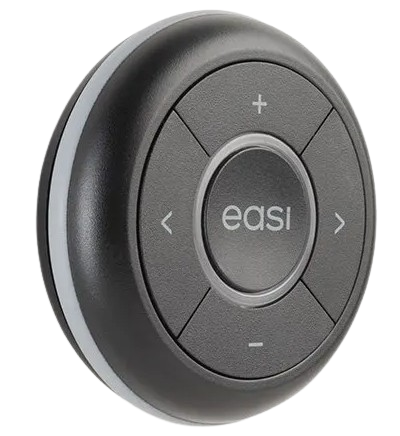

24v EASi DISK Radio Control Dimmer - 72mm

Compare variant

Select the variant you want to compare

24v EASI DISK Radio Control Dimmer - 72mm c/w 36w Driver

£41.24 ex VAT

Select a variant

24v EASI DISK Radio Control Dimmer - 72mm c/w 36w Driver

£41.24 ex VAT

Code: LRC24072

Total £41.24 ex VAT

Customers also bought

Customise your own bundle

Our kit builder ensures you have all the products you need to get the job done.

In stock

24v EASI DISK Radio Control Dimmer - 72mm c/w 36w Driver added to the basket

The 24V EASi DISK Radio Control Dimmer with 36W Driver is an intelligent wireless lighting control solution designed for temperature-changing LED luminaires. Combining a radio frequency remote control with a dedicated 36W EASi DRIVER, the system enables convenient adjustment of lighting brightness, colour temperature and group control without the need for direct wiring between the controller and luminaires.

The EASi system allows a single EASi DISK controller to operate up to three independent lighting groups, each capable of containing an unlimited number of compatible EASi DRIVERS. The remote features five intuitive function controls for power, group selection, brightness adjustment and colour temperature control using forward and rewind modes. An illuminated ring provides clear visual feedback, synchronised with the selected lighting function.

Designed for modern residential and commercial furniture lighting, the EASi DISK can operate alongside up to seven compatible radio controls controlling the same lighting group. Supplied complete with two batteries and a magnetic wall-mounted support, it provides a flexible and user-friendly solution for advanced LED lighting installations.


Product Features

  • Wireless EASi DISK radio control with 36W EASi DRIVER
  • Designed for 24V temperature-changing LED luminaires
  • Controls up to three independent lighting groups
  • Each group supports an unlimited number of compatible EASi DRIVERS
  • Five-button remote control interface
  • Functions include On/Off, group selection, brightness adjustment and colour temperature control
  • Forward and rewind modes for colour temperature selection
  • Integrated illuminated ring synchronised with selected functions
  • Supports up to seven radio controls operating the same lighting group

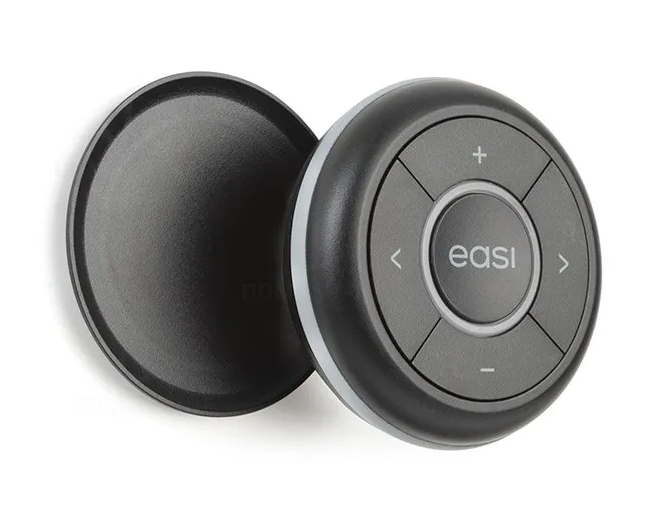

  • Supplied with two batteries and magnetic wall mounting support

Product Benefits

  • Provides convenient wireless control of compatible LED lighting systems
  • Adjusts both brightness and colour temperature to create the ideal lighting atmosphere
  • Controls multiple lighting zones from a single compact remote
  • Supports unlimited compatible drivers within each lighting group for scalable installations
  • Illuminated control ring provides intuitive visual feedback during operation
  • Multiple remotes can operate the same lighting group for greater user flexibility
  • Magnetic wall mount keeps the controller conveniently accessible when not in use
  • Ideal for premium furniture, kitchen and display lighting installations

Technical Characteristics

  • Product Type: Radio Control Dimmer with LED Driver
  • Model: EASi DISK
  • System Voltage: 24V DC
  • Driver Output: 36W
  • Control Method: Radio Frequency (RF)
  • Lighting Compatibility: Temperature-Changing LED Luminaires
  • Lighting Groups: Up to 3
  • Supported Drivers per Group: Unlimited Compatible EASi DRIVERS
  • Remote Functions: On/Off, Group Selection, Brightness, Colour Temperature Forward/Rewind
  • Multi-Controller Support: Up to 7 Radio Controls per Group
  • Accessories Included: Two Batteries and Magnetic Wall Mount
  • Controller Diameter: 72mm

Applications

The 24V EASi DISK Radio Control Dimmer with 36W Driver is ideal for kitchen cabinetry, wardrobes, dressing rooms, shelving, display cabinets, retail displays, hospitality interiors, office furniture and bespoke joinery. Designed for use with compatible EASi temperature-changing LED lighting systems, it provides wireless control of multiple lighting zones with adjustable brightness and colour temperature for premium residential and commercial installations.

24v EASI DISK Radio Control Dimmer - 72mm c/w 36w Driver
Voltage 24V DC
Diameter (mm) 72
Power Rating (W) 36
Connection System Micro24
Download Specification
