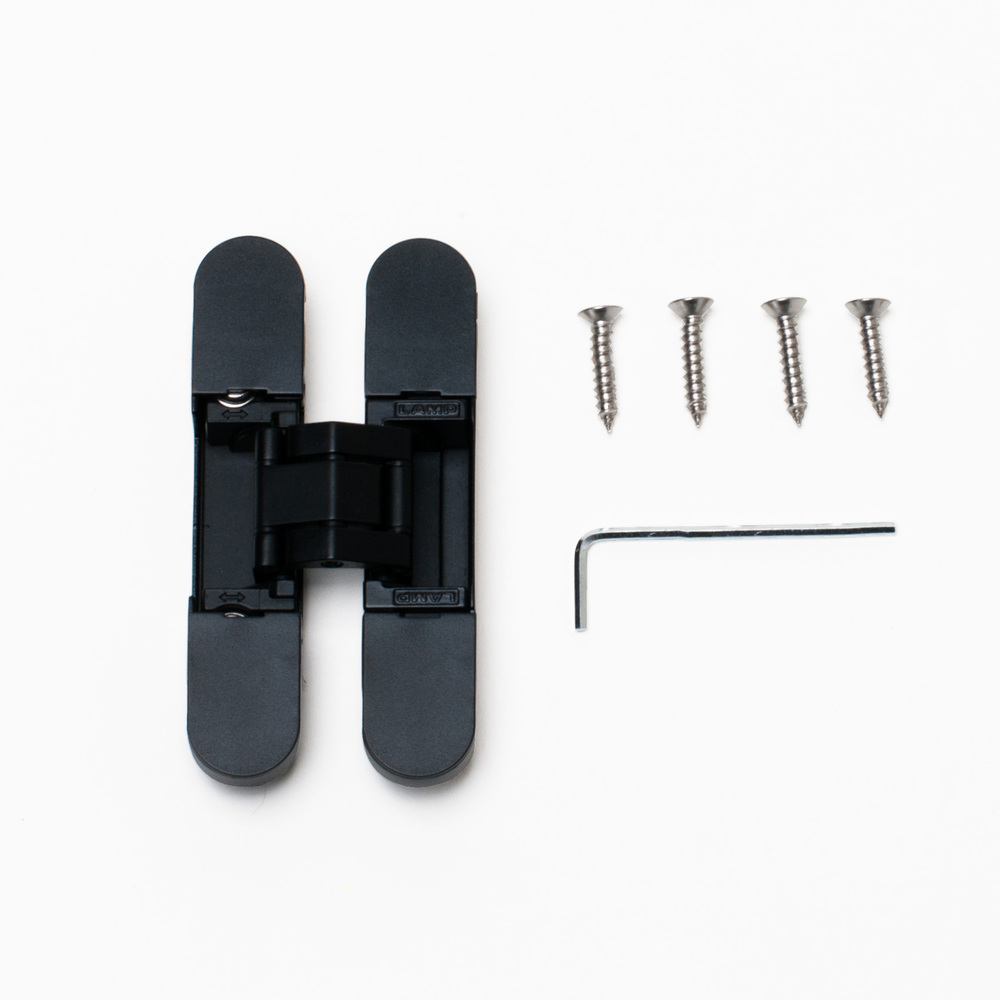

Sugatsune 3-Way Adjustable Concealed Hinge - Min 23mm Door Thickness
Sugatsune 3-Way Adjustable Concealed Hinge - Min 23mm Door Thickness is engineered to deliver precise door alignment and fully concealed... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Sugatsune 3-Way Adjustable Concealed Hinge - Min 23mm Door Thickness - Black | In Stock | HA3D-23BK | Download | £33.63 ex VAT |
|
|
| Sugatsune 3-Way Adjustable Concealed Hinge - Min 23mm Door Thickness - Silver | Typically available in 2-3 days. Need it faster? Contact us. | HA3D-23SI | Download | £33.63 ex VAT |
|
|
| Sugatsune 3-Way Adjustable Concealed Hinge - Min 23mm Door Thickness - Satin Nickel | Typically available in 2-3 days. Need it faster? Contact us. | HA3D-23SN | Download | £31.55 ex VAT |
|
Compare Sugatsune 3-Way Adjustable Concealed Hinge - Min 23mm Door Thickness
Sugatsune 3-Way Adjustable Concealed Hinge - Min 23mm Door Thickness is engineered to deliver precise door alignment and fully concealed installation for cabinetry requiring a clean, uninterrupted appearance. Designed by Sugatsune, a specialist in premium architectural hardware, this hinge offers three-way adjustment capability, enabling accurate positioning during installation and fine-tuning over time.
Designed for doors with a minimum thickness of 23mm, this hinge is suited to heavier or thicker cabinet doors where increased stability is required. Its concealed design ensures the hinge remains hidden when the door is closed, supporting a minimalist and high-end aesthetic. The hinge allows vertical, lateral and depth adjustment, helping installers achieve consistent gaps, smooth operation and professional alignment across multiple doors.
Available in Black, Satin Nickel and Silver finishes, the hinge can be specified to complement a wide range of cabinetry styles and hardware schemes. Manufactured from durable materials, it is designed for long-term performance in both residential and commercial environments.
Product Features
- Three-way adjustment (vertical, lateral and depth)
- Designed for minimum 23mm door thickness
- Concealed hinge design for seamless appearance
- Provides precise door alignment capability
- Available in Black, Satin Nickel and Silver finishes
- Durable construction for long-term reliability
Product Benefits
- Enables accurate and consistent door positioning
- Supports clean, minimalist and premium cabinetry designs
- Reduces installation time through adjustability
- Maintains alignment during long-term use
- Allows coordination with surrounding hardware finishes
- Suitable for residential and commercial interiors
Technical Characteristics
- Designed for concealed installation within cabinet doors
- Requires door thickness of minimum 23mm
- Adjustable in three directions for precise fitting
- Suitable for integration into cabinet carcass and door systems
- Supports consistent gap and reveal alignment
- Engineered for durability and repeated use
Applications
This hinge is suitable for kitchen cabinetry, wardrobes, furniture doors and architectural joinery where concealed hardware and precise alignment are required. It is particularly effective for thicker cabinet doors and applications demanding a clean, uninterrupted exterior, such as high-end fitted furniture, display units and contemporary cabinetry where both aesthetic consistency and reliable performance are essential.
| Sugatsune 3-Way Adjustable Concealed Hinge - Min 23mm Door Thickness - Black | Sugatsune 3-Way Adjustable Concealed Hinge - Min 23mm Door Thickness - Silver | Sugatsune 3-Way Adjustable Concealed Hinge - Min 23mm Door Thickness - Satin Nickel | |
|---|---|---|---|
| Colour | Black | Silver | Satin Nickel |
| Opening angle (°) | 180 | 180 | 180 |
| Application | Inset | Inset | Inset |
| Max Door Width (mm) | 600 | 600 | 600 |
| Door Thickness (mm) | 23 | 23 | - |
| Door Height (mm) | 1500 | 1500 | 1500 |
