3-Way Adjustable Concealed Hinge - Min 29mm Door Thickness
3-WAY ADJUSTABLE CONCEALED HINGE Thin profile (21mm) allows for shallow mortise. Jig (sold separately) makes installation easy. Vertical, horizontal and... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|

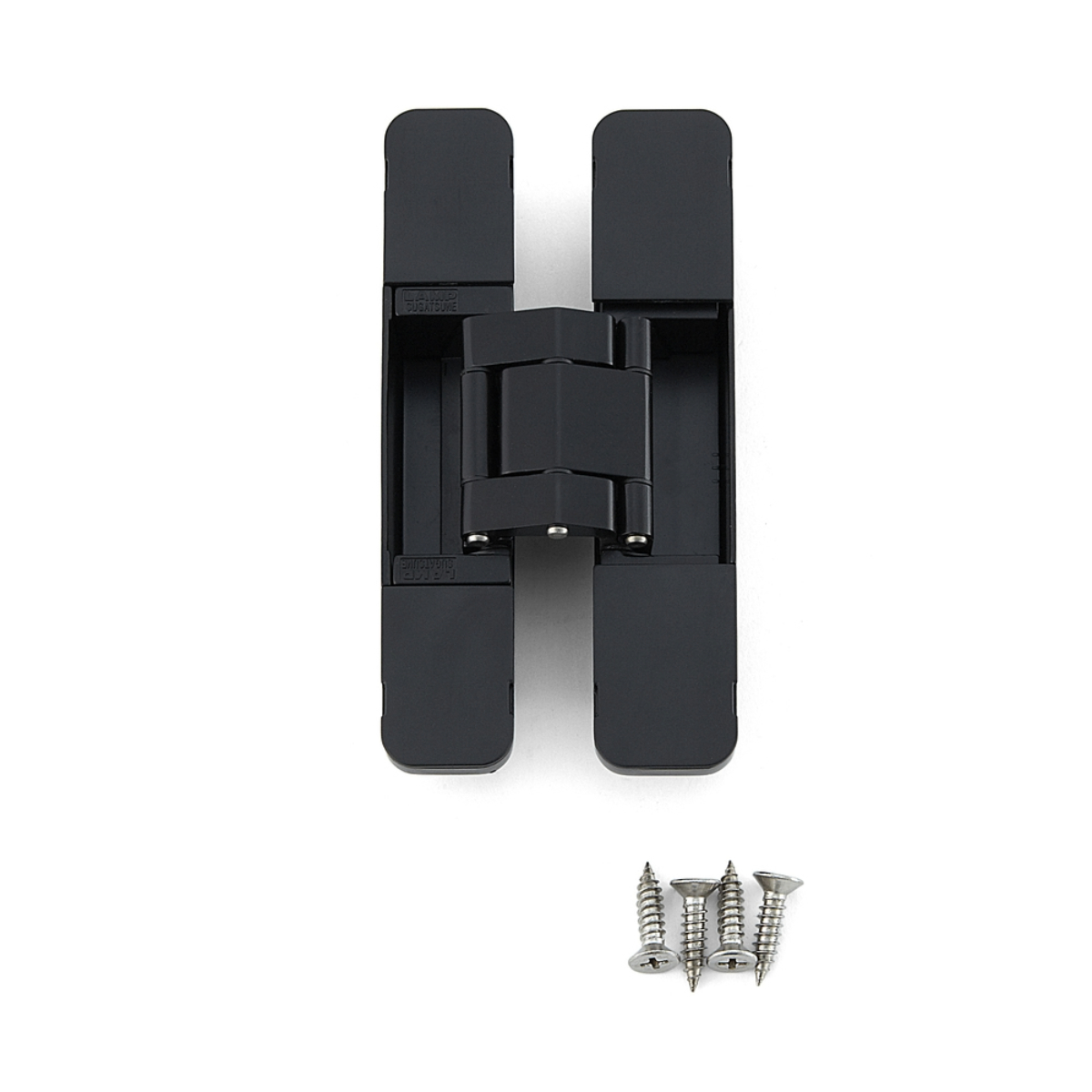

| 3-Way Adjustable Concealed Hinge - Min 29mm Door Thickness - Black | In Stock | HA3D-29BL | Download | £35.84 ex VAT |
|
|

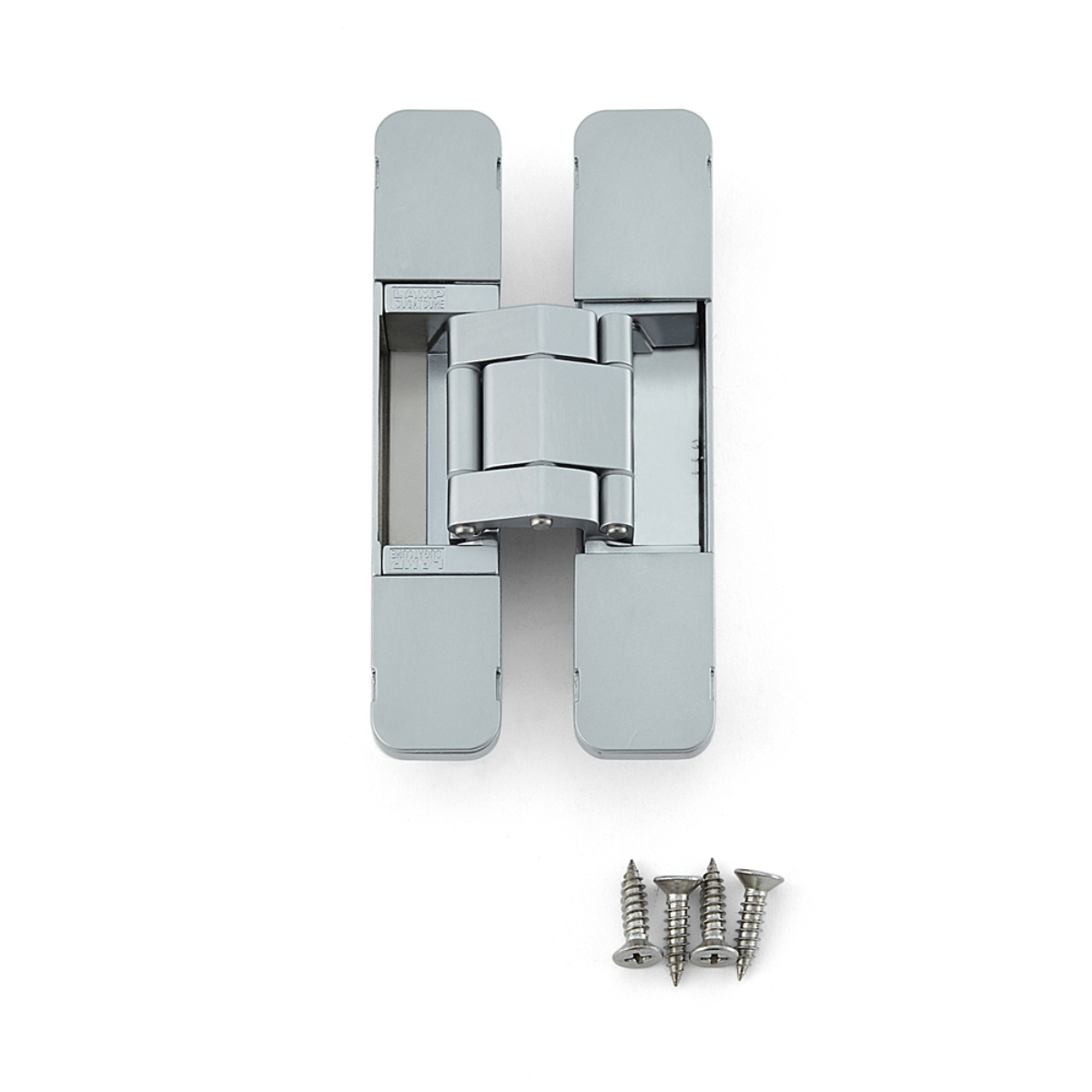

| 3-Way Adjustable Concealed Hinge - Min 29mm Door Thickness - Silver | In Stock | HA3D-29SI | Download | £35.84 ex VAT |
|
|
| 3-Way Adjustable Concealed Hinge - Min 29mm Door Thickness - Satin Nickel | Typically available in 2-3 days. Need it faster? Contact us. | HA3D-29SN | Download | £35.84 ex VAT |
|
Compare 3-Way Adjustable Concealed Hinge - Min 29mm Door Thickness
3-WAY ADJUSTABLE CONCEALED HINGE
Thin profile (21mm) allows for shallow mortise.
Jig (sold separately) makes installation easy.
Vertical, horizontal and depth adjustment possible post-installation (3way).
Passed a 300,000 open/close cycle test in private testing.
Can be split into two parts (one for the frame and one for the flap) making installation easy
Temporary holding feature: can temporarily be hung and hold position without being affixed with screws. This makes installation much easier.
Custom colours available on request. Please contact us for details.
Max door weight: 30kg/2pc, 40kg/3pc
Min. door thickness: 29mm
Max door width: 900mm
Max door height: 2400mm (recommended. Larger doors can be used if the weight is within specification)
| 3-Way Adjustable Concealed Hinge - Min 29mm Door Thickness - Black | 3-Way Adjustable Concealed Hinge - Min 29mm Door Thickness - Silver | 3-Way Adjustable Concealed Hinge - Min 29mm Door Thickness - Satin Nickel | |
|---|---|---|---|
| Colour | Black | Silver | - |
