ANSELMI 3D Concealed Hinge - 110 x 24mm - 60Kg

Compare variant

Select the variant you want to compare

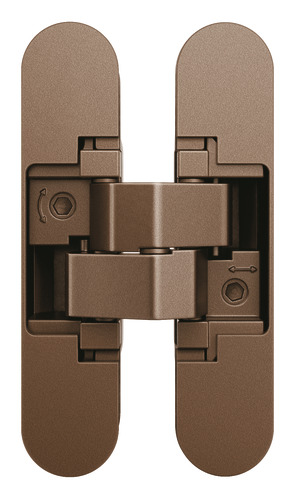

ANSELMI 3D Concealed Hinge - 110 x 24mm - 60Kg - Antique Bronze

£44.01 ex VAT

ANSELMI 3D Concealed Hinge - 110 x 24mm - 60Kg - Satin Chrome

£37.77 ex VAT

Select a variant

Antique Bronze

£44.01 ex VAT

Code: AN-160-3D-035

Satin Chrome

£37.77 ex VAT

Code: AN.160.3D.SC

Total £44.01 ex VAT

Available soon Order now: ready for delivery from Tue 3rd November 2026

ANSELMI 3D Concealed Hinge - 110 x 24mm - 60Kg - Antique Bronze added to the basket

Have you forgotten anything?

The ANSELMI 3D Adjustable Concealed Hinge is a compact, completely concealed hinge system designed for unrebated residential doors. Measuring 110 x 24mm and providing a load capacity of up to 60kg, it offers a discreet and practical solution for contemporary residential door installations where a clean, minimalist appearance is required.

Suitable for use with timber and aluminium frames, the hinge provides convenient 3D adjustment for accurate door positioning after installation. Adjustment includes side +/- 1.5mm, height +/- 2.5mm and compression +/- 1.0mm, allowing precise alignment while maintaining the appearance of a completely concealed hinge system.

Manufactured from Zamak, the hinge combines compact dimensions with reliable performance and provides an opening angle of up to 180°. It carries CE, IFT and UL certification and is classified according to EN 1935 / EAD. The stated 60kg load capacity is based on the use of 2 hinges per 900 x 2100mm door leaf.


Product Features

  • Completely concealed hinge system
  • 110 x 24mm hinge dimensions
  • Load capacity up to 60kg
  • Designed for unrebated residential doors
  • Suitable for timber and aluminium frames
  • Provides convenient 3D adjustment
  • Side adjustment: +/- 1.5mm
  • Height adjustment: +/- 2.5mm
  • Compression adjustment: +/- 1.0mm
  • Manufactured from Zamak
  • Provides an opening angle up to 180°
  • CE certified
  • IFT certified
  • UL certified

Product Benefits

  • Completely concealed installation creates a clean and minimalist appearance when the door is closed
  • 3D adjustment enables precise side, height and compression alignment after installation
  • Up to 60kg load capacity provides dependable support for suitable residential doors
  • Compatible with timber and aluminium frames for greater installation versatility
  • Designed specifically for unrebated residential doors
  • 180° opening angle provides excellent door opening capability where the installation permits
  • CE, IFT and UL certification provides documented product performance credentials

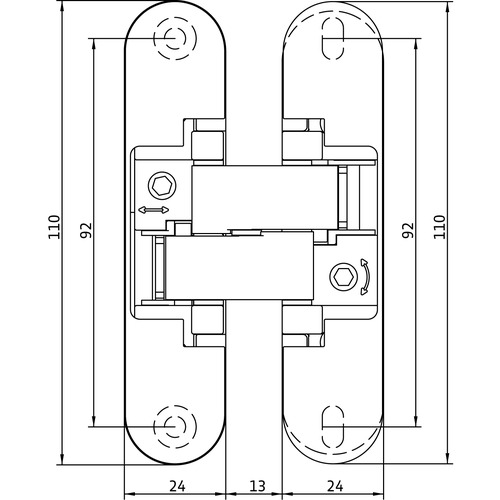

Technical Characteristics

  • Product Type: 3D Adjustable Concealed Hinge
  • Material: Zamak
  • Overall Length: 110mm
  • Door Part Width: 24mm
  • Frame Part Width: 24mm
  • Load Capacity: Up to 60kg
  • Door Type: Unrebated Residential Doors
  • Frame Compatibility: Timber & Aluminium
  • Side Adjustment: +/- 1.5mm
  • Height Adjustment: +/- 2.5mm
  • Compression Adjustment: +/- 1.0mm
  • Minimum Door Thickness: 32mm
  • Cutter Diameter: 16mm
  • Collar Ring Diameter: 27mm
  • Opening Angle: 180°
  • Certification: CE, IFT & UL
  • Classification Standard: EN 1935 / EAD
  • Classification Code: 2 7 3 1* 1 1 — * 0 10
  • Load Capacity Basis: 2 Hinges Per 900 x 2100mm Door Leaf

Applications

The ANSELMI 3D Adjustable Concealed Hinge is designed for unrebated residential doors installed into compatible timber or aluminium frames. Its combination of a completely concealed design, precise 3D adjustment, 180° opening angle and up to 60kg load capacity makes it particularly suitable for contemporary residential interiors where accurate door alignment, discreet installation and a clean architectural appearance are required.

ANSELMI 3D Concealed Hinge - 110 x 24mm - 60Kg - Antique Bronze ANSELMI 3D Concealed Hinge - 110 x 24mm - 60Kg - Satin Chrome
Finish Antique Bronze Satin Chrome
Opening angle (°) 180 180
Load Capacity (kg) 60 60
Width Door Part (mm) 24 24
Width Frame Part (mm) 24 24
Cutter diameter (mm) 16 16
Collar ring diameter (mm) 27 27
Min Door Thickness (mm) 32 32
Overall Length (mm) 110 110
Certification CE, IFT & UL CE, IFT & UL
Download Specification
