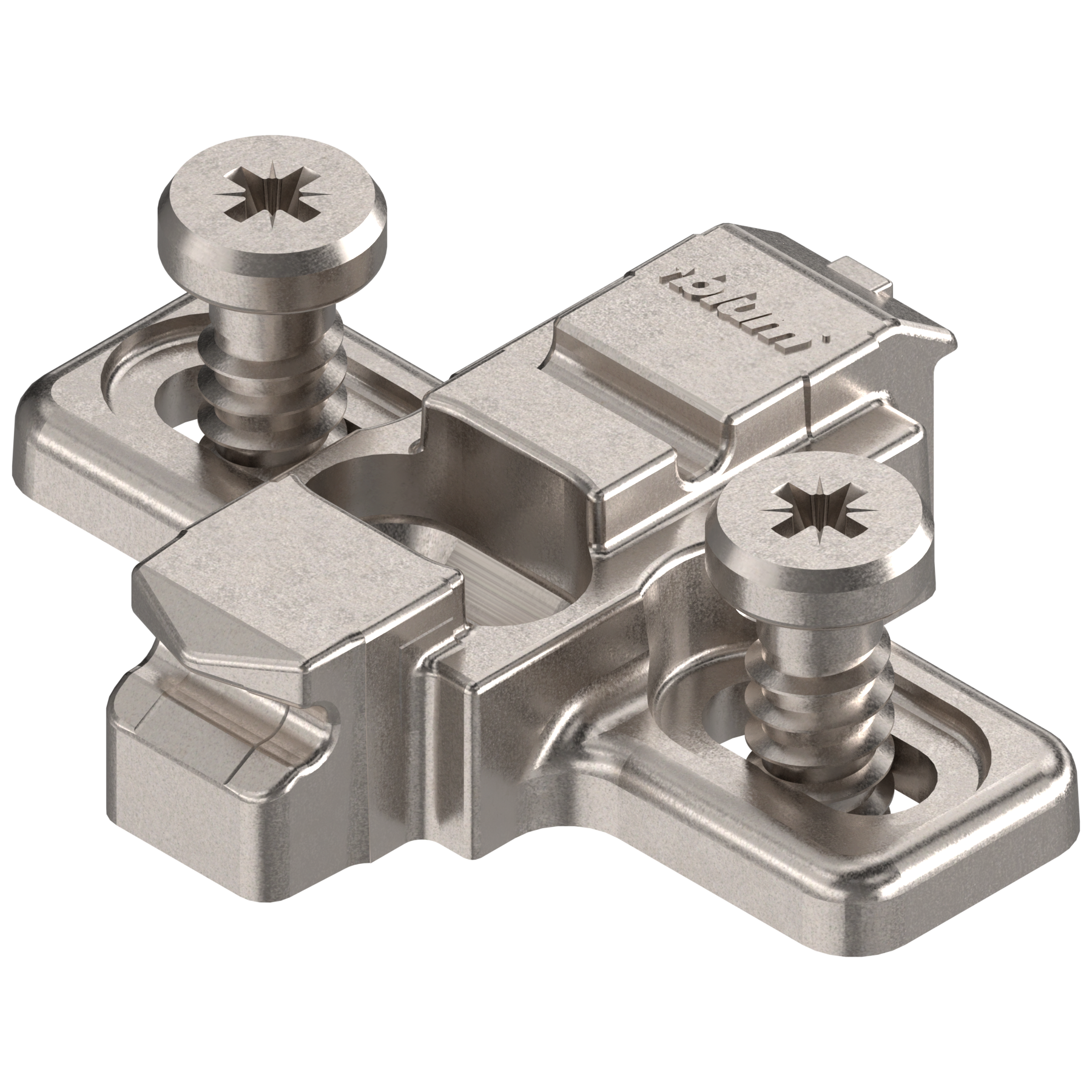

Blum Clip Top Mounting Plate - Cruciform Cam Adjustable with Pre Mounted Screws - Nickel
Blum Clip Top Mounting Plate - Cruciform Cam Adjustable with Pre Mounted Screws - Nickel is designed to provide secure... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Mounting Plate - Cruciform Cam Adjustable with Pre Mounted Screws - Nickel - 9mm | In Stock | 175L8190 | Download | £0.95 ex VAT |
|
Compare Blum Clip Top Mounting Plate - Cruciform Cam Adjustable with Pre Mounted Screws - Nickel
Blum Clip Top Mounting Plate - Cruciform Cam Adjustable with Pre Mounted Screws - Nickel is designed to provide secure and accurately aligned hinge fixing within the Blum CLIP top system. Engineered for seamless integration with compatible CLIP top hinges, this mounting plate ensures stable attachment and precise door positioning across a wide range of cabinet constructions. Manufactured from durable steel with a protective nickel-plated finish, it delivers dependable performance in residential and light commercial cabinetry.
The cruciform mounting plate configuration provides reliable screw positioning and strong mechanical retention to the cabinet side panel. The screw-on design ensures secure fixing when installed into correctly prepared cabinet sides, supporting consistent hinge stability and long-term durability. The selectable plate height configuration forms part of the hinge offset calculation and determines the final door position and overlay. Selecting the appropriate height allows accurate alignment and consistent reveals when paired with the correct hinge specification.
Designed for use with Blum CLIP top hinges, the plate supports tool-free hinge attachment and removal. This enables efficient installation and straightforward adjustment while maintaining secure engagement within the hinge system.
Product Features
-
Designed for Blum CLIP top hinge systems
-
Cruciform mounting plate configuration
-
Screw-on fixing
-
Selectable plate height configuration
-
Durable nickel-plated steel finish
-
Compatible with tool-free CLIP top hinge attachment
-
Engineered for stable cabinet side panel fixing
Product Benefits
-
Ensures secure and stable hinge mounting
-
Supports accurate door positioning and consistent reveals
-
Allows correct overlay calculation through height selection
-
Provides dependable mechanical retention
-
Integrates seamlessly within the Blum hinge platform
-
Suitable for residential and light commercial cabinetry
Technical Characteristics
-
Plate height determines hinge offset and final door position
-
Screw-on fixing requires accurate cabinet side preparation
-
Designed for use with compatible Blum CLIP top hinges
-
Steel construction with protective nickel finish
-
Correct hinge and plate pairing ensures optimal door performance
Applications
This mounting plate is intended for cabinet installations requiring secure screw-on fixing within the Blum CLIP top hinge system. The selectable height configuration makes it suitable for overlay constructions where precise hinge offset is essential to achieve correct door alignment. It is commonly specified in kitchens, bedrooms, storage units and fitted furniture projects where durability, installation reliability and consistent door alignment are essential.
| Blum Clip Top Mounting Plate - Cruciform Cam Adjustable with Pre Mounted Screws - Nickel - 9mm | |
|---|---|
| Finish | Nickel |
| Mounting Plate Height (mm) | 9 |
| Mounting Plate Type | Cruciform |
| Fixing Type | Screw-on |
