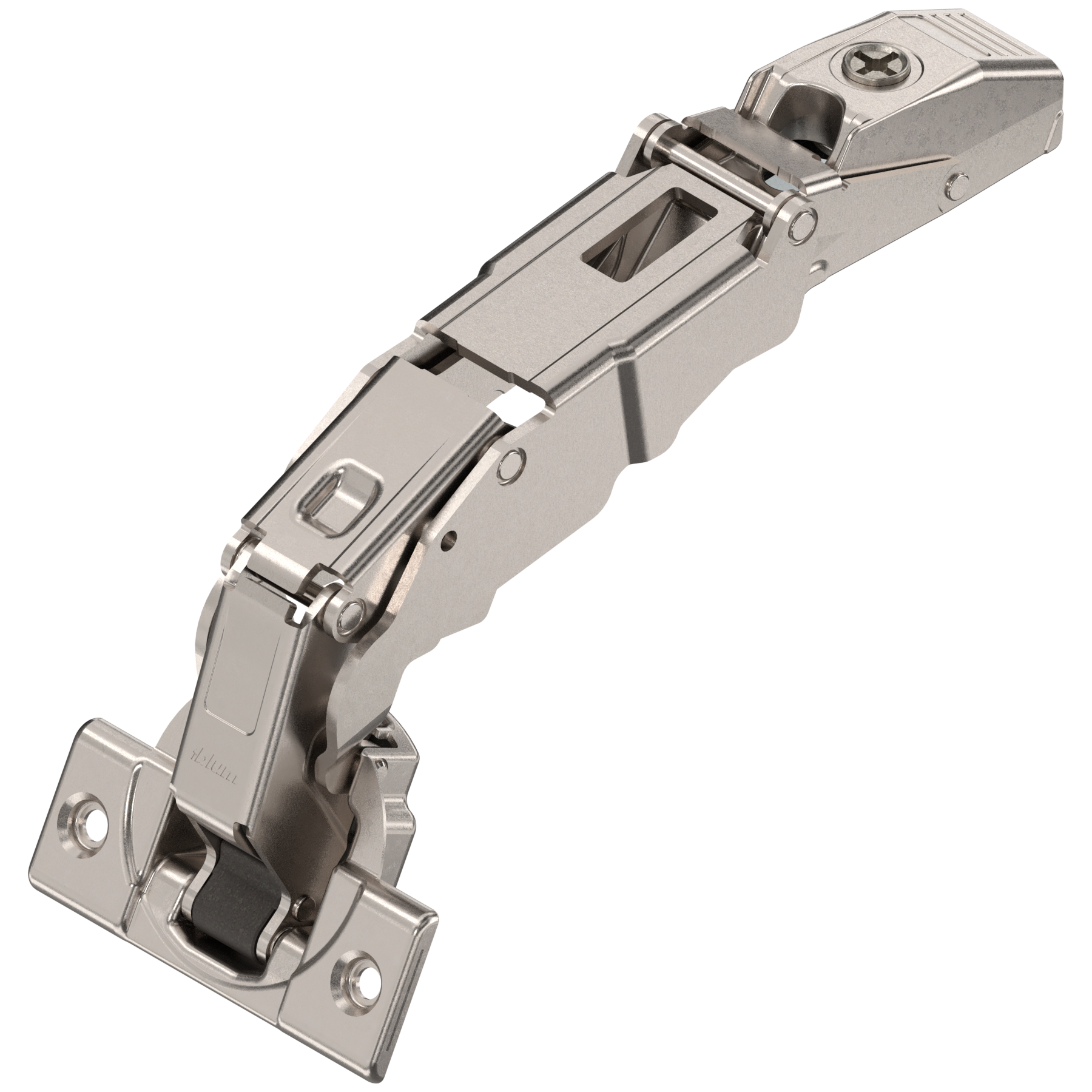

Blum Clip Top Hinge - 155° Nil Protrusion - Overlay Sprung - Nickel
Blum CLIP top - 155° Overlay Sprung Hinge - Nickel is designed to deliver extended opening access and reliable self-closing... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Hinge - 155° Nil Protrusion - Overlay Sprung - Nickel - Screw-on | In Stock | 71T7500N-NI | Download | £3.18 ex VAT |
|
|
| Blum Clip Top Hinge - 155° Nil Protrusion - Overlay Sprung - Nickel - Inserta | In Stock | 71T7540N01 | Download | £3.90 ex VAT |
|
|
| Blum Clip Top Hinge - 155° Nil Protrusion - Overlay Sprung - Nickel - Screw-on | Typically available in 2-3 days. Need it faster? Contact us. | 71T7550 | Download | £3.78 ex VAT |
|
Compare Blum Clip Top Hinge - 155° Nil Protrusion - Overlay Sprung - Nickel
Blum CLIP top - 155° Overlay Sprung Hinge - Nickel is designed to deliver extended opening access and reliable self-closing performance in overlay cabinet applications. Featuring an integrated sprung mechanism, the hinge provides controlled and consistent closing action without additional components. The wide 155° opening angle improves accessibility to cabinet interiors, making it particularly suitable for installations where greater door clearance is required.
Designed for overlay cabinet doors, the final overlay dimension is determined by mounting plate selection, allowing flexibility across a range of cabinet constructions. As part of the Blum CLIP top system, the hinge clips securely onto compatible mounting plates using a tool-free attachment method, enabling efficient installation and simplified adjustment. Three-dimensional adjustment allows precise vertical, lateral and depth positioning to achieve accurate alignment and consistent door gaps.
This hinge is available in both Screw-on and Inserta boss fixing configurations, providing flexibility across different installation methods and production environments. The Screw-on version offers traditional mechanical retention within the hinge cup, while the Inserta version incorporates integrated expansion dowels for rapid installation into pre-drilled cup holes. Both options are engineered to ensure secure anchoring and long-term durability. Manufactured from durable nickel-plated steel, the hinge offers a clean and neutral finish suitable for a wide variety of cabinetry styles while maintaining compatibility within the Blum hinge platform.
Product Features
-
155° wide opening angle for enhanced cabinet access
-
Integrated sprung mechanism for self-closing action
-
Designed for overlay door applications
-
Available in Screw-on and Inserta boss fixing options
-
Durable nickel-plated steel finish
-
Compatible with Blum CLIP top mounting plates
-
Tool-free clip-on hinge assembly
-
Three-dimensional adjustment capability
Product Benefits
-
Provides improved interior access compared to standard hinge angles
-
Delivers reliable and consistent self-closing performance
-
Supports clean overlay cabinet aesthetics
-
Offers installation flexibility for different production requirements
-
Enables precise alignment and even door gaps
-
Suitable for residential and light commercial interiors
Technical Characteristics
-
Requires compatible Blum CLIP top mounting plates
-
Screw-on version requires correct hinge cup drilling preparation
-
Inserta version uses integrated expansion dowels for rapid fitting
-
Adjustable vertically, laterally and in depth
-
Designed for integration within Blum cabinet systems
-
Suitable for overlay cabinet constructions requiring increased opening
Applications
This hinge is intended for overlay cabinet door installations where extended opening access is required. The 155° opening angle allows improved reach into storage areas, making it suitable for kitchens, storage units and fitted furniture. The integrated sprung mechanism combined with either Screw-on or Inserta fixing options ensures dependable closing performance and secure installation in residential and light commercial joinery projects requiring durability and precise alignment.
| Blum Clip Top Hinge - 155° Nil Protrusion - Overlay Sprung - Nickel - Screw-on | Blum Clip Top Hinge - 155° Nil Protrusion - Overlay Sprung - Nickel - Inserta | Blum Clip Top Hinge - 155° Nil Protrusion - Overlay Sprung - Nickel - Screw-on | |
|---|---|---|---|
| Finish | Nickel | Nickel | Nickel |
| Opening angle (°) | 155 | 155 | 155 |
| Application | Overlay | Overlay | Overlay |
| Boss | Screw-on | Inserta | Screw-on |
| Closing Mechanism | Sprung | Sprung | Sprung |
| Boss Drilling Depth (mm) | - | - | 11.7 |
| Max Door Thickness (mm) | - | - | 31 |
| Type | - | - | Wide Angled |
