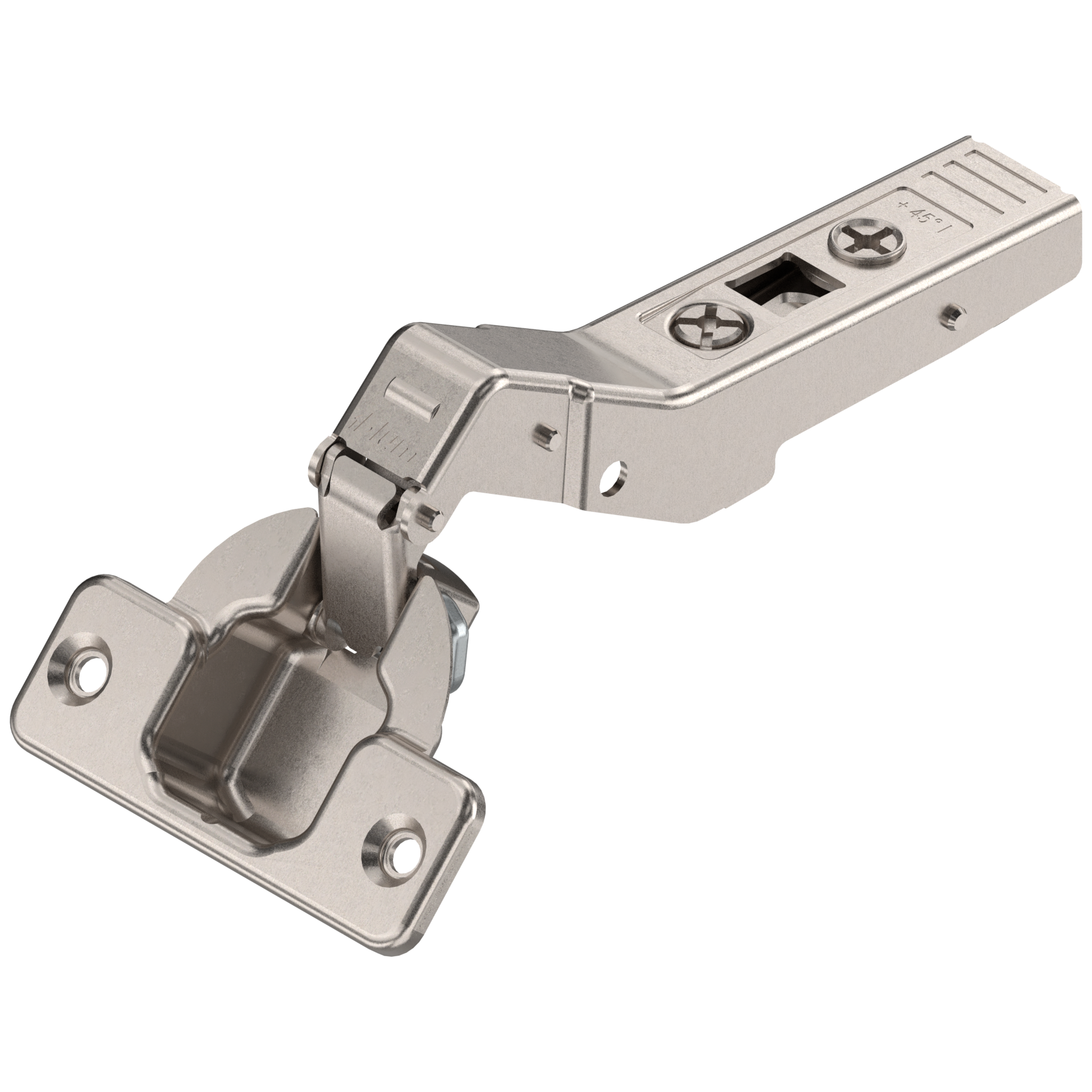

Blum Clip Top Hinge - 45° Half Overlay Unsprung - Nickel
Blum CLIP top Hinge - 45° Half Overlay Unsprung - Nickel is designed for cabinet doors installed on angled cabinet... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Hinge - 45° Half Overlay Unsprung - Nickel - Screw-on | In Stock | 78A9658.T | Download | £2.28 ex VAT |
|
Compare Blum Clip Top Hinge - 45° Half Overlay Unsprung - Nickel
Blum CLIP top Hinge - 45° Half Overlay Unsprung - Nickel is designed for cabinet doors installed on angled cabinet constructions where specialised hinge geometry is required to achieve correct door positioning. Manufactured by Blum, a recognised specialist in precision cabinet hardware, this hinge forms part of the reliable CLIP top hinge system, combining engineered performance with efficient installation and adjustment. The unsprung hinge mechanism allows free door movement, making it suitable for installations where self-closing action is not required or where external closing systems are used.
The hinge features a 45° hinge geometry, enabling installation on angled cabinet layouts commonly found in corner cabinets and bespoke furniture designs. Designed for half overlay cabinet door applications, the hinge allows two cabinet doors to share a central cabinet panel while maintaining consistent door alignment and reveals. The hinge clips securely onto compatible Blum mounting plates using the tool-free CLIP top attachment system, enabling quick installation and straightforward removal when adjustment or maintenance is required.
Manufactured from steel with a durable nickel-plated finish, the hinge provides corrosion resistance and a neutral appearance suitable for most cabinet interiors. The hinge cup is compatible with different boss fixing types depending on the selected variant, allowing flexibility during installation depending on cabinet material, drilling preparation and manufacturing requirements.
Product Features
- 45° hinge geometry for angled cabinet installations
- Unsprung hinge mechanism allowing free door movement
- Designed for half overlay cabinet door applications
- Compatible with multiple boss fixing types depending on variant
- Durable nickel-plated steel construction
- Tool-free CLIP top hinge attachment
- Three-dimensional adjustment capability
Product Benefits
- Allows installation on angled cabinet layouts
- Supports cabinet configurations requiring 45° door positioning
- Provides installation flexibility through different boss fixing options
- Enables accurate door alignment and consistent gaps
- Compatible with push-to-open or external closing systems
- Suitable for residential and light commercial cabinetry
Technical Characteristics
- Requires compatible Blum CLIP top mounting plates
- Supports different boss fixing types depending on variant
- Adjustable vertically, laterally and in depth
- Steel hinge construction with nickel-plated protective finish
- Designed for integration within Blum cabinet hardware systems
- Correct hinge and mounting plate pairing ensures proper hinge performance
Applications
This hinge is suitable for half overlay cabinet doors installed on angled cabinet constructions, commonly used in corner cabinets, diagonal cabinet layouts and bespoke furniture installations. The 45° hinge geometry enables accurate door positioning within angled cabinet designs while maintaining smooth hinge movement. Compatibility with different boss fixing types depending on variant allows installation across a wide range of cabinet materials and manufacturing methods.
| Blum Clip Top Hinge - 45° Half Overlay Unsprung - Nickel - Screw-on | |
|---|---|
| Finish | Nickel |
| Opening angle (°) | 45 |
| Application | Overlay |
| Boss | Screw-on |
| Closing Mechanism | Unsprung |
