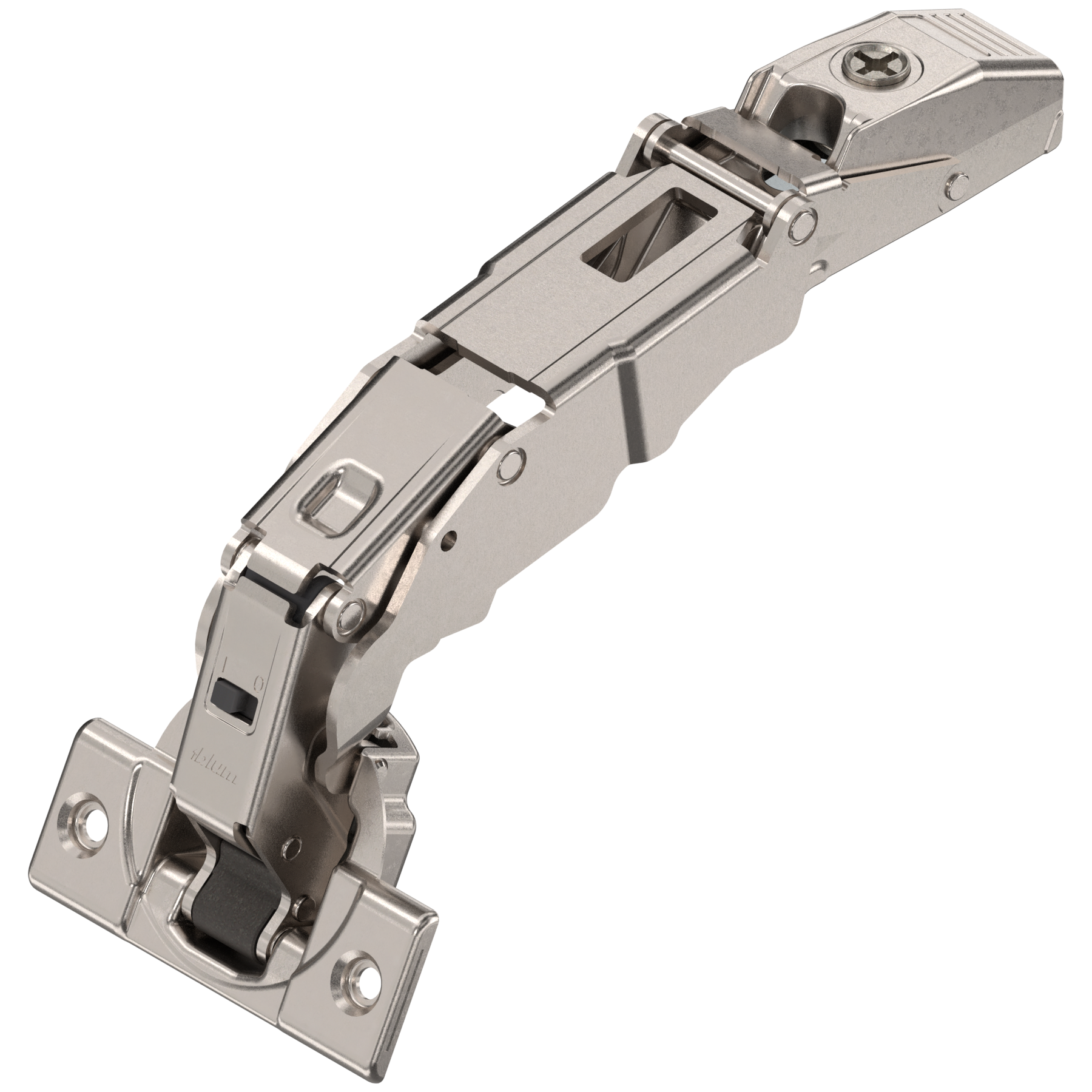

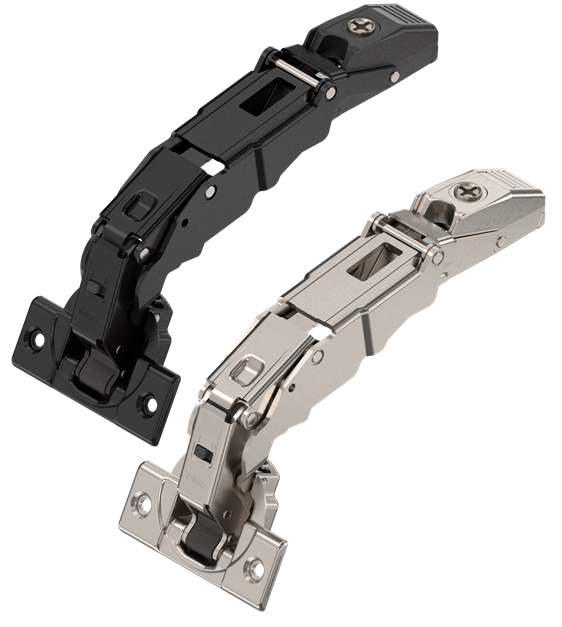

Blum Clip Top Hinge - 155° Nil Protrusion Overlay BLUMOTION Sprung - Nickel
Blum CLIP top Hinge - 155° Overlay BLUMOTION Sprung - Nickel is designed to provide wide-angle access and controlled, silent... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Hinge - 155° Nil Protrusion Overlay BLUMOTION Sprung - Nickel - Screw-on | In Stock | 71B7550-NI | Download | £4.99 ex VAT |
|
|
| Blum Clip Top Hinge - 155° Nil Protrusion Overlay BLUMOTION Sprung - Nickel - Inserta | In Stock | 71B7590-NI | Download | £6.49 ex VAT |
|
Compare Blum Clip Top Hinge - 155° Nil Protrusion Overlay BLUMOTION Sprung - Nickel
Blum CLIP top Hinge - 155° Overlay BLUMOTION Sprung - Nickel is designed to provide wide-angle access and controlled, silent closing performance in full overlay cabinet applications. As part of the Blum CLIP top system, this hinge integrates BLUMOTION soft-close technology within the hinge arm, ensuring smooth and damped closing without the need for additional components. Manufactured from precision-formed steel, it delivers long-term durability and consistent performance in both residential and light commercial cabinetry.
The wide 155° opening angle allows cabinet doors to open significantly beyond standard hinges, improving visibility and accessibility to internal storage areas. Designed for full overlay doors, the hinge enables the door to fully cover the cabinet side panel, supporting clean exterior lines and uninterrupted cabinet design. The hinge clips securely onto compatible Blum CLIP top mounting plates using a tool-free attachment system, enabling efficient installation and simplified adjustment.
This hinge is available in both Screw-on Boss and Inserta Boss configurations. The Screw-on Boss option provides traditional mechanical retention within the hinge cup, while the Inserta Boss system uses integrated expansion dowels for faster, tool-efficient installation. Finished in durable nickel, the hinge integrates seamlessly into a wide range of cabinet interiors while maintaining compatibility within the Blum hinge platform.
Product Features
- Integrated BLUMOTION soft-close mechanism
- 155° wide opening angle for enhanced cabinet access
- Designed for full overlay door applications
- Integrated sprung hinge mechanism
- Available in Screw-on Boss and Inserta Boss options
- Durable nickel-plated steel construction
- Tool-free CLIP top hinge attachment
- Three-dimensional adjustment capability
Product Benefits
- Delivers smooth and silent door closing
- Improves access to cabinet interiors
- Supports clean full overlay cabinet aesthetics
- Offers installation flexibility across production methods
- Maintains precise alignment and consistent door gaps
- Suitable for kitchens, storage units and fitted furniture
Technical Characteristics

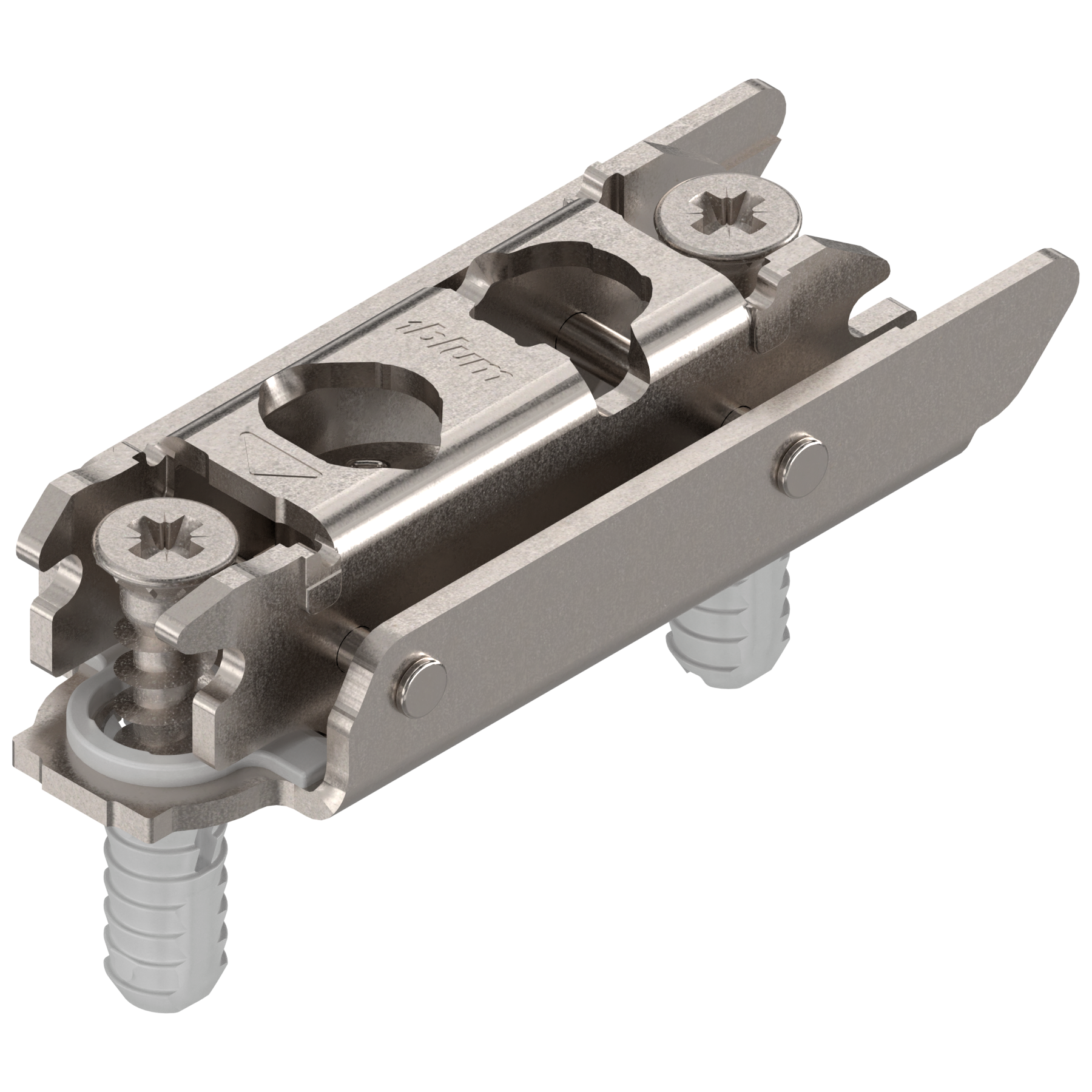

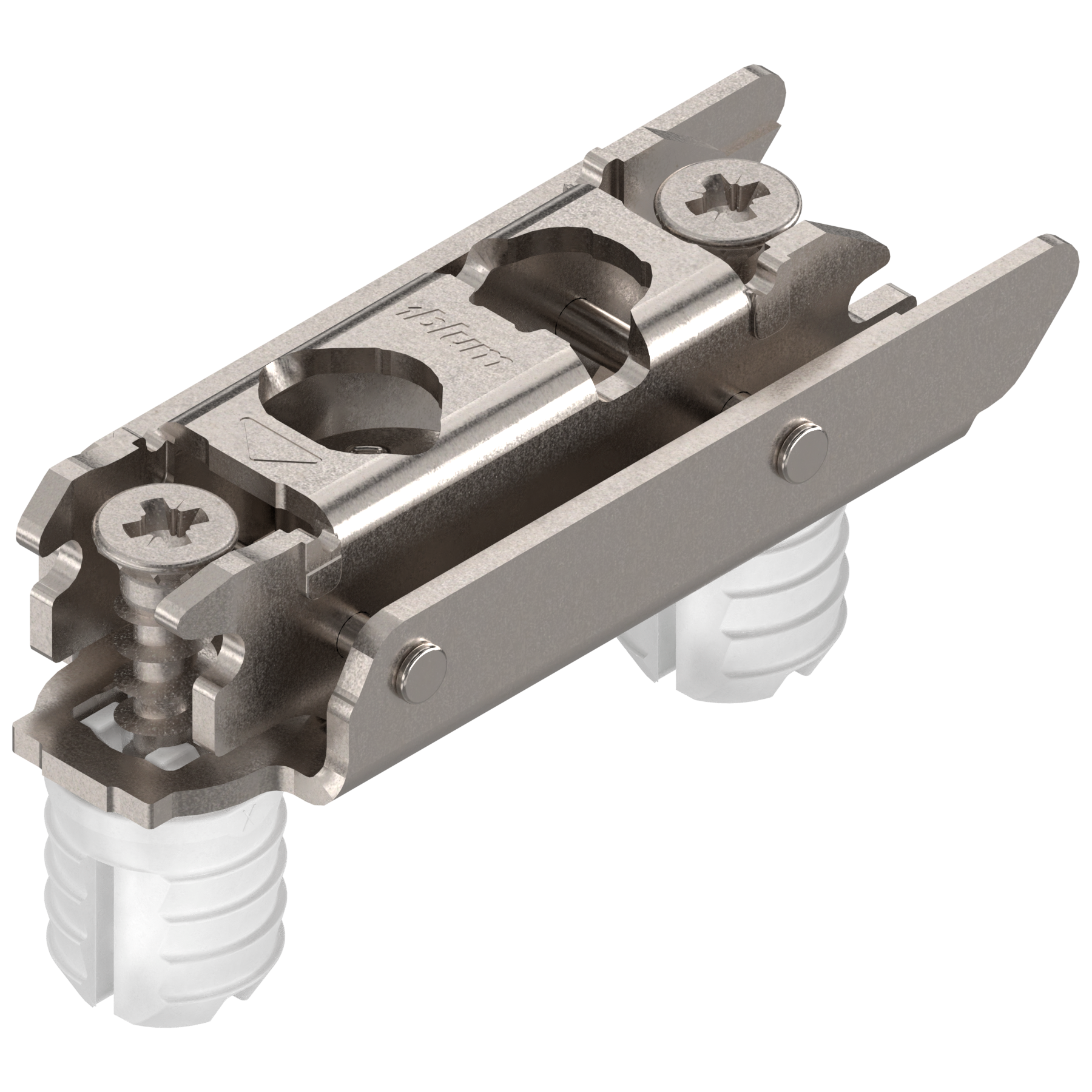

- Requires compatible Blum CLIP top mounting plates
- Screw-on Boss and Inserta Boss require accurate hinge cup drilling
- Adjustable vertically, laterally and in depth
- Designed for integration within Blum cabinet systems
- Suitable for wide-angle full overlay constructions
- Correct hinge and mounting plate pairing ensures optimal performance
Applications
This hinge is intended for full overlay cabinet door installations where extended opening angles are required. The 155° opening angle makes it particularly suitable for corner cabinets, deep storage units and applications requiring improved access. The integrated BLUMOTION mechanism ensures controlled and quiet operation, while the availability of Screw-on and Inserta Boss options provides flexibility for both bespoke joinery and volume cabinet manufacturing.
| Blum Clip Top Hinge - 155° Nil Protrusion Overlay BLUMOTION Sprung - Nickel - Screw-on | Blum Clip Top Hinge - 155° Nil Protrusion Overlay BLUMOTION Sprung - Nickel - Inserta | |
|---|---|---|
| Finish | Nickel | Nickel |
| Opening angle (°) | 155 | 155 |
| Application | Overlay | Overlay |
| Boss | Screw-on | Inserta |
| Closing Mechanism | Soft Close | Soft Close |
| Boss Drilling Depth (mm) | 11.7 | 11.7 |
| Max Door Thickness (mm) | 31 | 31 |
| Type | Wide Angled | Wide Angled |
