Name: Blum Clip Top Mounting Plate - Cruciform Cam Adjustable - Nickel
Brand: Blum
SKU: P-173H7100

Blum Clip Top Mounting Plate - Cruciform Cam Adjustable - Nickel

Blum CLIP top Mounting Plate - Cruciform Cam Adjustable - Nickel - 0mm is designed to provide a secure and... More info

Total £0.42 ex VAT

In Stock

Product name

Variant code

Data sheet

Price

Quantity

Blum Clip Top Mounting Plate - Cruciform Cam Adjustable - Nickel - 0mm

In Stock

173H7100-NI

Download

£0.42 ex VAT

Blum Clip Top Mounting Plate - Cruciform Cam Adjustable - Nickel - 3mm

In Stock

173H7130-NI

Download

£0.49 ex VAT

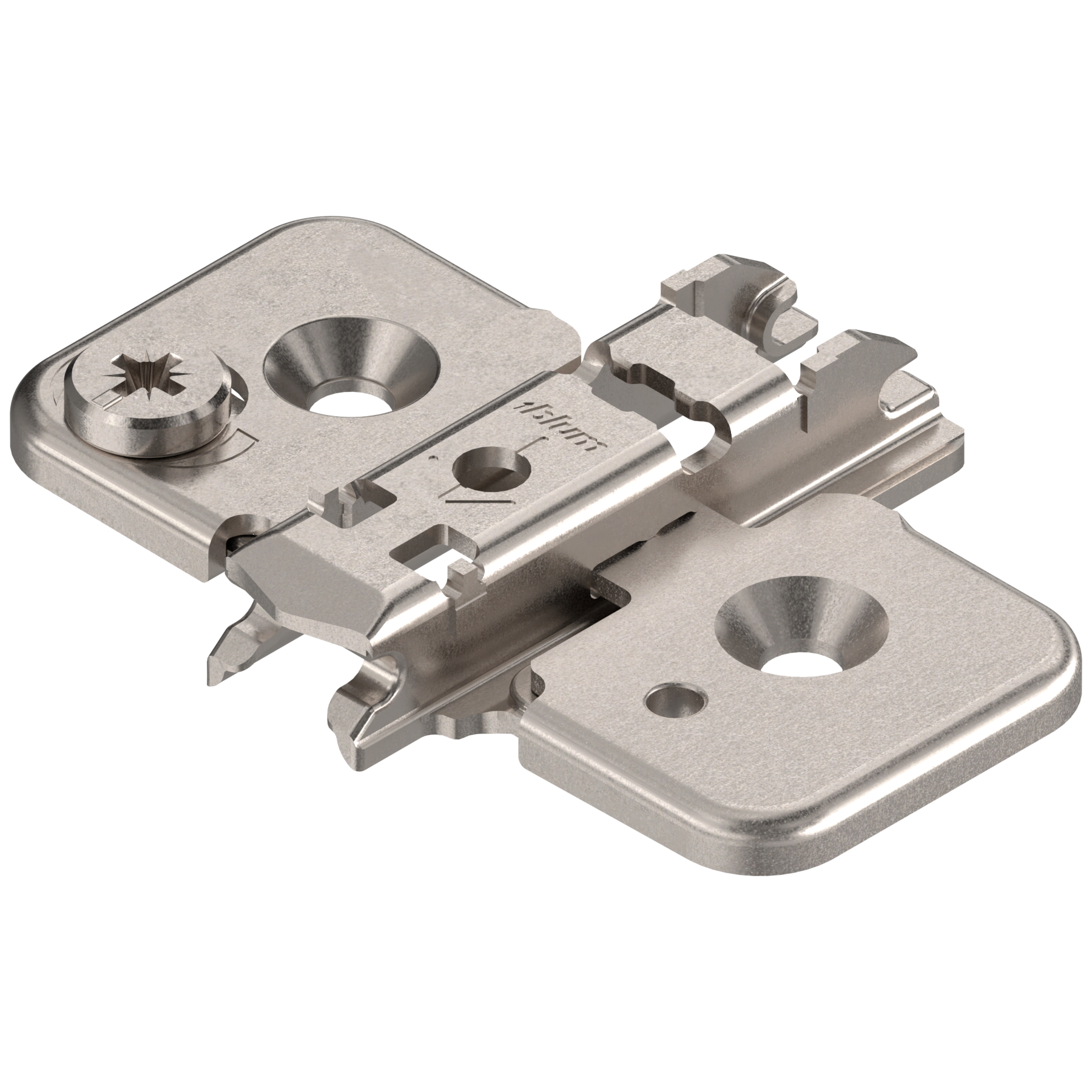

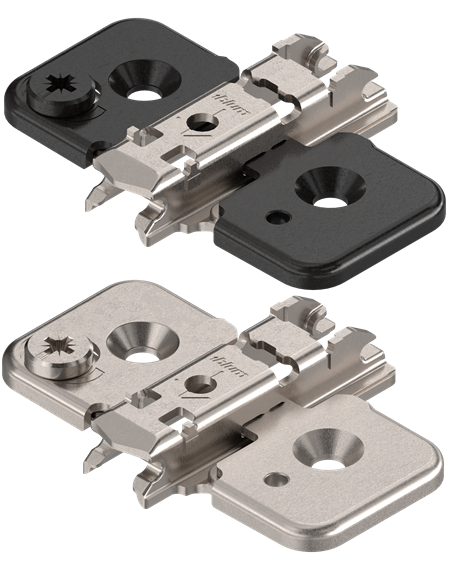

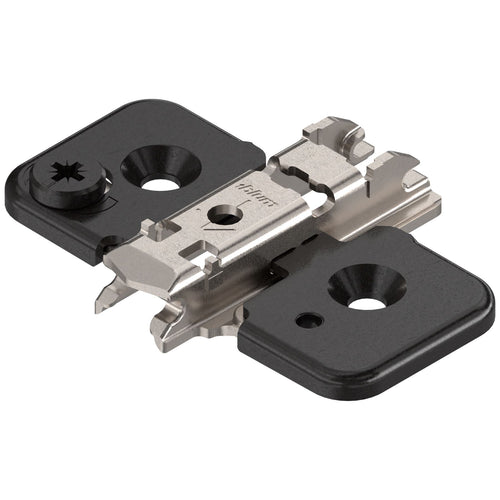

Blum CLIP top Mounting Plate - Cruciform Cam Adjustable - Nickel - 0mm is designed to provide a secure and precisely adjustable fixing point for Blum CLIP top hinge systems in cabinet installations. Engineered with a cruciform design, this mounting plate ensures stable hinge attachment while enabling accurate vertical door alignment through integrated cam height adjustment.

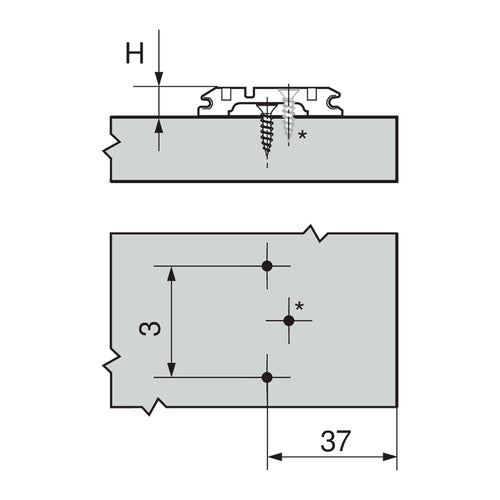

The 0mm plate height allows the hinge arm to sit flush to the cabinet side panel, making it suitable for applications where minimal stand-off is required to achieve the desired door overlay or inset configuration. The integrated cam adjustment mechanism enables fine vertical tuning after installation, ensuring consistent gaps and precise alignment across single or multi-door cabinets.

The Screw-On fixing method provides dependable mechanical retention directly into the cabinet panel, supporting secure installation in standard carcass materials. Manufactured from durable nickel-plated steel, the mounting plate offers long-term stability and full compatibility within the Blum CLIP top hinge platform.

Product Features

Cruciform mounting plate design
Integrated cam height adjustment
0mm plate height
Screw-On fixing
Durable nickel-plated steel construction
Compatible with Blum CLIP top hinge systems
Tool-free hinge clipping

Product Benefits

Enables precise vertical door alignment
Provides secure hinge support within cabinet construction
Supports accurate overlay or inset configuration
Allows post-installation fine adjustment
Ensures reliable long-term hinge performance
Suitable for residential and light commercial cabinetry

Technical Characteristics

Designed for use with Blum CLIP top hinge arms
Screw-On fixing requires appropriate pilot drilling
0mm plate height influences final door positioning
Integrated cam provides vertical adjustment capability
Suitable for standard cabinet side panel constructions
Compatible with Blum’s modular hinge mounting system

Applications

This mounting plate is intended for cabinet installations requiring accurate hinge positioning and reliable adjustment capability. The cruciform cam adjustable design supports precise door alignment in kitchens, fitted furniture and bespoke joinery projects. The 0mm height configuration provides minimal stand-off positioning, while the Screw-On fixing ensures secure and stable installation within standard cabinet carcass materials.
