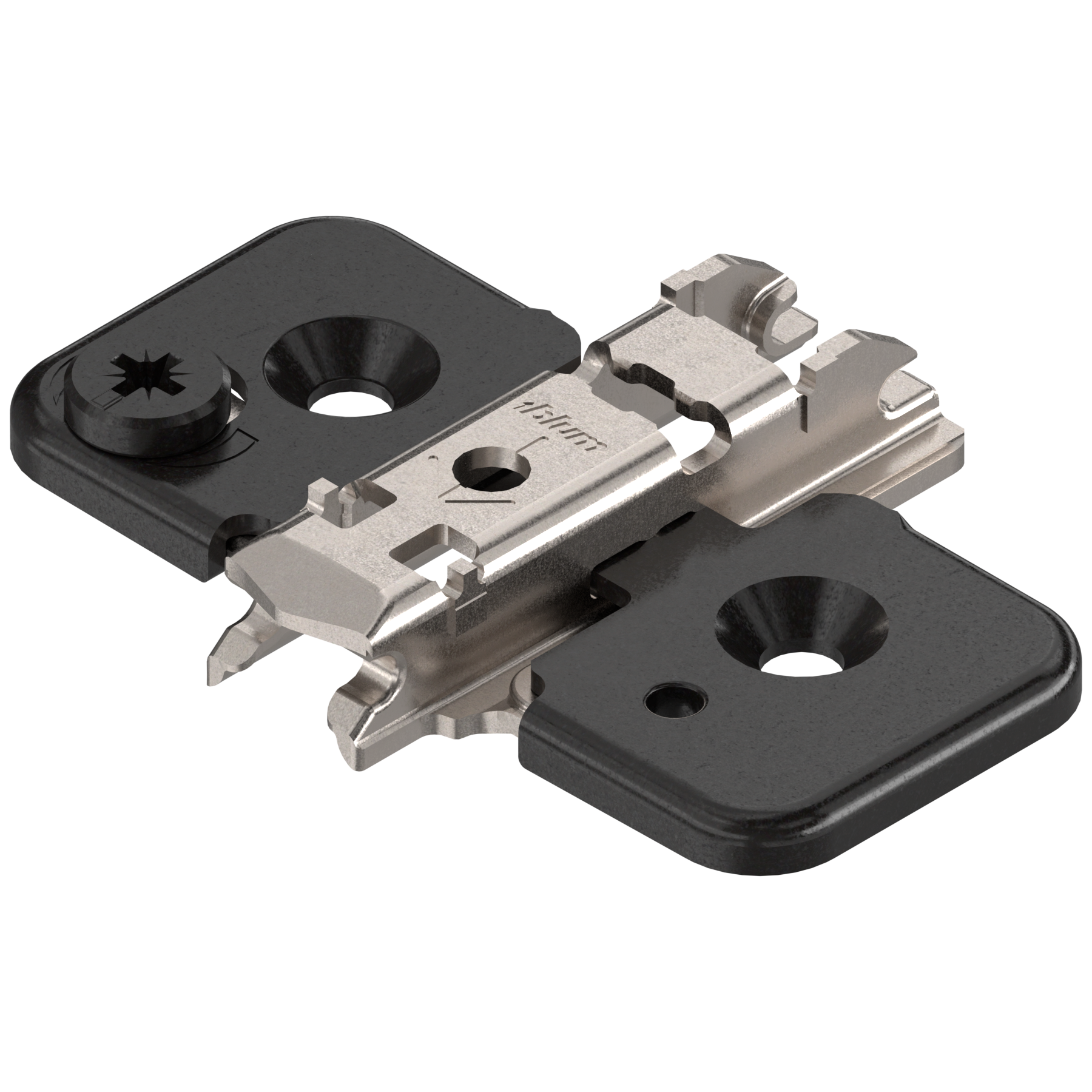

Blum Clip Top Mounting Plate - Cruciform Cam Adjustable - Onyx Black
Blum Clip Top Mounting Plate - Cruciform Cam Adjustable - Onyx Black is designed to provide a secure and precisely... More info
Compare Blum Clip Top Mounting Plate - Cruciform Cam Adjustable - Onyx Black
Blum Clip Top Mounting Plate - Cruciform Cam Adjustable - Onyx Black is designed to provide a secure and precisely aligned fixing point for Blum CLIP top hinge systems. Engineered for durability and installation accuracy, this mounting plate ensures stable hinge attachment while supporting consistent cabinet door alignment across a wide range of furniture applications.
The cruciform design allows secure screw fixing to the cabinet side panel while maintaining accurate positioning. Its height-adjustable construction enables fine vertical correction during installation, helping achieve clean reveals and consistent door gaps. Available in multiple height configurations, including 0mm and 3mm, the plate allows the correct hinge offset to be selected according to cabinet design and overlay calculation.
Manufactured from steel with a durable Onyx Black finish, the mounting plate integrates seamlessly within the Blum hinge platform and supports contemporary cabinetry schemes requiring coordinated dark hardware.
Product Features
- Designed for Blum CLIP top hinge systems
- Cruciform mounting plate configuration
- Available in 0mm and 3mm height options
- Height-adjustable for precise alignment
- Durable Onyx Black coated steel construction
- Secure screw fixing to cabinet side panel
- Compatible with tool-free CLIP top hinge attachment
Product Benefits
- Enables accurate hinge positioning
- Supports consistent door alignment and reveals
- Provides flexibility across cabinet constructions
- Simplifies installation and on-site adjustment
- Ensures stable and reliable hinge performance
- Complements modern dark cabinetry finishes
Technical Characteristics
- Height selection determines final hinge offset
- Requires pairing with compatible Blum CLIP top hinges
- Adjustable for vertical correction during installation
- Steel construction with protective Onyx Black finish
- Designed for standard cabinet side panel fixing
- Correct hinge and plate pairing ensures optimal operation
Applications
This mounting plate is suitable for cabinet installations requiring precise hinge alignment and reliable door positioning. It is commonly specified in kitchens, storage units and bespoke fitted furniture where accurate installation and coordinated hardware finishes are essential. Multiple height options allow specification according to overlay requirements and cabinet construction.
| Blum Clip Top Mounting Plate - Cruciform Cam Adjustable - Onyx Black - 0mm | Blum Clip Top Mounting Plate - Cruciform Cam Adjustable - Onyx Black - 3mm | |
|---|---|---|
| Finish | Onyx Black | Onyx Black |
| Mounting Plate Height (mm) | - | 3 |
| Mounting Plate Type | Cruciform | Cruciform |
| Fixing Type | Screw-on | Screw-on |
