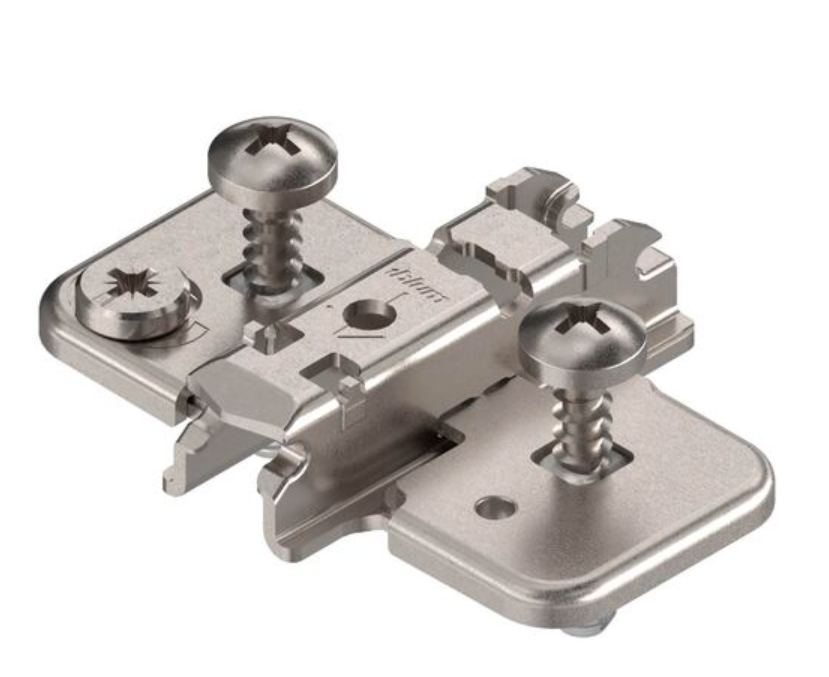

Blum Clip Top Mounting Plate - Cruciform Cam Expando - Nickel
Blum Clip Top Mounting Plate - Cruciform Cam Expando - Nickel is engineered to provide secure and accurately positioned hinge... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Mounting Plate - Cruciform Cam Expando - Nickel - 3mm | In Stock | 174H7130E | Download | £0.64 ex VAT |
|
Compare Blum Clip Top Mounting Plate - Cruciform Cam Expando - Nickel
Blum Clip Top Mounting Plate - Cruciform Cam Expando - Nickel is engineered to provide secure and accurately positioned hinge fixing within the Blum CLIP top system. Designed for seamless integration with compatible CLIP top hinges, this mounting plate ensures stable attachment and precise door alignment across a wide range of cabinet constructions. Manufactured from durable steel with a protective nickel-plated finish, it delivers dependable long-term performance in residential and light commercial cabinetry.
The cruciform cam design enables efficient height adjustment during installation, allowing fine tuning of door positioning to achieve consistent gaps and smooth operation. Featuring the EXPANDO fixing system, the plate is designed for secure anchoring into prepared cabinet side drilling. The EXPANDO mechanism expands within the panel to provide strong retention, supporting reliable hinge performance across various cabinet materials.
The 3mm height configuration introduces the required offset between the cabinet side and hinge arm, forming part of the overall overlay calculation. When paired with the correct hinge and cabinet construction, this ensures accurate door projection and consistent alignment within the Blum hinge system.
Product Features
Designed for Blum CLIP top hinge systems
Cruciform cam mounting plate design
Integrated EXPANDO fixing system
3mm height configuration
Durable nickel-plated steel finish
Compatible with tool-free CLIP top hinge attachment
Engineered for secure cabinet side fixing
Adjustable for precise door alignment
Product Benefits
Ensures stable and secure hinge mounting
Allows efficient height adjustment via cam mechanism
Provides strong retention with EXPANDO anchoring
Supports accurate door positioning and consistent reveals
Suitable for professional installation and production environments
Maintains long-term structural reliability
Technical Characteristics
3mm plate height determines final hinge positioning
EXPANDO fixing requires correctly prepared cabinet side drilling
Adjustable cam mechanism for fine height correction
Designed for use with compatible Blum CLIP top hinges
Steel construction with protective nickel finish
Correct hinge and plate pairing ensures optimal door performance
Applications
This mounting plate is intended for cabinet installations requiring a 3mm hinge offset within the Blum CLIP top system. It is commonly specified in overlay cabinet constructions where precise door projection and alignment are essential. Suitable for kitchens, bedrooms, storage units and bespoke fitted furniture, the EXPANDO fixing method makes it particularly appropriate for installations requiring secure anchoring and consistent performance in both residential and light commercial environments.
| Blum Clip Top Mounting Plate - Cruciform Cam Expando - Nickel - 3mm | |
|---|---|
| Finish | Nickel |
| Mounting Plate Height (mm) | 3 |
| Mounting Plate Type | Cruciform |
| Fixing Type | Expando |
