Blum Clip Top Mounting Plate - Cruciform Cam Inserta - Nickel
Blum Clip Top Mounting Plate - Cruciform Cam Inserta - Nickel is engineered to provide secure and accurately positioned hinge... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Mounting Plate - Cruciform Cam Inserta - Nickel - 3mm | In Stock | 174H7130I-NI | Download | £0.94 ex VAT |
|
Compare Blum Clip Top Mounting Plate - Cruciform Cam Inserta - Nickel

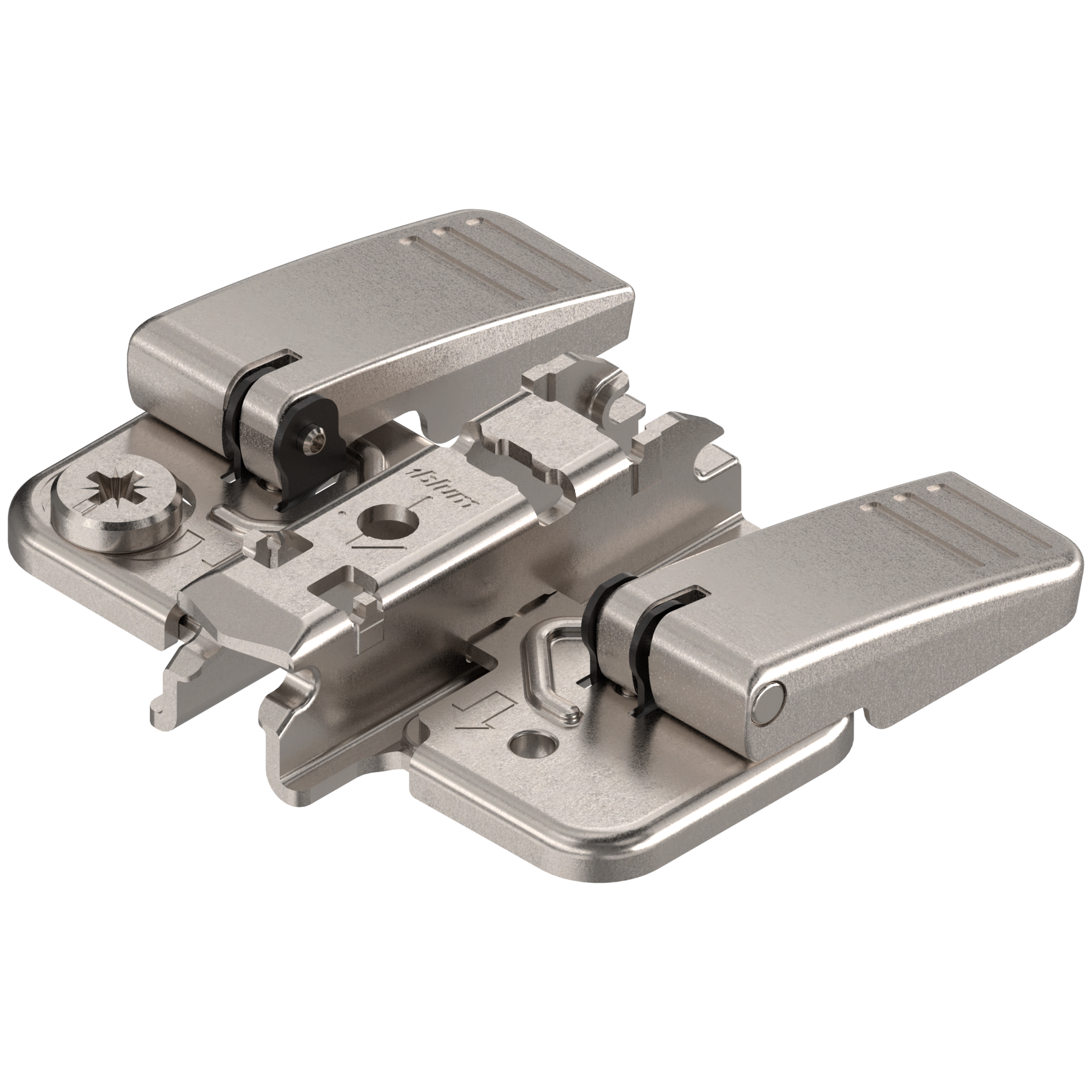

Blum Clip Top Mounting Plate - Cruciform Cam Inserta - Nickel is engineered to provide secure and accurately positioned hinge fixing within the Blum CLIP top system. Designed for seamless integration with compatible CLIP top hinges, this mounting plate ensures stable attachment and precise door alignment across a wide range of cabinet constructions. Manufactured from durable steel with a protective nickel-plated finish, it delivers long-term reliability in both residential and light commercial environments.
The cruciform cam design enables efficient height adjustment during installation, allowing fine tuning of door positioning to achieve consistent gaps and smooth operation. Featuring the Inserta fixing system, the plate incorporates integrated expansion dowels that allow rapid installation into pre-drilled cabinet side holes without the need for separate fixing screws. This reduces fitting time while maintaining secure and dependable retention within the panel.
The 3mm height configuration introduces the required offset between the cabinet side and hinge arm, forming part of the overall overlay calculation. When paired with the correct hinge and cabinet construction, this ensures accurate door projection and consistent alignment within the Blum hinge system.
Product Features
- Designed for Blum CLIP top hinge systems
- Cruciform cam mounting plate design
- Integrated Inserta expansion dowel fixing
- 3mm height configuration
- Durable nickel-plated steel finish
- Compatible with tool-free CLIP top hinge attachment
- Adjustable for precise door alignment
Product Benefits
- Ensures stable and secure hinge mounting
- Reduces installation time with Inserta fixing
- Allows efficient on-site height adjustment
- Supports accurate door positioning and consistent reveals
- Integrates seamlessly within the Blum hinge platform
- Maintains long-term structural reliability
Technical Characteristics
- 3mm plate height determines final hinge positioning
- Inserta fixing requires correctly prepared cabinet side drilling
- Adjustable cam mechanism for fine height correction
- Designed for use with compatible Blum CLIP top hinges
- Steel construction with protective nickel finish
- Correct hinge and plate pairing ensures optimal door performance
Applications
This mounting plate is intended for cabinet installations requiring a 3mm hinge offset within the Blum CLIP top system. It is commonly specified in overlay cabinet constructions where precise door projection and alignment are essential. Suitable for kitchens, bedrooms, storage units and bespoke fitted furniture, the Inserta fixing system makes it particularly appropriate for professional installations and volume cabinet production environments where efficiency, precision and secure anchoring are required.
| Blum Clip Top Mounting Plate - Cruciform Cam Inserta - Nickel - 3mm | |
|---|---|
| Finish | Nickel |
| Mounting Plate Height (mm) | 3 |
| Mounting Plate Type | Cruciform |
| Fixing Type | Inserta |
