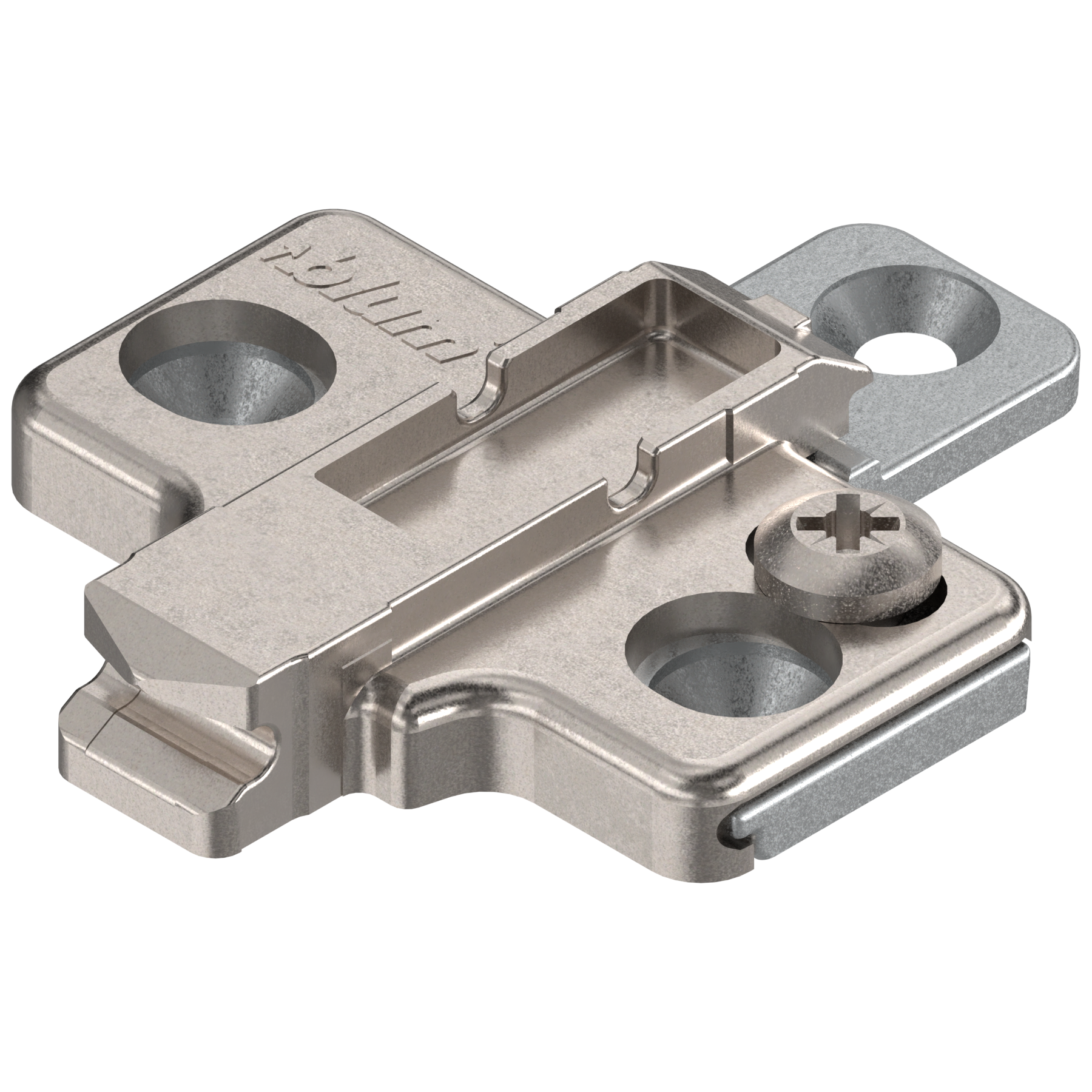

Blum Clip Top Mounting Plate - Cruciform - Die-Cast - Nickel
The Blum Clip Top mounting plate provides a secure fixing base for Blum Clip Top concealed hinges. Manufactured in die-cast... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Mounting Plate - Cruciform - Die-Cast - Nickel - 0mm | In Stock | 175H7100 | Download | £0.58 ex VAT |
|
|
| Blum Clip Top Mounting Plate - Cruciform - Die-Cast - Nickel - 3mm | In Stock | 175H7130 | Download | £0.66 ex VAT |
|
|

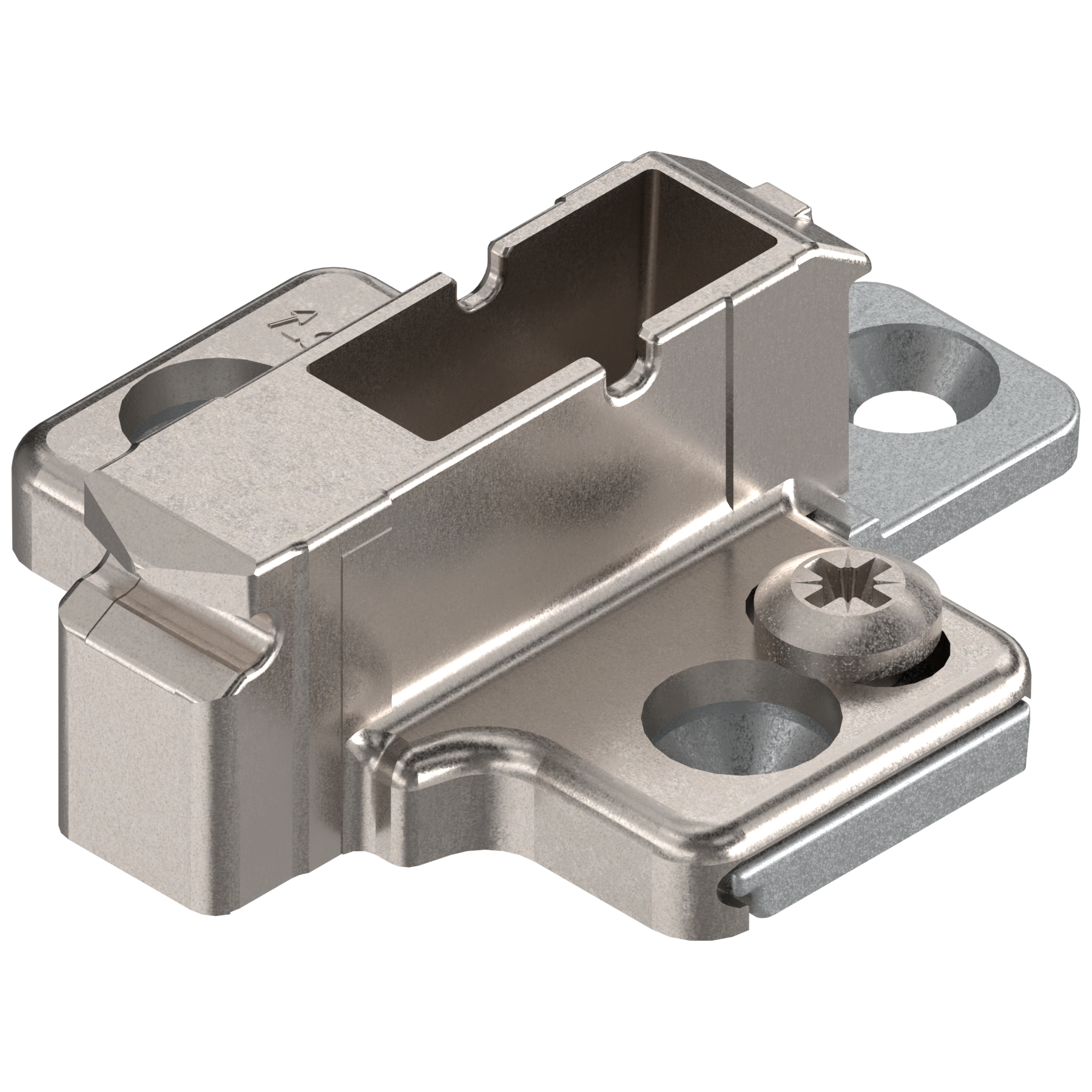

| Blum Clip Top Mounting Plate - Cruciform - Die-Cast - Nickel - 9mm | In Stock | 175H7190 | Download | £0.94 ex VAT |
|
Compare Blum Clip Top Mounting Plate - Cruciform - Die-Cast - Nickel
The Blum Clip Top mounting plate provides a secure fixing base for Blum Clip Top concealed hinges. Manufactured in die-cast metal with a nickel-plated finish, it delivers strength, accuracy and long-term reliability in cabinet construction.
The cruciform interface allows quick hinge attachment, while the integrated cam adjustment supports precise door alignment. Available in multiple heights, it enables accurate overlay configuration when paired with the correct hinge.
Product Features
-
Cruciform interface for Blum Clip Top hinges
-
Die-cast construction for increased strength
-
Nickel-plated finish for corrosion resistance
-
Cam height adjustment
-
Screw-on fixing method
-
Available in 0mm, 3mm and 9mm heights
Product Benefits
-
Provides a solid and stable hinge fixing point
-
Improves long-term cabinet durability
-
Allows accurate door alignment during installation
-
Supports precise overlay configuration
-
Reduces fitting time with system compatibility
-
Suitable for residential and commercial cabinetry
Technical Characteristics
-
Brand: Blum
-
Product Type: Clip Top mounting plate
-
Interface: Cruciform
-
Construction: Die-cast
-
Finish: Nickel plated
-
Fixing: Screw-on
-
Heights: 0mm, 3mm, 9mm
Applications
Suitable for kitchen, bedroom and commercial cabinetry, this mounting plate is used with Blum Clip Top hinges to secure cabinet doors to carcasses. Selecting the correct height ensures consistent alignment across single cabinets or full furniture runs.
