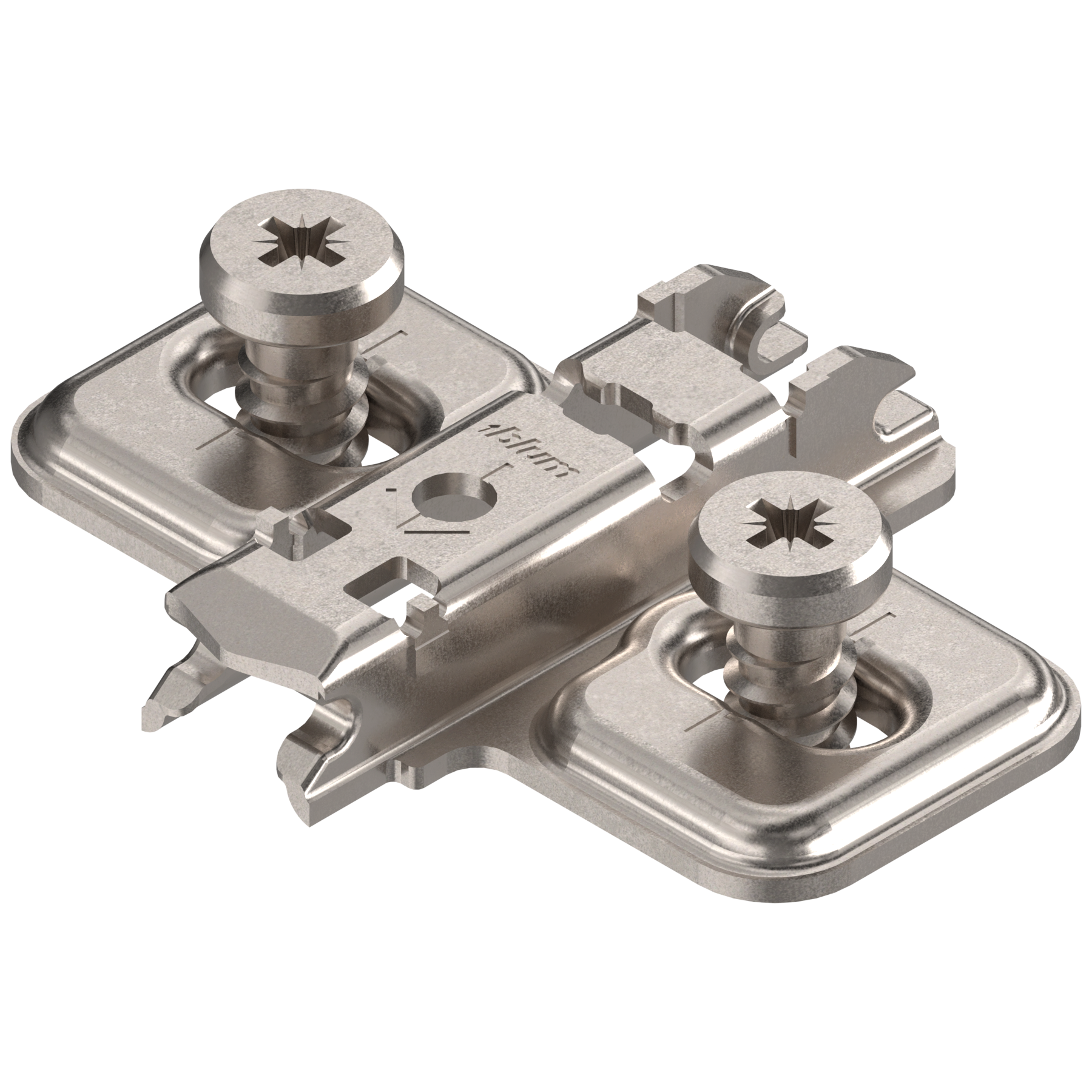

Blum Clip Top Mounting Plate - Cruciform Screw-on with Pre Mounted System Screws - Nickel
Blum Clip Top Mounting Plate - Cruciform Screw-on with Pre Mounted System Screws - Nickel is designed to provide secure... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Mounting Plate - Cruciform Screw-on with Pre Mounted System Screws - Nickel - 0mm | In Stock | 173L8100 | Download | £0.26 ex VAT |
|
|
| Blum Clip Top Mounting Plate - Cruciform Screw-on with Pre Mounted System Screws - Nickel - 3mm | In Stock | 173L8130 | Download | £0.29 ex VAT |
|
Compare Blum Clip Top Mounting Plate - Cruciform Screw-on with Pre Mounted System Screws - Nickel
Blum Clip Top Mounting Plate - Cruciform Screw-on with Pre Mounted System Screws - Nickel is designed to provide secure and precisely aligned hinge fixing within the Blum CLIP top system. Engineered for use with compatible CLIP top hinges, this mounting plate ensures stable attachment and consistent door positioning across a wide range of cabinet constructions. Manufactured from durable steel with a protective nickel-plated finish, it delivers reliable long-term performance in both residential and light commercial cabinetry.
The cruciform mounting plate design provides dependable screw positioning and strong retention to the cabinet side panel. Supplied with pre-mounted system screws, it simplifies installation by reducing preparation time and improving fixing consistency during assembly. Available in 0mm and 3mm height options, the plate forms part of the hinge offset calculation. Selecting the correct height ensures accurate overlay positioning and consistent reveals when paired with the appropriate hinge configuration.
Designed to integrate seamlessly with Blum CLIP top hinges, the plate allows tool-free hinge attachment and removal. This supports efficient installation, straightforward adjustment and secure engagement within the hinge system, contributing to smooth door operation and precise alignment.
Product Features
-
Designed for Blum CLIP top hinge systems
-
Cruciform mounting plate configuration
-
Screw-on fixing to cabinet side panel
-
Supplied with pre-mounted system screws
-
Available in 0mm and 3mm height options
-
Durable nickel-plated steel finish
-
Compatible with tool-free CLIP top hinge attachment
-
Adjustable for accurate door alignment
Product Benefits
-
Ensures secure and stable hinge mounting
-
Reduces installation time with pre-mounted screws
-
Supports precise door positioning and consistent gaps
-
Allows correct overlay calculation through height selection
-
Integrates seamlessly within the Blum hinge platform
-
Suitable for residential and light commercial cabinetry
Technical Characteristics
-
Height selection determines hinge offset
-
Screw-on fixing requires accurate cabinet side preparation
-
Designed for use with compatible Blum CLIP top hinges
-
Adjustable height correction capability
-
Steel construction with protective nickel finish
-
Correct hinge and plate pairing ensures optimal door performance
Applications
This mounting plate is intended for cabinet installations requiring secure screw-on fixing within the Blum CLIP top hinge system. The availability of 0mm and 3mm height configurations makes it suitable for overlay cabinet constructions where precise hinge offset is required to achieve correct door alignment. It is commonly specified in kitchens, bedrooms, storage units and bespoke fitted furniture projects where durability, efficient installation and consistent door reveals are essential.
| Blum Clip Top Mounting Plate - Cruciform Screw-on with Pre Mounted System Screws - Nickel - 0mm | Blum Clip Top Mounting Plate - Cruciform Screw-on with Pre Mounted System Screws - Nickel - 3mm | |
|---|---|---|
| Finish | Nickel | Nickel |
| Mounting Plate Height (mm) | - | 3 |
| Mounting Plate Type | Cruciform | Cruciform |
| Fixing Type | Screw-on | Screw-on |
