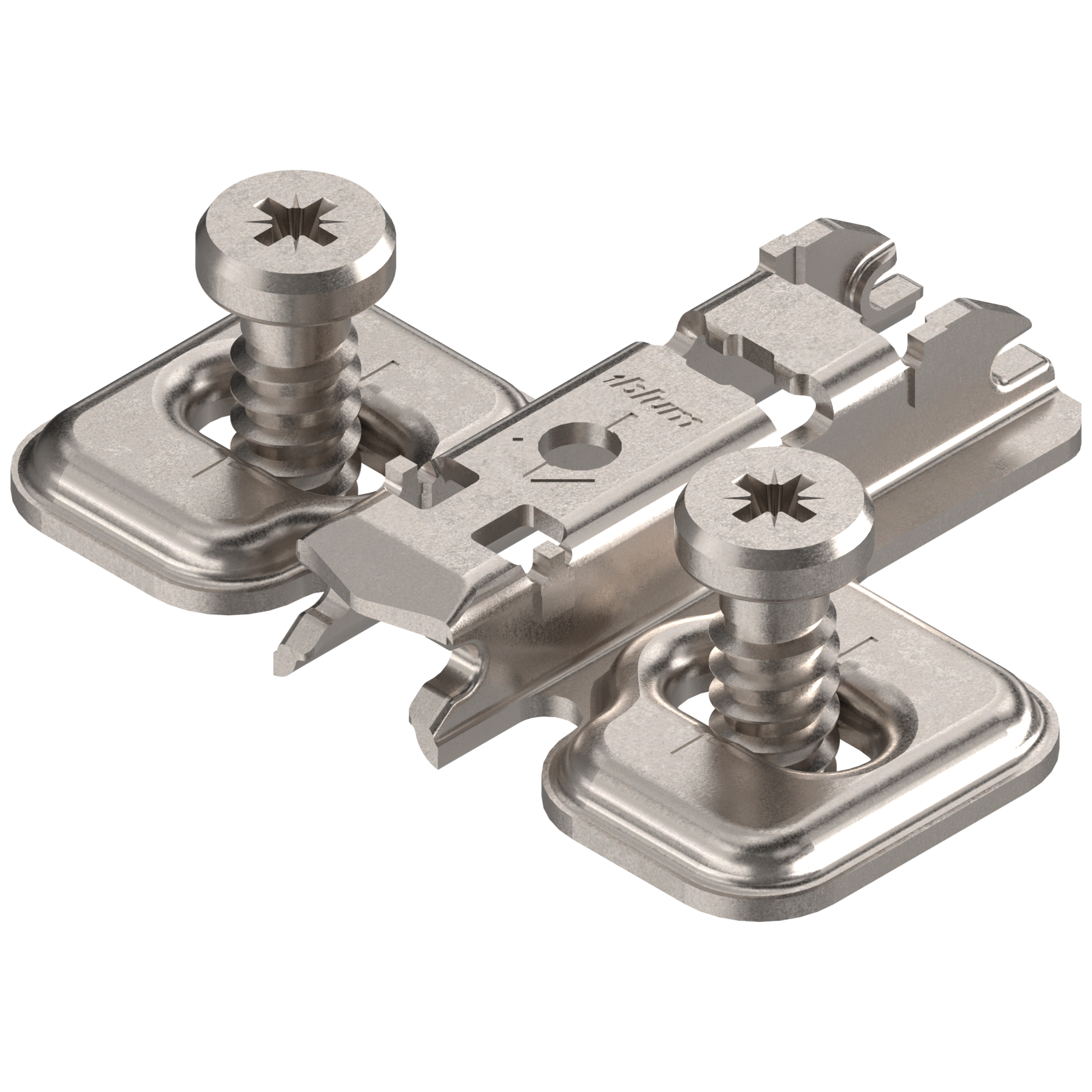

Blum Clip Top Mounting Plate - Cruciform Cam Adjustable Pre-mounted Screws For Wide Hinges - Nickel
Blum Clip Top Mounting Plate - Cruciform Cam Adjustable Pre-mounted Screws For Wide Hinges - Nickel is engineered to provide... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Mounting Plate - Cruciform Cam Adjustable Pre-mounted Screws For Wide Hinges - Nickel - 0mm | In Stock | 173L8300 | Download | £0.26 ex VAT |
|
Compare Blum Clip Top Mounting Plate - Cruciform Cam Adjustable Pre-mounted Screws For Wide Hinges - Nickel
Blum Clip Top Mounting Plate - Cruciform Cam Adjustable Pre-mounted Screws For Wide Hinges - Nickel is engineered to provide secure and accurately positioned hinge fixing within the Blum CLIP top system. Designed for seamless integration with compatible CLIP top hinges, this mounting plate ensures stable attachment and precise door alignment across a wide range of cabinet constructions. Manufactured from durable steel with a protective finish, it delivers dependable performance in residential and light commercial cabinetry.
The cruciform mounting plate design provides consistent screw positioning and strong mechanical retention to the cabinet side panel. Supplied with pre-mounted system screws, it streamlines installation by reducing preparation time and improving fixing consistency during assembly. The 0mm height configuration provides a neutral hinge offset, making it suitable for overlay calculations where no additional spacing is required between the cabinet side and hinge arm. Final door position is determined by the combination of hinge type and mounting plate height.
Designed for use with Blum CLIP top hinges, the plate supports tool-free hinge attachment and removal. This allows efficient installation, simplified adjustment and ongoing maintenance while maintaining secure engagement within the hinge system.
Product Features
-
Designed for Blum CLIP top hinge systems
-
Cruciform mounting plate configuration
-
Screw-on fixing to cabinet side panel
-
Supplied with pre-mounted system screws
-
0mm height configuration
-
Compatible with tool-free CLIP top hinge attachment
-
Durable steel construction
-
Adjustable for precise door alignment
Product Benefits
-
Ensures stable and secure hinge mounting
-
Reduces installation time with pre-mounted screws
-
Supports accurate door positioning and consistent reveals
-
Enables efficient cabinet assembly
-
Integrates seamlessly within the Blum hinge platform
-
Suitable for residential and light commercial cabinetry
Technical Characteristics
-
0mm plate height determines final hinge positioning
-
Requires accurate cabinet side panel preparation
-
Adjustable height correction capability
-
Designed for use with compatible Blum CLIP top hinges
-
Steel construction with protective finish
-
Correct hinge and plate pairing ensures optimal door performance
Applications
This mounting plate is intended for cabinet installations requiring a 0mm hinge offset within the Blum CLIP top system. It is commonly specified in overlay cabinet constructions where the hinge geometry provides the necessary projection without additional plate height. Suitable for kitchens, bedrooms, storage units and bespoke fitted furniture, the pre-mounted screw design supports efficient installation in both professional and high-volume production environments.
| Blum Clip Top Mounting Plate - Cruciform Cam Adjustable Pre-mounted Screws For Wide Hinges - Nickel - 0mm | |
|---|---|
| Finish | Nickel |
| Mounting Plate Type | Cruciform |
| Fixing Type | Screw-on |
