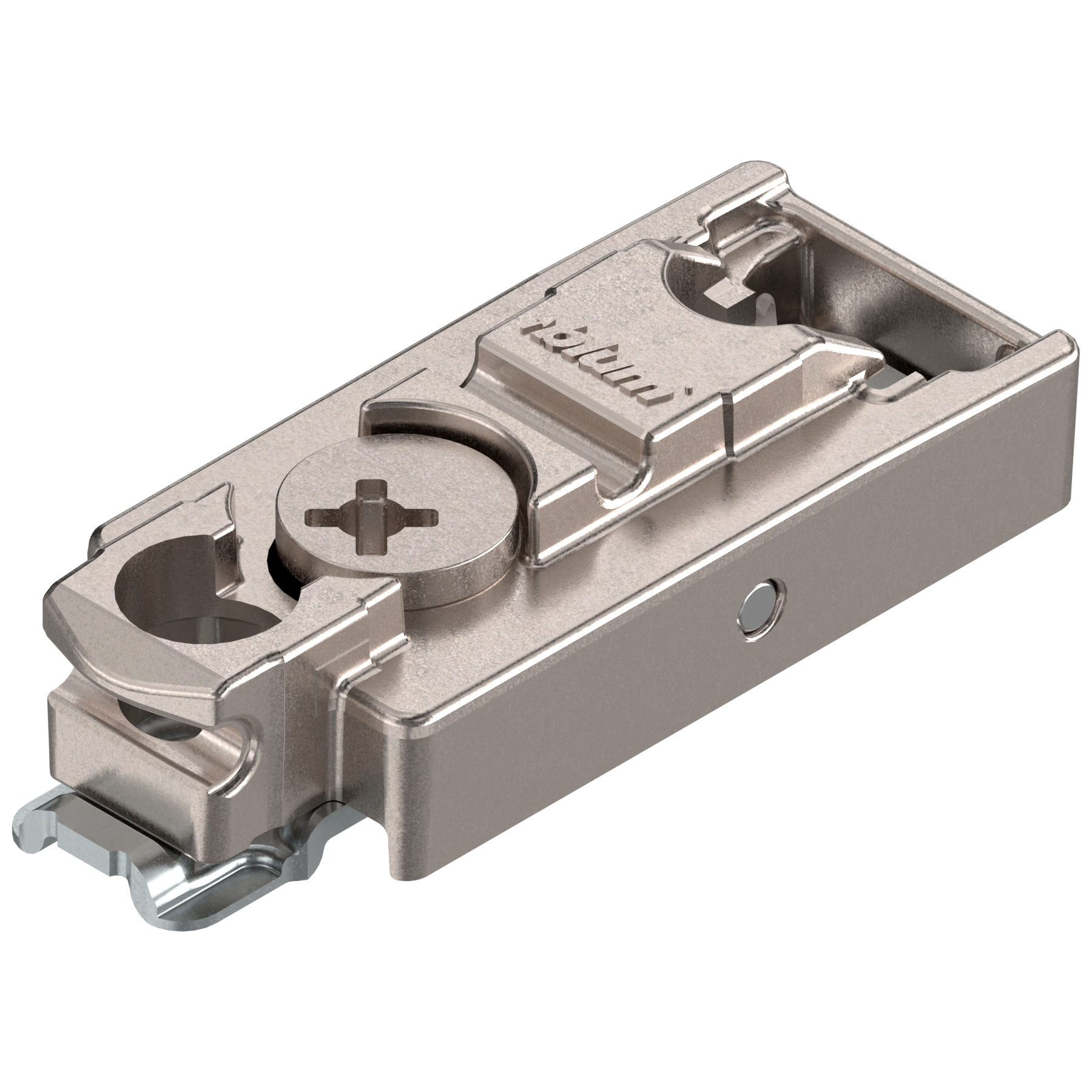

Blum Clip Top Mounting Plate - Inline Cam Die Cast - Nickel
Blum Clip top Mounting Plate - Inline Cam Adjustable Die Cast - Nickel is designed to provide secure hinge fixing... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Mounting Plate - Inline Cam Die Cast - Nickel - 0mm | In Stock | 175H5400 | Download | £0.60 ex VAT |
|
Compare Blum Clip Top Mounting Plate - Inline Cam Die Cast - Nickel
Blum Clip top Mounting Plate - Inline Cam Adjustable Die Cast - Nickel is designed to provide secure hinge fixing with integrated vertical adjustment within the Blum CLIP top system. Manufactured from durable die-cast construction, this mounting plate delivers enhanced structural strength and long-term stability in demanding cabinet applications. Designed for seamless compatibility with Blum CLIP top hinges, it ensures precise door positioning and reliable attachment across a wide range of cabinet constructions.
Featuring an integrated inline cam height adjustment, the plate allows convenient vertical door alignment directly at the mounting plate. This simplifies fine tuning during installation and enables accurate reveals without repositioning screws. The die-cast body enhances rigidity and durability, making it suitable for high-use cabinetry and professional installations.
The selectable plate height configuration forms part of the hinge offset calculation and determines the final door position and overlay. Selecting the appropriate height ensures correct hinge geometry and consistent door alignment when paired with the specified hinge.
Finished in durable nickel, the plate provides a neutral interior appearance while maintaining corrosion resistance. Designed for use with CLIP top hinges, it supports tool-free hinge attachment and removal for efficient installation and adjustment.
Product Features
-
Designed for Blum CLIP top hinge systems
-
Robust die-cast construction
-
Integrated inline cam height adjustment
-
Selectable plate height configuration
-
Durable nickel finish
-
Compatible with tool-free CLIP top hinge attachment
Product Benefits
-
Enables precise vertical door alignment via cam adjustment
-
Provides strong and stable hinge support
-
Enhances durability in high-use cabinetry
-
Supports accurate door positioning and consistent reveals
-
Allows correct overlay calculation through height selection
-
Suitable for residential and light commercial installations
Technical Characteristics
-
Plate height determines hinge offset and final door position
-
Inline cam allows controlled vertical adjustment
-
Die-cast body for enhanced structural integrity
-
Requires accurate cabinet side preparation
-
Designed for use with compatible Blum CLIP top hinges
-
Correct hinge and plate pairing ensures optimal door performance
Applications
This mounting plate is intended for cabinet installations requiring a robust inline cam adjustable die-cast fixing solution within the Blum CLIP top hinge system. The selectable height configuration makes it suitable for overlay constructions where precise hinge offset is essential to achieve accurate door alignment. It is commonly specified in kitchens, bedrooms and fitted furniture projects where durability, structural strength and fine adjustment capability are required.
| Blum Clip Top Mounting Plate - Inline Cam Die Cast - Nickel - 0mm | |
|---|---|
| Finish | Nickel |
| Mounting Plate Type | Inline |
| Fixing Type | Screw-on |
