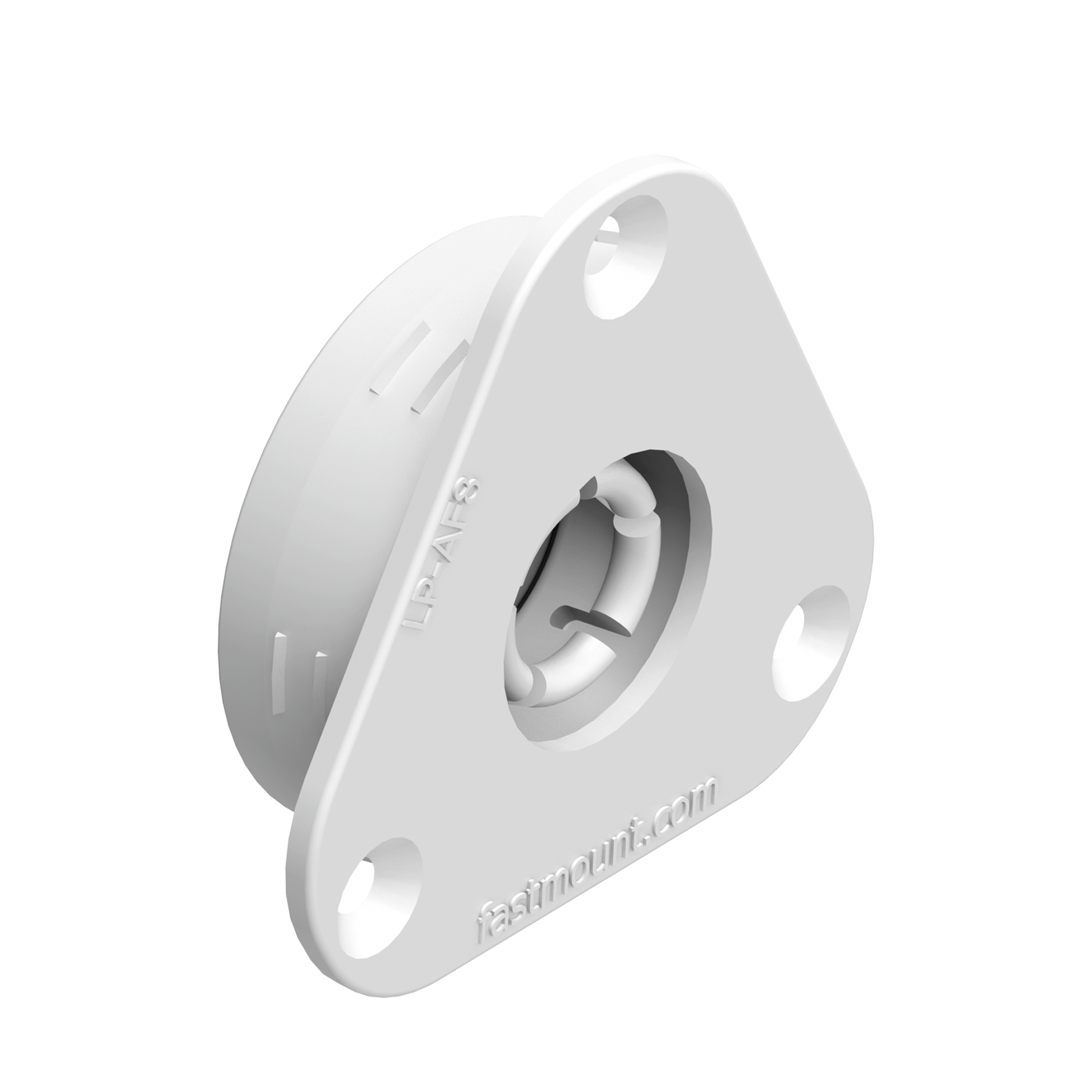

Fastmount Low Profile Auto Fit - Female

Name: Fastmount Low Profile Auto Fit - Female
Brand: Fastmount
SKU: P-LP-AF8A

Low Profile clip LP-AF8A provides 360 degree lateral adjustment, fitting into a 35ø hole. Mounts into a variety of materials... More info

Total £1.92 ex VAT

Typically available in 2-3 days. Need it faster? Contact us.

Product name			Variant code	Data sheet	Price	Quantity
Fastmount Low Profile Auto Fit Clip - Female		Typically available in 2-3 days. Need it faster? Contact us.	LP-AF8A	Download	£1.92 ex VAT

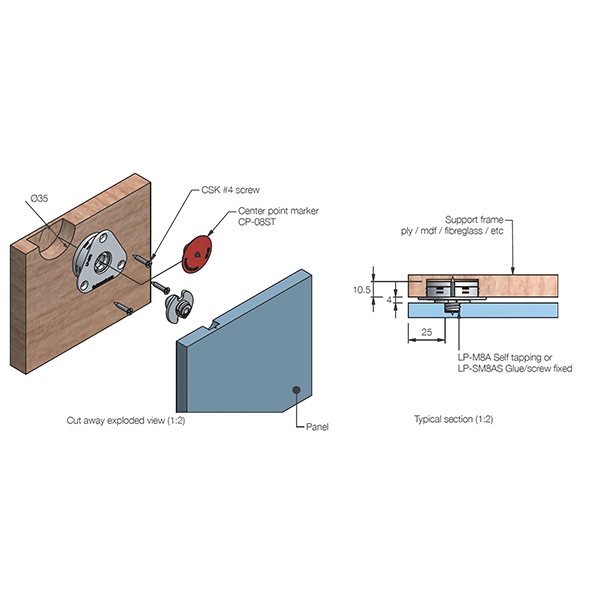

Low Profile clip LP-AF8A provides 360 degree lateral adjustment, fitting into a 35ø hole. Mounts into a variety of materials and is used with male Low Profile clips.

BENEFITS

Hidden fixing with 8mm lateral adjustment
Screw or glue into plywood min. 9mm thick
Perfect panel alignment and secure mounting every time
Remove and refit panels in any order multiple times
5kg pull out load per clip
Allows for flexing and expansion of panel and support frame

APPLICATIONS

Covered or painted and prefinished panels
Curved panels
Refits and upgrades of existing installations
Where installation tolerance is required
Can be moulded into fibreglass
Moulded into hull

The Fastmount® multi-award winning system has revolutionized the mounting of panels. Panels can easily be removed and refitted in any sequence time after time.
