Sugatsune Heavy Duty Concealed Cabinet Door Hinge -160° Full Overlay Soft Close - Black Nickel

Name: Sugatsune Heavy Duty Concealed Cabinet Door Hinge -160° Full Overlay Soft Close - Black Nickel
Brand: Sugatsune
SKU: P-03-S18R

A concealed hinge for larger doors with a significantly increased load bearing capacity. 160° opening / Built-in Damper Features: The... More info

Total £87.25 ex VAT

Typically available in 2-3 days. Need it faster? Contact us.

Case quantities

Sugatsune Heavy Duty Concealed Cabinet Door Hinge -160° Full Overlay Soft Close - Black Nickel comes in cases of 12. Please order 12 units if you require a case.

Product name			Variant code	Data sheet	Price	Quantity
Sugatsune Heavy Duty Concealed Cabinet Door Hinge -160° Full Overlay Soft Close - Black Nickel		Typically available in 2-3 days. Need it faster? Contact us.	ACH09709B	Download	£87.25 ex VAT

A concealed hinge for larger doors with a significantly increased load bearing capacity. 160° opening / Built-in Damper

Features:

The built-in damper allows doors to close slowly providing premium door motion.
Comes with a mounting plate and screw covers.

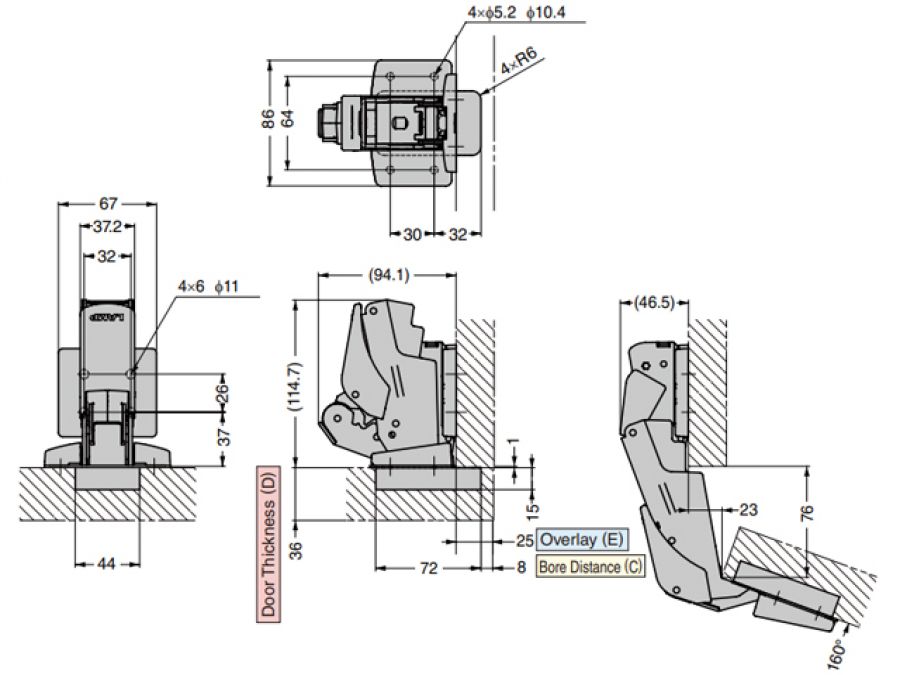

3-way adjustment of door position is available as below: Depth : +1.5 mm / -2.5 mm Vertical : Â±3 mm Overlay (horizontal) : +0 mm / -4 mm
Comes with a red holding pin which holds the hinge angle.

Please do not detach it until the hinge is installed Please do not open and close the hinge while the holding pin is attached Note the hinge boss cut out detail is not standard.

Available in nickel and black nickel finish.

	Sugatsune Heavy Duty Concealed Cabinet Door Hinge -160° Full Overlay Soft Close - Black Nickel
Finish	Black Nickel
Opening angle (°)	160
Min Door Thickness (mm)	18
Max Door Thickness (mm)	36
Overlay (mm)	21 to 25

Download Data Sheet
