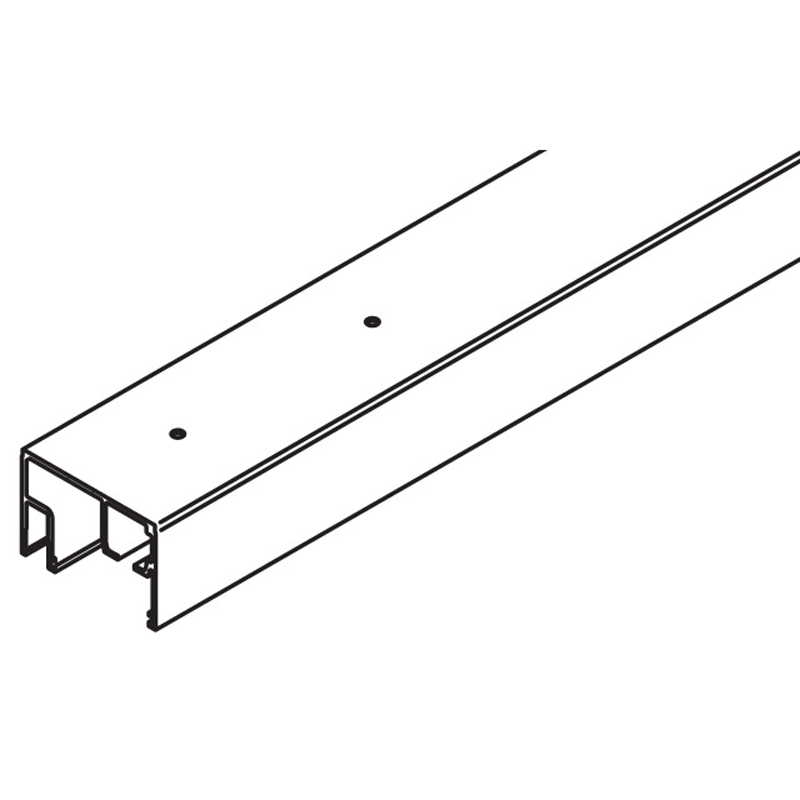

Name: Hawa Porta 100 GWF Top Track - Anodized - 2500mm
Brand: Hawa
SKU: P-057.3084.250

Hawa Porta 100 GWF Top Track - Anodized - 2500mm

The Hawa Porta 100 GWF Top Track is a premium, Swiss-engineered sliding door solution designed for high-end residential and commercial... More info

Total £292.72 ex VAT

In Stock

Product name

Variant code

Data sheet

Price

Quantity

Hawa Porta 100 GWF Top Track - Anodized - 2500mm

In Stock

057.3084.250

Download

£292.72 ex VAT

The Hawa Porta 100 GWF Top Track is a premium, Swiss-engineered sliding door solution designed for high-end residential and commercial interior spaces. This specific 2500mm anodized aluminium track is the backbone of a sophisticated top-running system, allowing for the seamless integration of both a sliding glass door and a fixed glass panel within a single, streamlined profile.

Hawa Porta 100 GWF

The "GWF" designation stands for Glass/Fixed, highlighting the track's unique capability to manage both moving and stationary glass elements. Its anodized finish provides a durable, corrosion-resistant surface with a sleek, silver-matte aesthetic that complements modern architectural styles.

Key Features & Benefits

Dual Functionality: Integrated support for a fixed glass panel alongside the sliding track eliminates the need for redundant hardware.
Weight Capacity: Robustly supports glass doors up to 100 kg (220 lbs), suitable for heavy-duty tempered or laminated glass.
Minimalist Design: At only 58 mm in height, the track can be surface-mounted or recessed into the ceiling for an "invisible" look.
Silent Operation: Precision ball-bearing rollers ensure a whisper-quiet, smooth-gliding experience.
Swiss Precision: Engineered by Hawa Sliding Solutions, ensuring long-term reliability and maintenance-free performance.

Technical Specifications

Attribute	Specification
Material	High-grade Aluminum, Anodized (Silver)
Length	2500 mm (8' 2 7/16")
Profile Dimensions	86 mm x 58 mm
Max Door Weight	100 kg (220 lbs)
Glass Thickness	8 – 12.7 mm (5/16" to 1/2")
Max Door Width	1600 mm (5' 3")
Max Door Height	2700 mm (8' 10")
Mounting	Ceiling or Flush-Ceiling Integration

Hawa Porta 100 GWF vs. Standard Sliding Track

Feature	Hawa Porta 100 GWF	Standard Utility Track
Fixed Glass Integration	Built-in fixed glass support profile	Requires separate U-channels
Aesthetics	Concealed hardware; anodized finish	Visible brackets; industrial finish
Closing Action	Optional Soft-Close & Self-Closing	Basic rubber bumpers
Durability	Swiss-engineered for high-cycle life	Standard residential grade
Installation	Flush ceiling or surface options	Typically surface-mount only

Frequently Asked Questions (FAQ)

1. Does this track require glass cut-outs?

No. The Hawa Porta 100 GWF uses advanced clamping shoe technology, allowing the glass to be secured without the need for drilling or cut-outs.

2. Can I add a soft-close mechanism later?

Yes. The system is compatible with Hawa’s optional soft-closing and self-closing units, which can be retrofitted or integrated during initial installation for a gentle, controlled stop.

3. Is the 2500mm track cuttable?

Absolutely. The aluminium profile can be precision-cut on-site to fit your specific opening width.

4. What is the difference between GW and GWF?

The GW model is designed for a single sliding glass door only. The GWF (this model) includes an additional integrated profile to hold a fixed glass panel, creating a complete glass wall solution.
