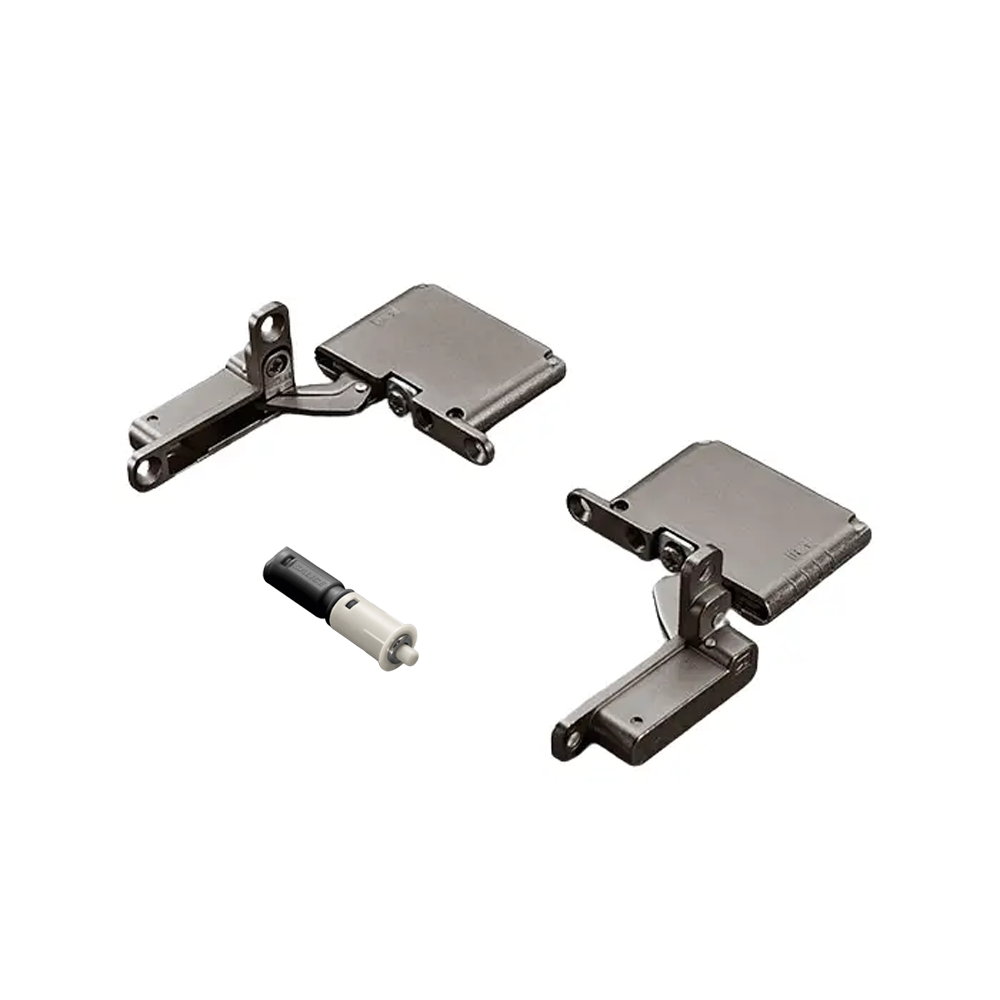

Salice Air Push-System Concealed 105° Hinge - Set for 1 Door
The innovative and revolutionary hinge. Despite its compactness and small size, Air delivers full functionality to furniture manufacturers. It is... More info
Compare Salice Air Push-System Concealed 105° Hinge - Set for 1 Door
The innovative and revolutionary hinge.
Despite its compactness and small size, Air delivers full functionality to furniture manufacturers.
It is inserted into the top and bottom of the cabinet of the door and is practically invisible. Its small size means that applications for Air are numerous: kitchens, bathrooms, living and bedroom furniture or display cabinets.
The Push-System is a self-opening system for the doors of all types of handle-less furniture. It consists of a series of self-opening hinges, release devices that can be fitted to the top, base or side panel of the cabinet, and retaining catches to be fitted to the back of the door.
- The hinge is characterised by compactness and by a small size; it incorporates the Push self-opening system for handle-less doors.
- It is fitted to the top and bottom panel of the cabinet.
- For min 18mm thick wooden doors and for aluminium-framed doors.
- Max door weight 25kg.
- Max dimensions of the door : height 2100 mm x width 600 mm.
- 16.5mm deep metal cup.
- L = 2.5 mm
- 105° opening.
- Possible drilling distance on the door (K): from 3 to 6 mm for wooden doors.
- Fixed K = 4 mm for aluminium-framed doors.
| Salice Air Push-System Concealed 105° Hinge - Set for 1 Door - Black Nickel | Salice Air Push-System Concealed 105° Hinge - Set for 1 Door - Nickel Plated | |
|---|---|---|
| Finish | Nickel Plated | Nickel Plated |
| Opening angle (°) | 105 | 105 |
| Max Door Weight (kg) | 25 | 25 |
