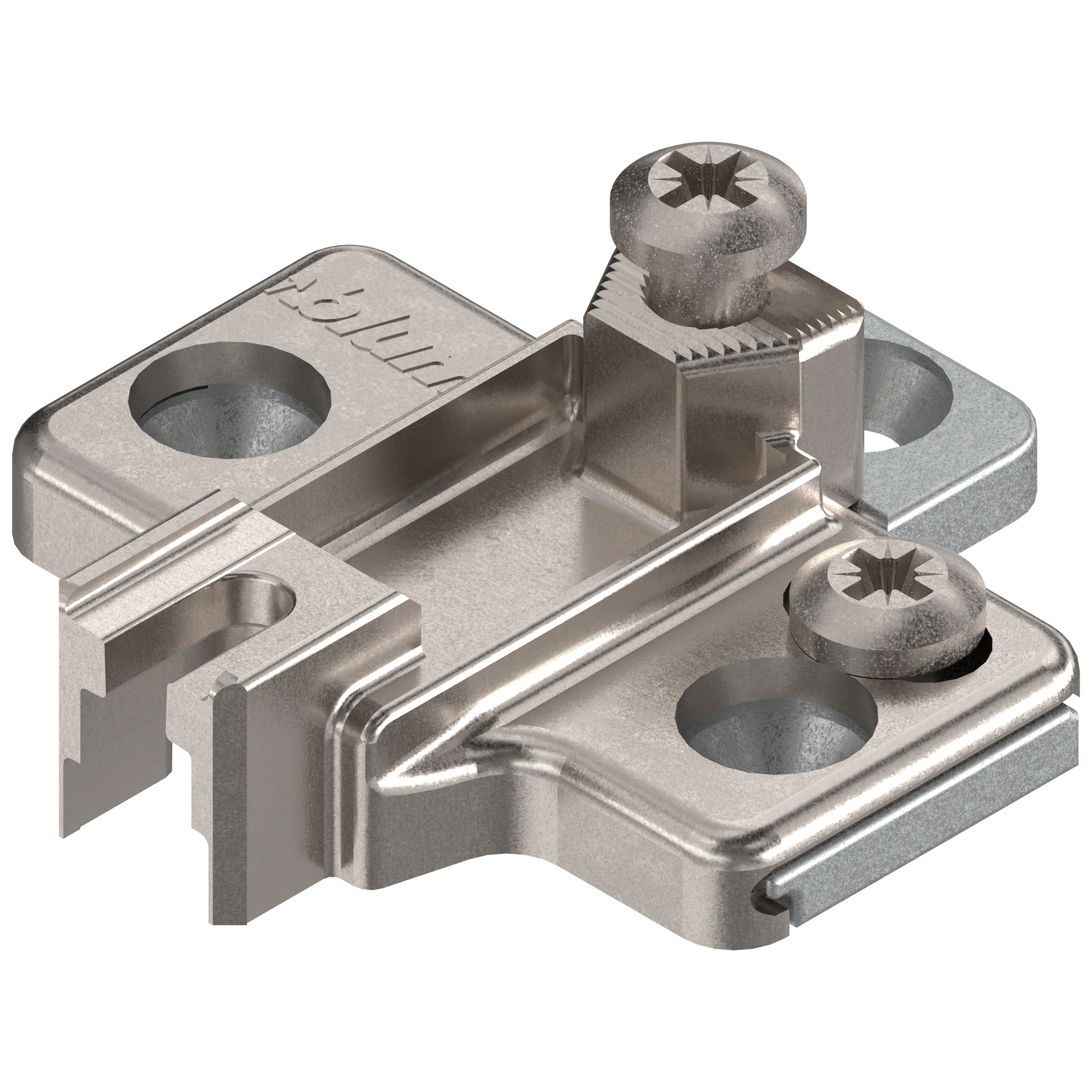

Blum Modul Mounting Plate - Cruciform Height Adjustment - Nickel
Blum Modul Mounting Plate - Cruciform Height Adjustment - Nickel is engineered to provide secure and precisely adjustable hinge fixing... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Modul Mounting Plate - Cruciform Height Adjustment - Nickel - 3mm | In Stock | 195H7130 | Download | £0.76 ex VAT |
|
Compare Blum Modul Mounting Plate - Cruciform Height Adjustment - Nickel
Blum Modul Mounting Plate - Cruciform Height Adjustment - Nickel is engineered to provide secure and precisely adjustable hinge fixing within the Blum MODUL hinge system. Designed for seamless integration with compatible Blum MODUL hinges, this mounting plate ensures stable attachment and accurate door alignment across a wide range of cabinet constructions. Manufactured from durable steel with a protective nickel-plated finish, it delivers reliable long-term performance in residential and light commercial cabinetry.
The cruciform mounting plate design supports secure screw fixing to the cabinet side panel while maintaining consistent hinge geometry. Featuring an integrated height adjustment mechanism, the plate allows efficient vertical correction during installation, enabling accurate door positioning and consistent reveals across the cabinet run.
The 0mm height configuration provides a neutral hinge offset between the cabinet side and hinge arm. When paired with the correct MODUL hinge type, this ensures accurate overlay calculation, proper door projection and smooth, dependable hinge operation.
Product Features
- Designed for Blum MODUL hinge systems
- Cruciform mounting plate configuration
- Integrated height adjustment mechanism
- 0mm height configuration
- Durable nickel-plated steel finish
- Secure screw fixing to cabinet side panel
- Engineered for precise door alignment
Product Benefits
- Ensures stable and secure hinge mounting
- Allows efficient vertical adjustment during installation
- Supports accurate door positioning and consistent reveals
- Provides correct hinge offset for overlay calculations
- Integrates seamlessly within the Blum MODUL hinge platform
- Suitable for residential and light commercial cabinetry
Technical Characteristics
- 0mm plate height determines final hinge positioning
- Height adjustment enables vertical alignment correction
- Requires accurate cabinet side panel preparation
- Steel construction with protective nickel finish
- Designed for use with compatible Blum MODUL hinges
- Correct hinge and plate pairing ensures optimal door performance
Applications
This mounting plate is intended for cabinet installations utilising the Blum MODUL hinge system where a 0mm hinge offset is required. Commonly specified in overlay cabinet constructions, it supports precise door projection and alignment. Suitable for kitchens, bedrooms, storage units and bespoke fitted furniture, it provides reliable hinge mounting and consistent performance in both residential and light commercial environments.
| Blum Modul Mounting Plate - Cruciform Height Adjustment - Nickel - 3mm | |
|---|---|
| Finish | Nickel |
| Mounting Plate Height (mm) | 3 |
| Mounting Plate Type | Cruciform |
| Fixing Type | Screw-on |
