Name: Blum Revego Duo - Hinge Bracket Set - For Pocket Height 1657-1806 mm - Right Hand
Brand: Blum
SKU: P-802T1650.R3

Blum Revego Duo - Hinge Bracket Set - For Pocket Height 1657-1806 mm - Right Hand

Optimised for Pocket Height: 1657–1806 mm Transform your living space with the Blum REVEGO Duo Hinge Bracket Set, the core... More info

Total £1,127.80 ex VAT

Typically available in 2-3 days. Need it faster? Contact us.

Product name

Variant code

Data sheet

Price

Quantity

Blum Revego Duo - Hinge Bracket Set - For Pocket Height 1657-1806 mm - Right Hand

Typically available in 2-3 days. Need it faster? Contact us.

802T1650.R3

Download

£1,127.80 ex VAT

Optimised for Pocket Height: 1657–1806 mm

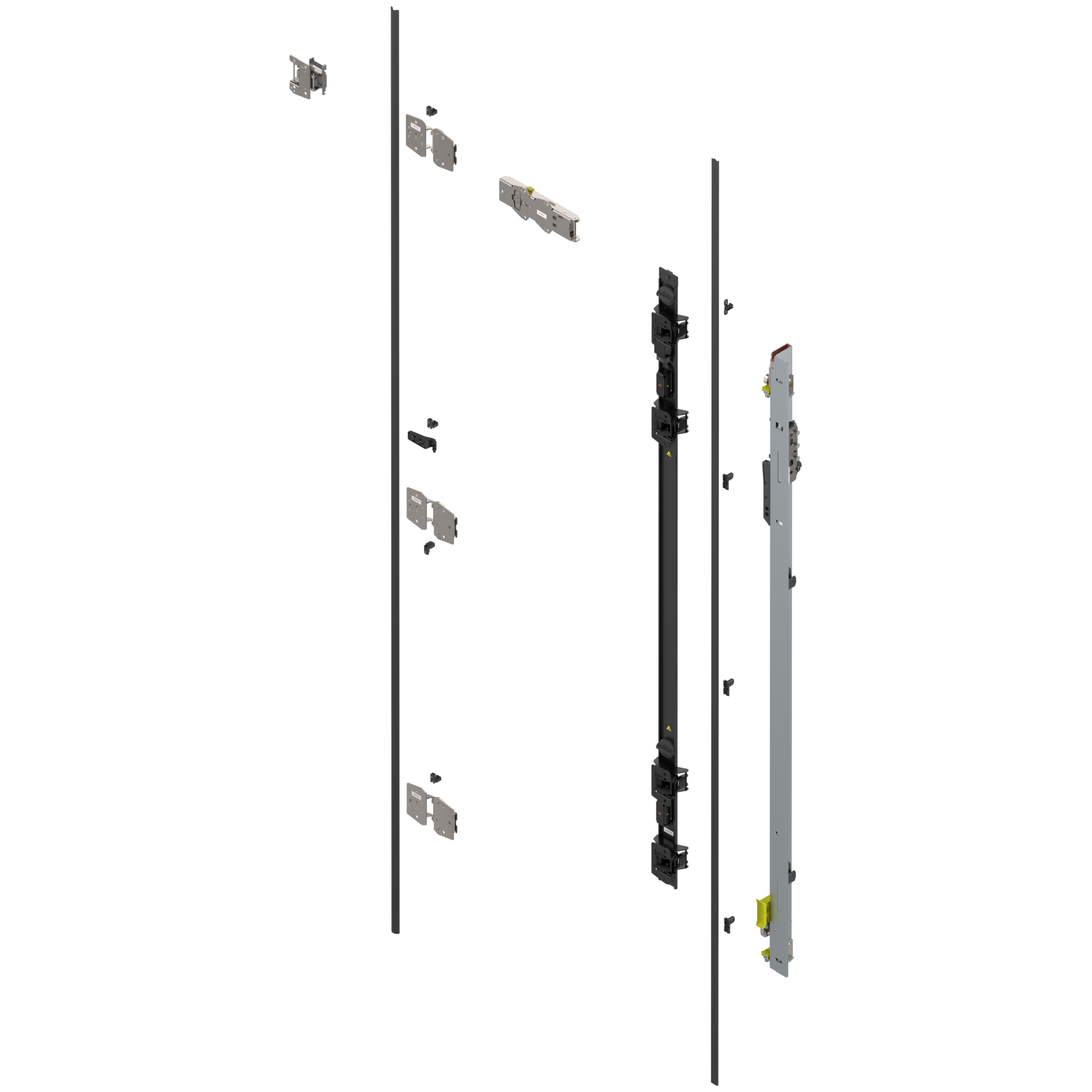

Transform your living space with the Blum REVEGO Duo Hinge Bracket Set, the core engineering behind the world’s most sophisticated pocket door system. Designed specifically for Right-Hand configurations with a pocket height range of 1657mm to 1806mm, this set allows double doors to glide effortlessly into a discreet 150mm wide housing, completely concealing kitchen units, home offices, or media centers.

The REVEGO Duo is defined by its "all-in-one" approach. Unlike traditional pocket systems that require complex on-site construction, this hinge bracket set features fully integrated technology. It is engineered to facilitate pre-assembly in the workshop, ensuring that when you arrive on-site, the installation is as simple as "set up, align, and mount".

Key Features & Benefits

TIP-ON Motion Technology: Enjoy a handle-less, minimalist aesthetic. A light touch is all it takes to trigger the mechanism, with doors sliding smoothly into the pocket.
Precision Engineering: Built by Blum to withstand 40,000 opening and closing cycles, ensuring decades of reliable performance.
Seamless Integration: When closed, full overlay fronts completely hide the pocket, creating a flush, high-end furniture finish.
Tool-Free Assembly: The bracket set is designed for tool-free fixing, significantly reducing labor time and potential for error during final assembly.
Flexible Design: Ideal for modern "broken-plan" living where spaces need to transition from a functional kitchen or office to a sleek living area in seconds.

Technical Specifications

Feature	Details
Product Type	Hinge Bracket Set (Right Hand)
Application	REVEGO Duo (Double Door System)
Compatible Pocket Height	1657 mm – 1806 mm
Motion Technology	TIP-ON (Push-to-Open)
Material	High-grade Steel
Finish	Zinc-Plated
Max Door Weight	35 kg per front
Max Door Thickness	Up to 26 mm

Pro-Tips for a Flawless Install

CNC Precision: Please note that CNC machining (or a Blum MINIPRESS with EASYSTICK) is required for the wooden components of the pocket.
The 150mm Rule: The REVEGO Duo requires a standardized pocket width of 150mm. Ensure your cabinet planning accounts for this fixed dimension to ensure a perfect fit.
Gap Adjustment: Take advantage of the 3-dimensional adjustment interface. It is easily accessible even after the furniture is fully built, allowing you to dial in perfect 1.5mm–2mm gaps for that bespoke look.

Frequently Asked Questions (FAQ)

Q: Can I use this bracket for a single door (REVEGO Uno)?

A: No, this specific bracket set is designed for the REVEGO Duo (double door) system. The Duo system uses a 150mm pocket, whereas the Uno uses a 100mm pocket.

Q: Do I need to buy anything else for the system to work?

A: Yes. This is the Hinge Bracket Set. For a complete installation, you will also need the Pocket Profile Set, Track Set, and potentially a Pocket Connector, depending on whether your cabinet is floor-standing or plinth-mounted.

Q: Is there a Left-Hand version?

A: Yes. Pocket systems are handed. This SKU is for the Right-Hand side. If you are doing a Duo + Duo configuration, you will need both a Right and a Left set.

Q: What is the maximum door weight supported?

A: The system supports a maximum door weight of 35 kg per front.
