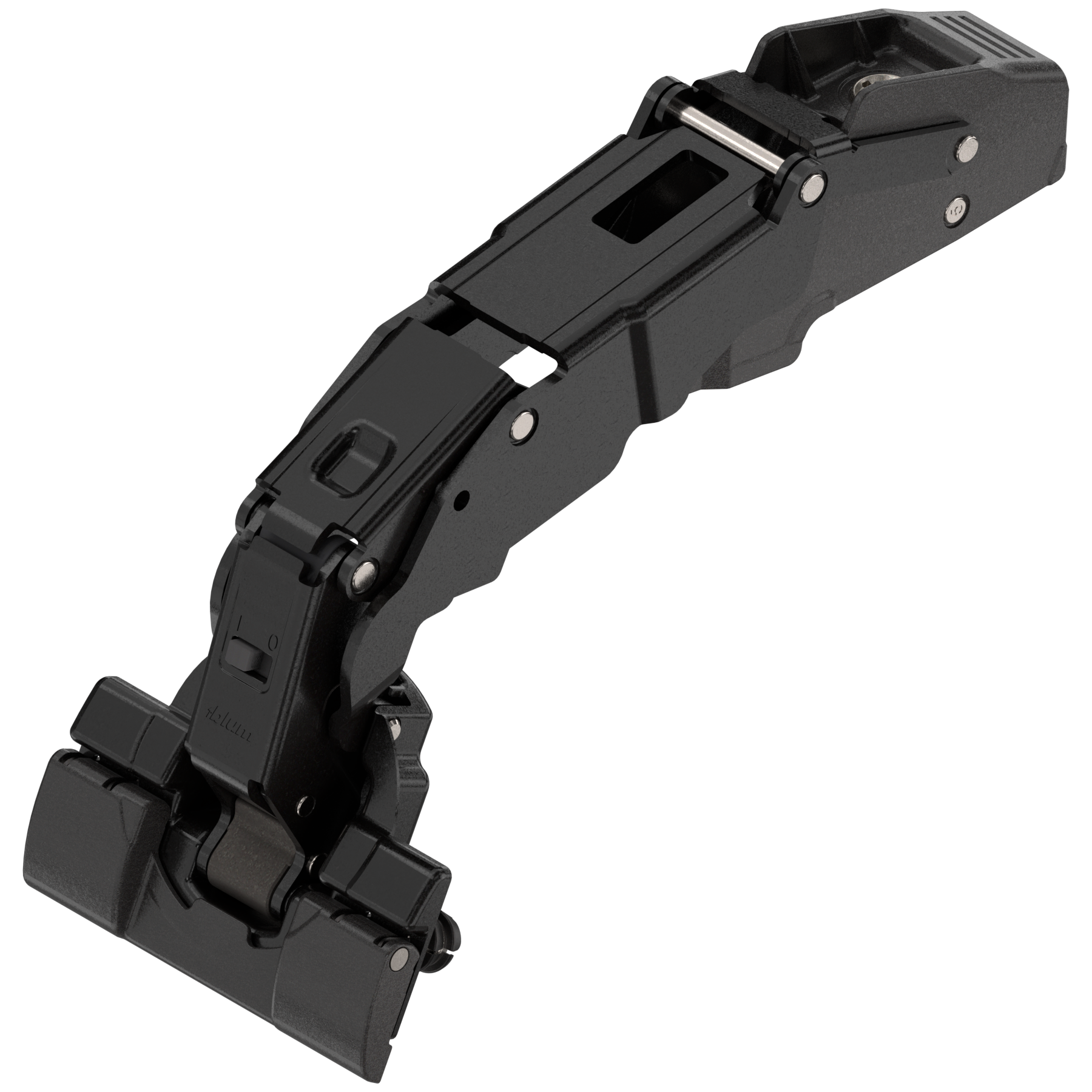

Blum Clip Top Hinge - 155° Nil Protrusion Half Overlay BLUMOTION Sprung - Onyx Black
Blum CLIP top Hinge - 155° Half Overlay BLUMOTION Sprung - Onyx Black is designed to deliver extended door opening... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Hinge - 155° Nil Protrusion Half Overlay BLUMOTION Sprung - Onyx Black - Screw-on | In Stock | 71B7650-OB | Download | £9.13 ex VAT |
|
|
| Blum Clip Top Hinge - 155° Nil Protrusion Half Overlay BLUMOTION Sprung - Onyx Black - Inserta | Typically available in 2-3 days. Need it faster? Contact us. | 71B7690-OB | Download | £9.67 ex VAT |
|
Compare Blum Clip Top Hinge - 155° Nil Protrusion Half Overlay BLUMOTION Sprung - Onyx Black
Blum CLIP top Hinge - 155° Half Overlay BLUMOTION Sprung - Onyx Black is designed to deliver extended door opening combined with integrated soft-close performance in half overlay cabinet applications. As part of the Blum CLIP top system, this hinge incorporates BLUMOTION soft-close technology, ensuring smooth, controlled and silent closing without the need for additional damping components. Manufactured from precision-formed steel with a durable Onyx Black finish, it provides reliable long-term performance in both residential and light commercial environments.
The 155° wide opening angle significantly improves cabinet accessibility compared to standard hinges. This extended range makes it particularly suitable for cabinets incorporating internal drawers or pull-out storage systems positioned behind doors. Designed for half overlay doors, the hinge allows two doors to share a central cabinet panel while maintaining accurate alignment and consistent reveals.
The hinge clips securely onto compatible Blum CLIP top mounting plates and can be removed without tools, simplifying installation and adjustment. Three-dimensional adjustment enables precise vertical, lateral and depth alignment during fitting. This model is available in both Screw-on Boss and Inserta Boss configurations. The Screw-on Boss provides traditional mechanical retention within the hinge cup, while the Inserta Boss uses integrated expansion dowels for faster, tool-efficient installation.
Product Features
- 155° wide opening angle for enhanced cabinet access
- Integrated BLUMOTION soft-close mechanism
- Designed for half overlay door applications
- Integrated sprung hinge mechanism
- Available in Screw-on Boss and Inserta Boss options
- Durable Onyx Black finish
- Compatible with Blum CLIP top mounting plates
- Three-dimensional adjustment capability
Product Benefits
- Improves access to cabinet interiors
- Provides smooth, quiet and controlled door closing
- Supports internal drawer and pull-out configurations
- Maintains precise alignment and consistent reveals
- Offers installation flexibility across production methods
- Complements modern cabinetry with coordinated dark hardware
Technical Characteristics
- Requires pairing with compatible Blum CLIP top mounting plates
- Boss fixing type determines drilling and installation preparation
- Adjustable vertically, laterally and in depth
- Designed for integration within Blum cabinet systems
- Suitable for standard half overlay cabinet constructions
- Correct hinge and plate selection ensures optimal performance
Applications
This hinge is intended for kitchen, bedroom and fitted furniture installations where extended door opening and soft-close performance are required in half overlay configurations. The 155° opening angle makes it particularly suitable for cabinets incorporating internal storage systems positioned behind doors. With both Screw-on and Inserta boss options available, it supports a range of installation methods while maintaining consistent and durable hinge performance.
| Blum Clip Top Hinge - 155° Nil Protrusion Half Overlay BLUMOTION Sprung - Onyx Black - Screw-on | Blum Clip Top Hinge - 155° Nil Protrusion Half Overlay BLUMOTION Sprung - Onyx Black - Inserta | |
|---|---|---|
| Finish | Onyx Black | Onyx Black |
| Opening angle (°) | 155 | 155 |
| Application | Half Overlay | Half Overlay |
| Boss | Screw-on | Inserta |
| Closing Mechanism | Soft Close | Soft Close |
| Boss Drilling Depth (mm) | 11.7 | 11.7 |
| Max Door Thickness (mm) | 31 | 31 |
| Hinge Type | Wide Angled | Wide Angled |
