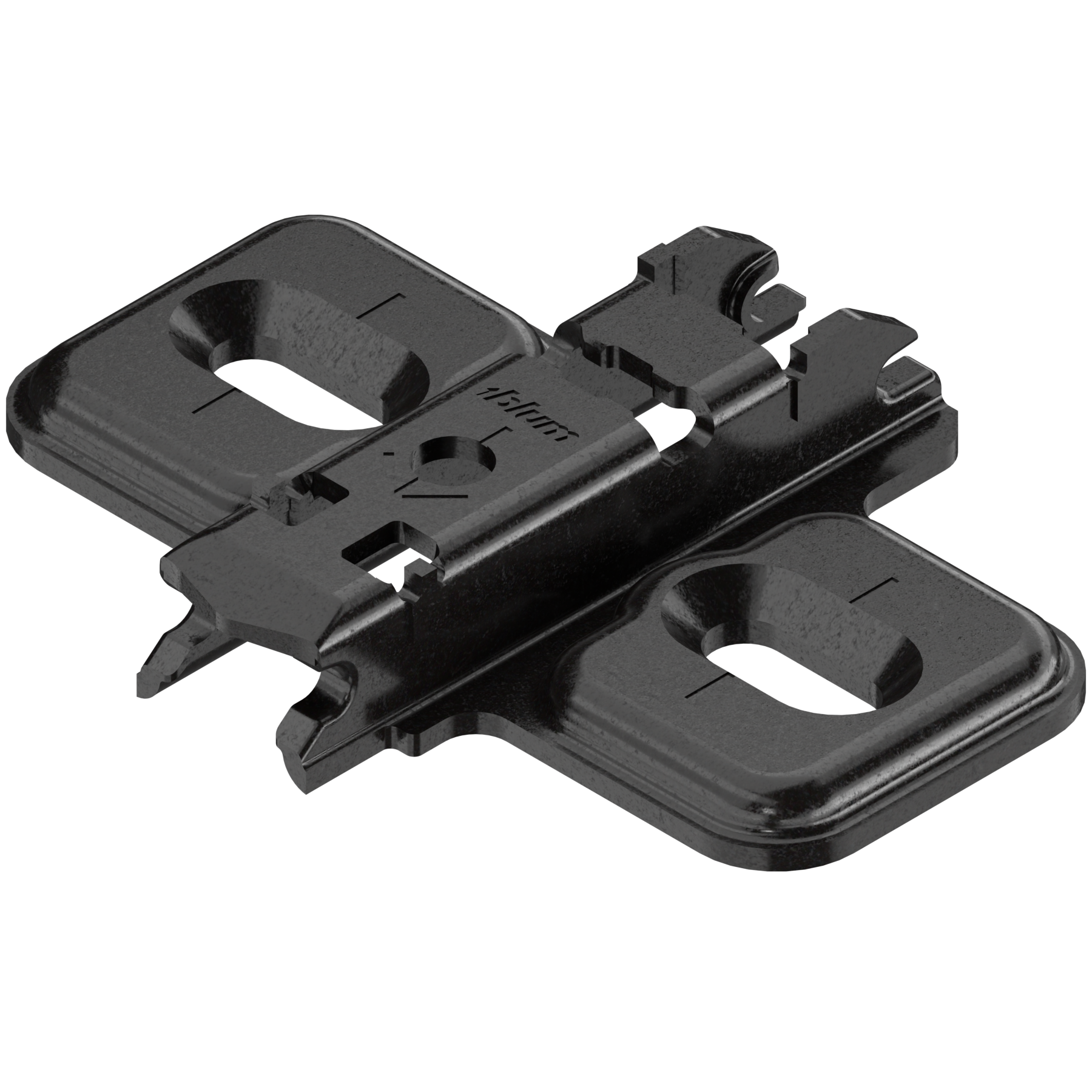

Blum Clip Top Mounting Plate - Cruciform Adjustable Mounting Platewith Elongated Hole - Onyx Black
Blum CLIP top Mounting Plate - Cruciform Adjustable - Onyx Black is engineered to provide a secure and accurately positioned... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Mounting Plate - Cruciform Adjustable Mounting Platewith Elongated Hole - Onyx Black - 0mm | Typically available in 2-3 days. Need it faster? Contact us. | 173L6100-OB | Download | £0.44 ex VAT |
|
Compare Blum Clip Top Mounting Plate - Cruciform Adjustable Mounting Platewith Elongated Hole - Onyx Black
Blum CLIP top Mounting Plate - Cruciform Adjustable - Onyx Black is engineered to provide a secure and accurately positioned fixing point for Blum CLIP top hinge systems. Designed to integrate seamlessly within the Blum hinge platform, this cruciform mounting plate supports consistent hinge performance while allowing precise door alignment in cabinet constructions. Manufactured from steel and finished in durable Onyx Black, it enables coordinated hardware specification in contemporary cabinetry schemes.
The cruciform design ensures stable screw positioning and reliable attachment to the cabinet side panel. Its adjustable configuration allows fine height correction during installation, enabling accurate door positioning and consistent reveals. The 0mm height version provides a neutral hinge offset, making it suitable for overlay calculations where no additional plate height is required. Final door position is determined by the combination of hinge type and mounting plate height.
Designed for use with compatible Blum CLIP top hinges, the plate supports tool-free hinge attachment and removal, simplifying installation and ongoing adjustment. When correctly paired with the appropriate hinge, it contributes to smooth operation and long-term reliability within the cabinet system.
Product Features
-
Designed for Blum CLIP top hinge systems
-
Cruciform mounting plate design
-
Adjustable for precise door alignment
-
0mm height configuration
-
Durable Onyx Black finish
-
Secure screw fixing to cabinet side panel
-
Compatible with tool-free CLIP top hinge attachment
-
Engineered steel construction
Product Benefits
-
Ensures stable and secure hinge mounting
-
Supports accurate door alignment and consistent gaps
-
Provides correct hinge offset within overlay calculations
-
Enables coordinated dark hardware specification
-
Suitable for residential and light commercial cabinetry
-
Maintains long-term structural reliability
Technical Characteristics
-
0mm plate height determines final hinge positioning
-
Requires accurate cabinet side panel preparation
-
Adjustable height correction capability
-
Designed for use with compatible Blum CLIP top hinges
-
Steel construction with protective Onyx Black finish
-
Correct hinge and plate pairing ensures optimal performance
Applications
This mounting plate is intended for cabinet installations requiring a 0mm height configuration within the Blum CLIP top hinge system. It is commonly specified in overlay cabinet constructions where the hinge geometry provides the required projection without additional plate height. Suitable for kitchens, bedrooms, storage units and bespoke fitted furniture, the Onyx Black finish makes it particularly appropriate for contemporary cabinetry schemes featuring coordinated dark interior hardware.
| Blum Clip Top Mounting Plate - Cruciform Adjustable Mounting Platewith Elongated Hole - Onyx Black - 0mm | |
|---|---|
| Finish | Onyx Black |
| Mounting Plate Type | Cruciform |
| Fixing Type | Screw-on |
