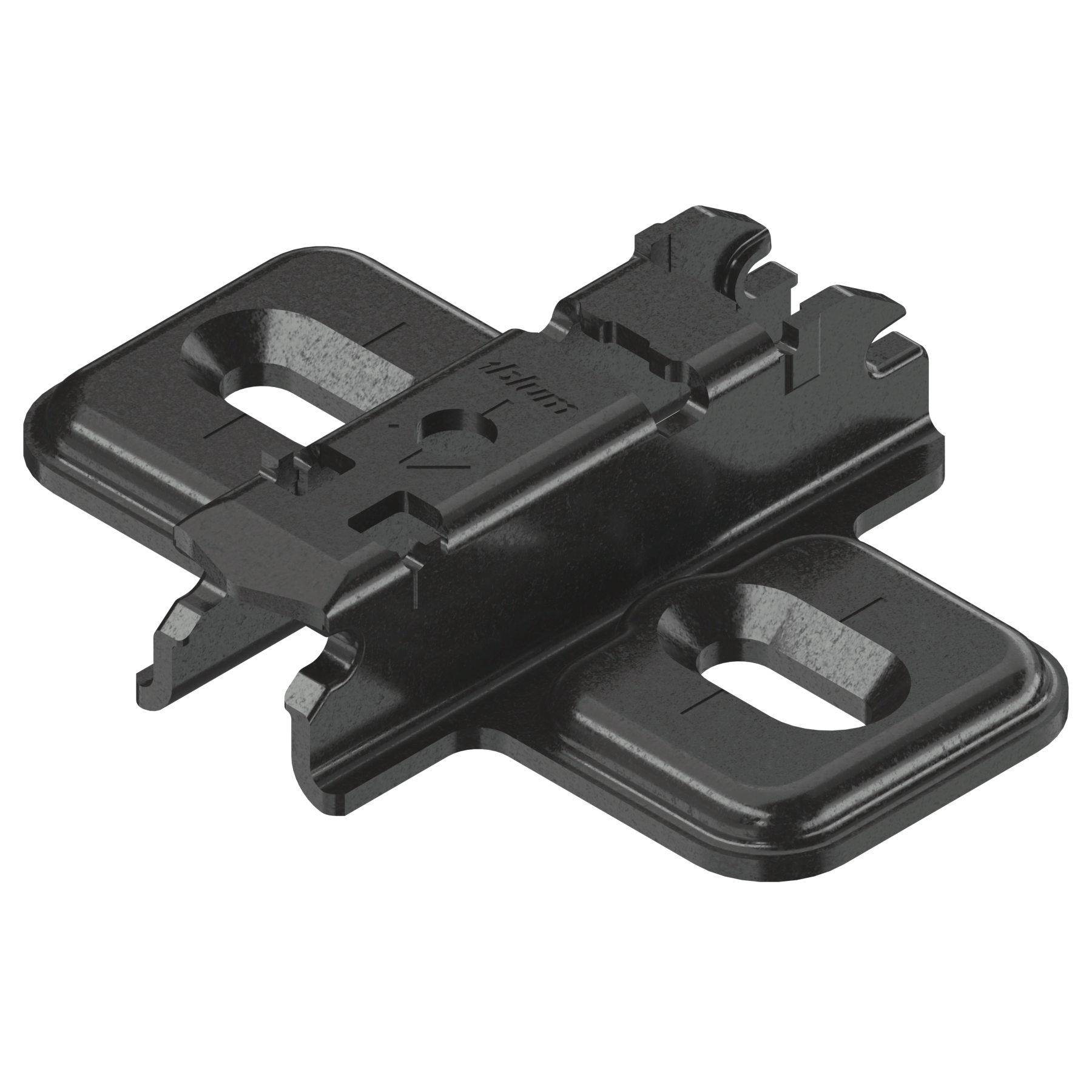

Blum Clip Top Mounting Plate - Cruciform Adjustable Elongated Hole - Onyx Black
Blum CLIP top Mounting Plate - Cruciform Adjustable - Onyx Black is engineered to provide a secure and precise fixing... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Mounting Plate - Cruciform Adjustable Elongated Hole - Onyx Black - 3mm | Typically available in 2-3 days. Need it faster? Contact us. | 173L6130-OB | Download | £0.43 ex VAT |
|
Compare Blum Clip Top Mounting Plate - Cruciform Adjustable Elongated Hole - Onyx Black
Blum CLIP top Mounting Plate - Cruciform Adjustable - Onyx Black is engineered to provide a secure and precise fixing point for Blum CLIP top hinges. As part of the Blum hinge system, this cruciform mounting plate ensures reliable hinge attachment while allowing accurate door alignment within cabinet constructions. Designed for use with compatible CLIP top hinges, it forms a critical component in achieving consistent performance and controlled door movement.
The cruciform design supports stable screw positioning and secure hinge engagement. Its adjustable configuration allows for accurate height correction during installation, supporting efficient cabinet assembly and fine tuning. The 3mm height provides the required offset for specific overlay applications, enabling correct door positioning when paired with the appropriate hinge and cabinet construction.
Finished in durable Onyx Black, the mounting plate supports coordinated hardware specification in contemporary cabinetry schemes. The darker finish integrates visually with Onyx Black hinges and modern cabinet interiors while maintaining the durability expected from Blum steel components.
Designed to clip securely with CLIP top hinges, the plate allows tool-free hinge attachment and removal, simplifying installation and ongoing adjustment.
Product Features
-
Designed for Blum CLIP top hinge systems
-
Cruciform plate design for secure fixing
-
Adjustable configuration for precise alignment
-
3mm height for controlled door positioning
-
Durable Onyx Black finish
-
Compatible with Blum CLIP top hinge range
-
Supports tool-free hinge attachment
-
Engineered steel construction
Product Benefits
-
Ensures stable and secure hinge mounting
-
Supports accurate door alignment
-
Enables efficient cabinet installation
-
Provides correct door offset in specific constructions
-
Coordinates visually with dark hardware schemes
-
Maintains long-term durability in regular use
Technical Characteristics
-
Designed for use with compatible Blum CLIP top hinges
-
3mm plate height determines final door position
-
Requires correct cabinet drilling preparation
-
Adjustable for fine height correction
-
Manufactured from steel with protective finish
-
Proper hinge and plate pairing ensures optimal performance
Applications
This mounting plate is intended for use in cabinet installations requiring a 3mm hinge offset, commonly specified in overlay cabinet constructions. It is suitable for kitchens, bedrooms, storage units and bespoke fitted furniture where precise hinge alignment and coordinated hardware finishes are required. The Onyx Black finish makes it particularly appropriate for contemporary cabinetry schemes featuring dark interior fittings and hardware.
| Blum Clip Top Mounting Plate - Cruciform Adjustable Elongated Hole - Onyx Black - 3mm | |
|---|---|
| Finish | Onyx Black |
| Mounting Plate Height (mm) | Screw-on |
| Mounting Plate Type | Cruciform |
| Fixing Type | 3 |
