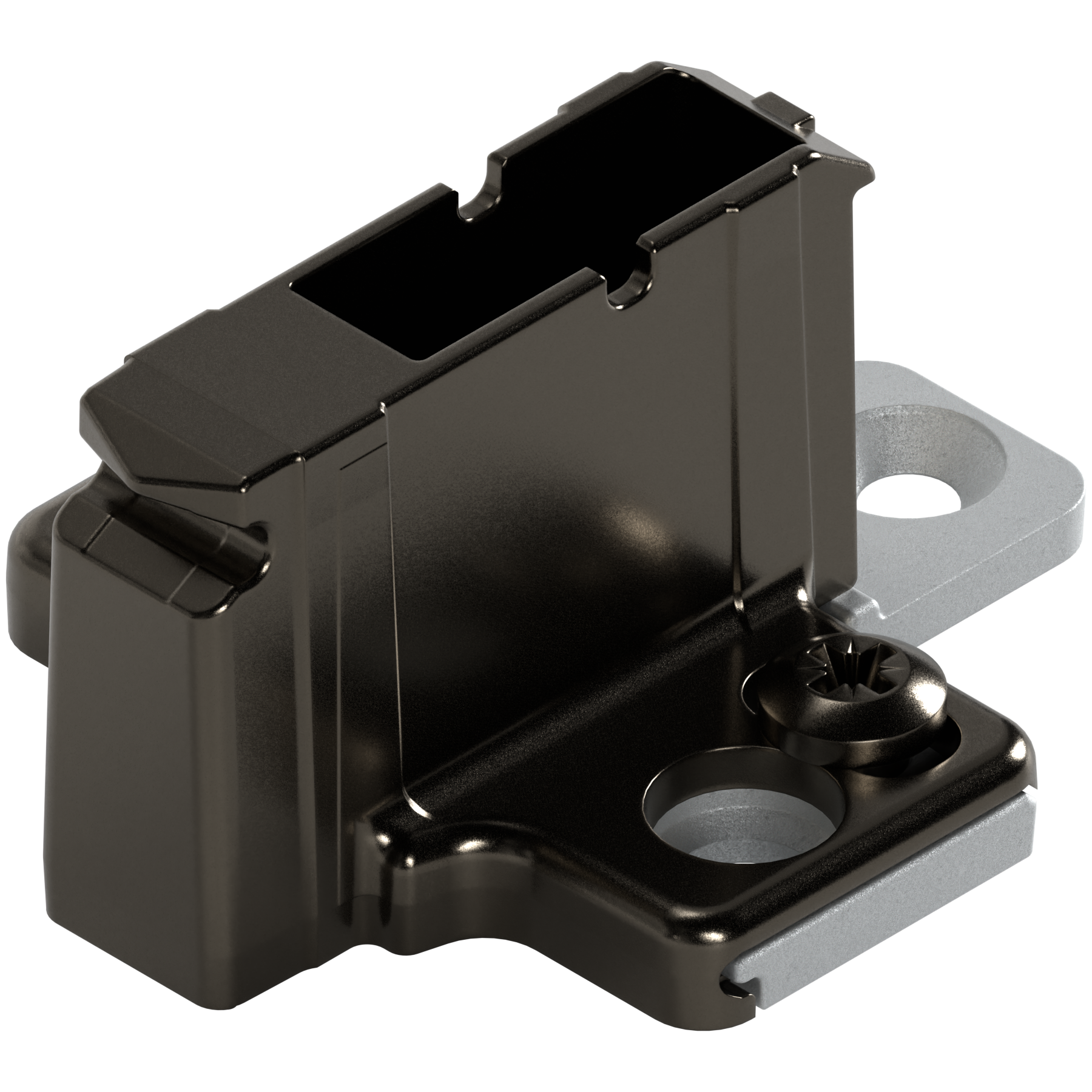

Blum Clip Top Mounting Plate - Cruciform Die Cast - Onyx Black
Blum Clip Top Mounting Plate - Cruciform Die Cast - Onyx Black is designed to provide durable and precisely aligned... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Blum Clip Top Mounting Plate - Cruciform Die Cast - Onyx Black - 6mm | In Stock | 175H9160-OB | Download | £1.07 ex VAT |
|
Compare Blum Clip Top Mounting Plate - Cruciform Die Cast - Onyx Black
Blum Clip Top Mounting Plate - Cruciform Die Cast - Onyx Black is designed to provide durable and precisely aligned hinge fixing within the Blum CLIP top system. Manufactured from robust die-cast construction, this mounting plate delivers enhanced structural stability and long-term reliability in demanding cabinet applications. Designed for seamless integration with compatible Blum CLIP top hinges, it ensures secure attachment and consistent door positioning across a wide range of cabinet constructions.
The cruciform mounting plate configuration supports dependable screw positioning and stable retention to the cabinet side panel. The die-cast body enhances rigidity, making it particularly suitable for cabinetry requiring strong and consistent hinge support. The selectable plate height configuration forms part of the hinge offset calculation and determines the final door position and reveal. Choosing the appropriate height ensures accurate overlay alignment when paired with the specified hinge and cabinet construction.
Finished in durable Onyx Black, the mounting plate supports coordinated dark interior hardware schemes while maintaining corrosion resistance and compatibility within the Blum hinge platform. The design supports tool-free hinge attachment and removal when used with CLIP top hinges, simplifying installation and adjustment while maintaining secure engagement.
Product Features
-
Designed for Blum CLIP top hinge systems
-
Robust die-cast construction
-
Cruciform mounting plate configuration
-
Selectable plate height configuration
-
Durable Onyx Black finish
-
Secure screw fixing to cabinet side panel
-
Compatible with tool-free CLIP top hinge attachment
Product Benefits
-
Provides strong and stable hinge support
-
Enhances durability in high-use cabinetry
-
Supports accurate door positioning and consistent reveals
-
Allows correct overlay calculation through height selection
-
Coordinates visually with contemporary dark cabinetry
-
Suitable for residential and light commercial installations
Technical Characteristics
-
Plate height determines hinge offset and final door position
-
Requires accurate cabinet side preparation
-
Designed for use with compatible Blum CLIP top hinges
-
Die-cast body for enhanced structural integrity
-
Protective Onyx Black finish
-
Correct hinge and plate pairing ensures optimal door performance
Applications
This mounting plate is intended for cabinet installations requiring a robust die-cast cruciform fixing solution within the Blum CLIP top hinge system. The selectable height configuration makes it suitable for overlay constructions where precise hinge offset is essential to achieve correct door alignment. The Onyx Black finish makes it particularly appropriate for contemporary kitchens, bedrooms and fitted furniture projects requiring coordinated dark interior hardware and long-term structural durability.
| Blum Clip Top Mounting Plate - Cruciform Die Cast - Onyx Black - 6mm | |
|---|---|
| Finish | Onyx Black |
| Mounting Plate Height (mm) | 6 |
| Mounting Plate Type | Cruciform |
| Fixing Type | Screw-on |
