Stainless Steel Continuous Hinge

Compare variant

Select the variant you want to compare

Stainless Steel Continuous Hinge

£30.30 ex VAT

Select a variant

Stainless Steel Continuous Hinge

£30.30 ex VAT

Code: ACH60038SS

Total £30.30 ex VAT

In stock

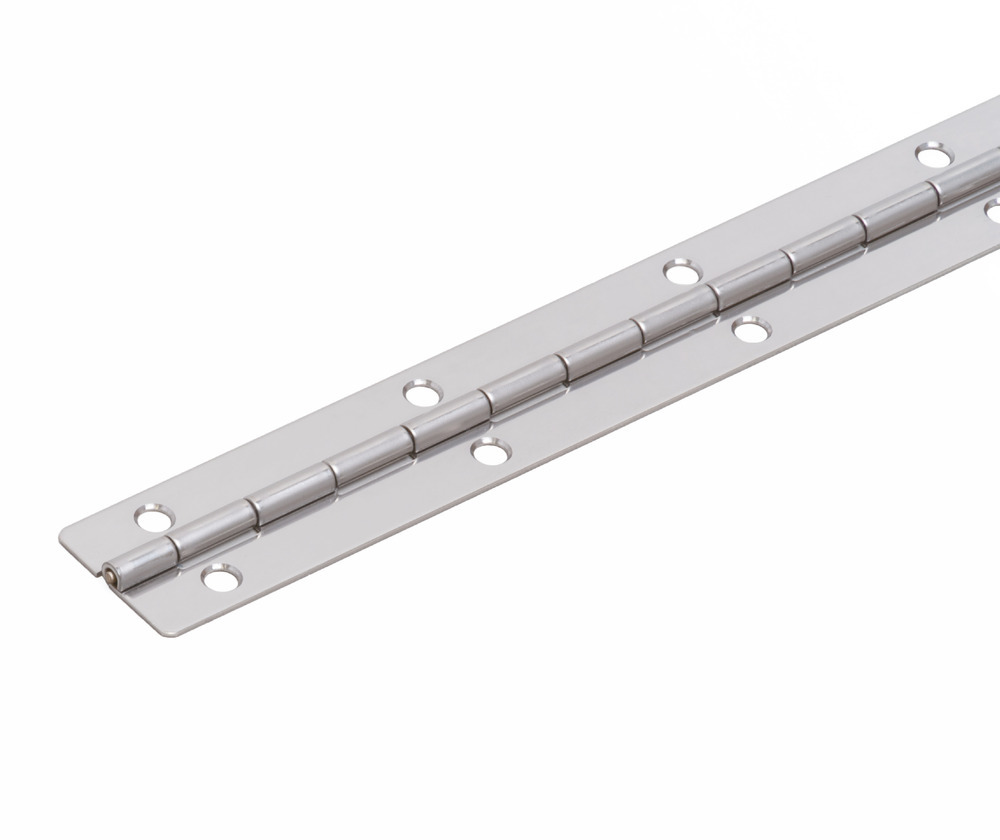

Stainless Steel Continuous Hinge is a heavy-duty piano hinge engineered to provide continuous support and smooth operation across the full length of doors, panels and enclosures. Manufactured from 304 grade self-colour stainless steel, this 600mm long hinge offers outstanding corrosion resistance, durability and a clean architectural appearance. With a 53kg load capacity, it is ideally suited to demanding commercial, industrial and architectural applications requiring reliable long-term performance.

Featuring pre-drilled inline fixing holes, the hinge allows fast, accurate installation while distributing loads evenly along the entire door edge to minimise stress on individual fixing points. The 38mm open width, 1.5mm material thickness and 7mm pin diameter combine to deliver smooth, consistent operation with excellent structural strength. Manufactured from corrosion-resistant 304 stainless steel, it is suitable for both internal and light external environments where durability and appearance are equally important.

Designed for professional fabricators, joiners and maintenance engineers, the Sugatsune Continuous Hinge provides dependable full-length support for heavy doors and access panels. Its robust construction and precision engineering make it an excellent choice wherever maximum strength, smooth operation and long service life are required.


Product Features

  • Heavy-duty continuous (piano) hinge
  • Manufactured from 304 grade stainless steel
  • Self-colour stainless steel finish
  • 600mm hinge length
  • 38mm open width
  • 1.5mm material thickness
  • 7mm hinge pin diameter
  • 53kg maximum load capacity
  • Pre-drilled inline fixing holes for easy installation
  • Smooth full-length hinge operation

Product Benefits

  • Continuous design distributes weight evenly for greater door stability
  • 304 grade stainless steel provides excellent corrosion resistance and durability
  • 53kg load capacity makes it suitable for demanding heavy-duty applications
  • Pre-drilled inline holes simplify installation and ensure accurate fixing
  • Provides smooth, consistent movement along the full hinge length
  • Ideal for commercial, industrial and architectural installations
  • Low-maintenance stainless steel construction
  • Professional finish complements modern equipment and joinery

Technical Characteristics

  • Product Type: Continuous (Piano) Hinge
  • Brand: Sugatsune
  • Material: 304 Grade Stainless Steel
  • Finish: Self Colour Stainless Steel
  • Length: 600mm
  • Open Width: 38mm
  • Material Thickness: 1.5mm
  • Pin Diameter: 7mm
  • Maximum Load Capacity: 53kg
  • Hole Pattern: Inline Pre-Drilled Holes
  • Installation: Surface Mounted

Applications

The Stainless Steel Continuous Hinge is ideal for industrial access panels, electrical enclosures, machinery guards, cabinet doors, equipment housings, storage lockers, commercial furniture, workshop doors, marine applications and architectural joinery. Its 53kg load capacity and full-length support provide exceptional strength, stability and smooth operation for installations where durability, corrosion resistance and reliable performance are essential.

Stainless Steel Continuous Hinge
Finish -
Width (mm) -
Length (mm) -
Load Capacity (kg) -
Material -
Download Specification
