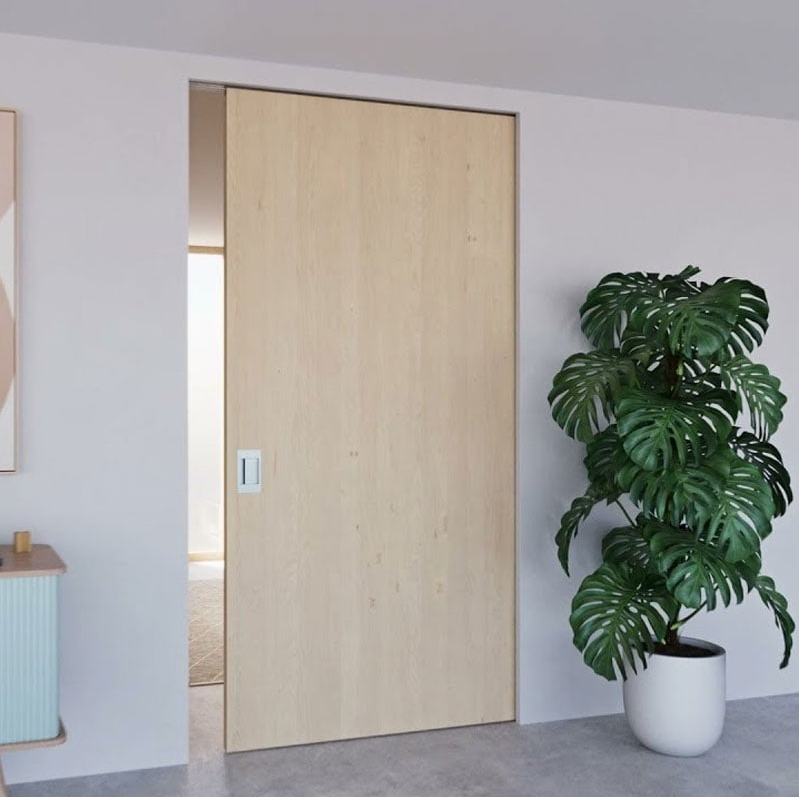

Hawa Porta 100 HMT Pocket - Sliding Door Fitting Set For 1 Door - Without Track - Black
Interior design with the Hawa Porta 100 HMT Pocket Sliding Door Fitting Set. This premium hardware solution is engineered for... More info
| Product name | Variant code | Data sheet | Price | Quantity | ||
|---|---|---|---|---|---|---|
| Hawa Porta 100 HMT Pocket - Sliding Door Fitting Set For 1 Door - Without Track - Black | Typically available in 2-3 days. Need it faster? Contact us. | 057.3133.073 | Download | £120.10 ex VAT |
|
Compare Hawa Porta 100 HMT Pocket - Sliding Door Fitting Set For 1 Door - Without Track - Black
Interior design with the Hawa Porta 100 HMT Pocket Sliding Door Fitting Set. This premium hardware solution is engineered for top-running wooden pocket doors, providing a sleek, handle-free, and virtually invisible transition between rooms. Designed for heavy-duty performance, this set supports doors up to 100 kg (220 lbs), ensuring smooth, silent operation and exceptional durability.
Please Note: This is the fitting set for one door and does not include the running track, which must be ordered separately.
Key Features & Benefits
- Pocket Door Excellence: Specifically designed for wall pocket installations, allowing the door to fully retract into the wall cavity for maximum space efficiency and a clean, flush finish.
- Heavy Duty Capacity: Supports single wooden doors weighing up to 100 kg (220 lbs), ideal for substantial, high-quality doors in residential and commercial spaces.
- HMT Technology (Push-to-Open): Features an innovative Push-to-Open mechanism. A gentle touch on the door edge ejects the door from the pocket, eliminating the need for visible edge pulls and preserving the minimalist aesthetic.
- Smooth & Silent Operation: Equipped with ball-bearing rollers and high-quality components for an effortlessly quiet and smooth glide.
- Minimalist Black Finish: The set components are styled in a sophisticated Black finish (typically plastic/anthracite for visible parts), blending seamlessly with modern, high-end interiors.
- Top-Running System: All mechanics are hidden above the door, providing a clear, unimpeded floor space.
- Simple Post-Construction Installation: The door leaf can be installed into the pocket after construction is complete, simplifying the building process.
Technical Specifications
| Feature | Detail |
| System | Top-running Sliding Door Fitting for 1 Door |
| Application | Wall Pocket Solution (HMT - minimal installation height) |
| Door Material | Wooden Doors |
| Max. Door Weight | 100 kg (220 lbs) |
| Min. Door Thickness | 30 mm (1 3/16'') |
| Max. Door Thickness | 80 mm (3 5/32'') |
| Max. Door Width | 1600 mm (5' 3'') |
| Max. Door Height | 2700 mm (8' 10 5/16'') |
| Finish/Colour | Black/Anthracite (for running gear holders/guides) |
| Optional Feature | Compatible with Soft and Self-Closing mechanisms (must be purchased separately). |
| Acoustics Option | Also available for enhanced sound attenuation (different model/additional seals required). |
| Components Included | Running gear, stoppers, running gear holders, housings, bottom guide, screws (track not included). |
Frequently Asked Questions (FAQs)
Q: Does this set include the track and pocket frame?
A: No. This product is the Sliding Door Fitting Set for 1 Door and does not include the running track or the pocket wall frame. These must be purchased separately.
Q: What is the benefit of the "Push-to-Open" feature?
A: The Push-to-Open (HMT) feature allows you to open the door with a light tap, making door
pulls or handles unnecessary when the door is fully recessed. This creates a completely flush, handle-free, and minimalist aesthetic.
Q: Can I use this system with a soft close mechanism?
A: Yes, the Hawa Porta 100 HMT is compatible with the optional Hawa Soft Close and self-closing mechanisms (sold separately) for controlled, quiet closing and opening.
Q: What is the maximum door weight this hardware can support?
A: It is rated for a maximum door weight of 100 kg (220 lbs).
Q: Is this system suitable for a bathroom or wet area?
A: It is designed for interior use. While the components are durable, installation in constantly wet or high-humidity environments requires proper planning and door material selection.
| HAWA | HAWA's competitors |
| HMT Technology (Push-to-Open): Features an innovative mechanism that ejects the door from the pocket with a gentle touch, allowing for a completely handle-free, minimalist, and flush aesthetic. | While other competitors are maybe known for convenient, pre-assembled pocket door frames, HAWA's HMT system offers a superior, proprietary hardware innovation focused on achieving an unparalleled minimalist aesthetic (no handles/pulls required), paired with high-end, heavy-duty running gear for exceptional smooth operation. |
| Premium Engineering & Heavy-Duty Capacity: Engineered for doors up to 100 kg (220 lbs) with ball-bearing rollers for exceptionally smooth, silent movement and durability in high-traffic architectural spaces. | Hawa and their competitors both target the high-end segment, but the Hawa Porta 100 HMT Pocket is a specialised, robust architectural solution. HAWA's specific focus on combining 100kg capacity with the fully concealed HMT functionality for wall pockets provides a definitive edge in terms of robust performance and integrated high-end design for large doors. |
| Specialised Hardware vs. General Distribution: A proprietary, specialised system from HAWA Sliding Solutions, known for quality and innovation in movement. | When a competitor is a major distributor of general hardware they often sell HAWA products. The Hawa Porta 100 HMT Pocket is a top-tier, specialised product line from the manufacturer, utilising unique technology (HMT) and high-tolerance components that exceed the capabilities and innovative features of the usual competitors standard or general sliding door hardware offerings. |
| System Differentiation (Hardware vs. Frame): HAWA provides the premium moving components that define the operation and aesthetic of a pocket door. | Cavity Sliders (CS For Doors): HAWA comes out on top on mechanical features. CS For Doors are specialists in the structural cavity/pocket frame, focusing on ease of building and structural support. The Hawa Porta 100 HMT system, however, provides the advanced mechanical features (100 kg capacity, quiet running gear, HMT push-to-open) that elevate the door's function and final finish quality above what is typically included in standard cavity slider hardware. |
Alternative Hawa Systems:
- Hawa Porta 60/100 H: Basic system for ceiling mounting.
- Hawa Porta 100 HMT Set with Track: The complete set including the track, for those who prefer an all-in-one purchase.
Product-Highlights |
|
| Flexibility | Ceiling-integrated or surface-mounted pocket solutions possible |
| Productivity | Door can be installed in pocket after construction is complete |
Technical guidelines |
|
| Weight Max. | 100 kg (220 lbs.) |
| Height | 2700 mm (8' 10 5/16'') |
| Length | 1600 mm (5' 3'') |
|
Width |
30–80 mm (1 3/16'' to 3 5/32'') |
| Design / Integration | |
 |
Ceiling mounting |
 |
Ceiling mounting recessed |
 |
Top-running |
 |
Wall pocket installation |
