TECTUS ENERGY TE540 3D A8 Adjustable Concealed Hinge 200 x 32mm 120KG
Compare variant
Select the variant you want to compare
TECTUS ENERGY 3D A8 Adjustable Concealed Hinge 200 x 32mm 120KG - SW168 Bronze Metallic
£511.63 ex VAT
TECTUS ENERGY 3D A8 Adjustable Concealed Hinge 200 x 32mm 120KG - SW175 Light Bronze
£499.04 ex VAT
TECTUS ENERGY 3D A8 Adjustable Concealed Hinge 200 x 32mm 120KG - SW176 Bronze Finish Dark
£559.18 ex VAT
Select a variant
SW168 Bronze Metallic
£511.63 ex VAT
Code: TE540.3D.A8.EGY.SW168
SW175 Light Bronze
£499.04 ex VAT
Code: TE540.3D.A8.EGY.SW175
SW176 Bronze Finish Dark
£559.18 ex VAT
Code: TE540.3D.A8.EGY.SW176
Total £511.63 ex VAT
TECTUS ENERGY 3D A8 Adjustable Concealed Hinge 200 x 32mm 120KG - SW168 Bronze Metallic added to the basket

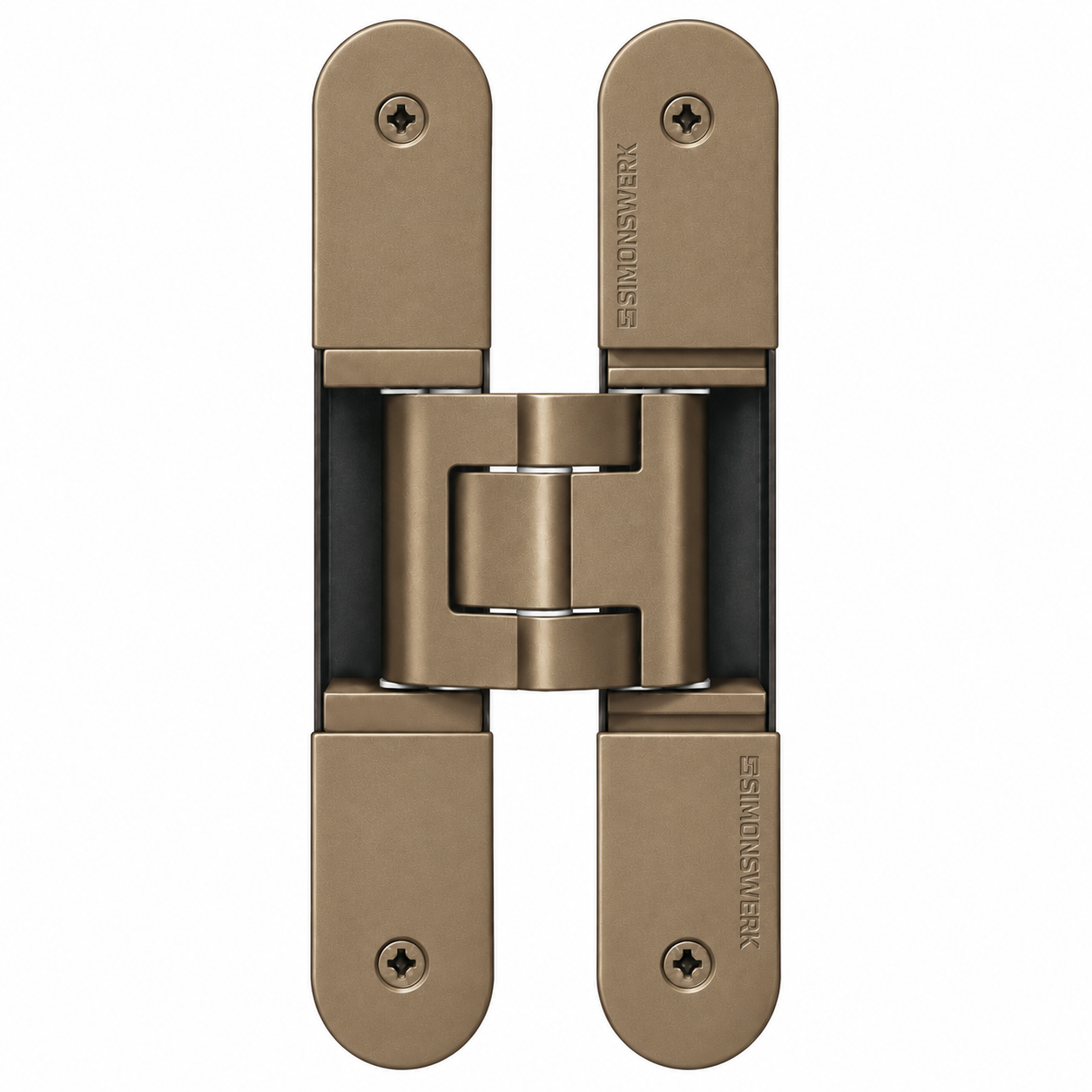

The TECTUS ENERGY 3D A8 Adjustable Concealed Hinge is a high-performance hinge solution combining a completely concealed design with permanent energy transfer for modern door systems. Designed for unrebated heavy-duty doors, it allows electrical power or signals to be transferred discreetly through the hinge area while maintaining clean, uninterrupted door and frame lines.
Designed to accommodate door claddings up to 8mm on both sides, the hinge has a manufacturer-specified 100kg load capacity and is suitable for timber, steel and aluminium frames. Comfortable 3D adjustment allows the installed door to be adjusted by +/-3mm sideways, +/-3mm vertically and +/-1mm in compression, helping installers achieve accurate door alignment.
With an overall size of 200 x 32mm, an opening angle of up to 180° and maintenance-free slide bearings, the hinge combines concealed aesthetics with demanding architectural performance. Individual connection adapter options provide flexibility for permanent energy transfer requirements, while the specified Light Bronze finish complements contemporary and premium architectural door schemes.
Product Features
- Completely concealed hinge system for clean, uninterrupted door designs
- Features permanent energy transfer through the hinge system
- Individual connection adapter options for different installation requirements
- Designed for unrebated heavy-duty doors
- Accommodates claddings up to 8mm on both sides
- Suitable for timber, steel and aluminium frames
- Manufacturer-specified 100kg load capacity
- 3D adjustable for precise door alignment
- Side adjustment: +/-3mm
- Height adjustment: +/-3mm
- Compression adjustment: +/-1mm
- Features maintenance-free slide bearings
- Overall dimensions of 200 x 32mm
- Provides an opening angle of up to 180°
- Specified in an elegant Light Bronze finish
Product Benefits
- Permanent energy transfer provides an integrated solution for doors requiring electrical power or signal transfer while preserving a completely concealed appearance
- 3D adjustment allows accurate side, height and compression correction to achieve precise door alignment after installation
- A8 configuration accommodates claddings up to 8mm on both sides, supporting sophisticated flush and cladded architectural door designs
- 100kg load capacity provides substantial support for appropriately specified heavy-duty door installations
- Completely concealed construction keeps the hinge hidden when the door is closed for clean architectural detailing
- Maintenance-free slide bearings minimise routine hinge maintenance requirements
- Compatibility with timber, steel and aluminium frames provides flexibility across different architectural door constructions
- Individual connection adapter options provide flexibility when configuring the permanent energy transfer system
- 180° opening angle provides a wide operating range where permitted by the surrounding door and frame construction
Technical Characteristics
- Product Type: 3D Adjustable Concealed Hinge with Permanent Energy Transfer
- Configuration: A8 - For Claddings up to 8mm on Both Sides
- Finish: Light Bronze
- Load Capacity: 100kg
- Overall Length: 200mm
- Door Part Width: 32mm
- Frame Part Width: 32mm
- Minimum Door Thickness: 49mm Including Claddings
- Maximum Cladding: Up to 8mm on Both Sides
- Side Adjustment: +/-3mm
- Height Adjustment: +/-3mm
- Compression Adjustment: +/-1mm
- Opening Angle: 180°
- Cutter Diameter: 24mm
- Collar Ring Diameter: 30mm
- Bearing System: Maintenance-Free Slide Bearings
- Energy Transfer: Permanent Energy Transfer
- Frame Compatibility: Timber, Steel & Aluminium
- Door Type: Unrebated Heavy-Duty Doors
- Certifications / Quality Marks: CE, IFT, UL & Certifire
- Classification: EN 1935 / EAD - 4 7 5 1*1 1 —*2 1 12
Applications
The TECTUS ENERGY 3D A8 Adjustable Concealed Hinge is designed for unrebated heavy-duty doors requiring permanent energy transfer and can be used with timber, steel or aluminium frames. Its ability to accommodate claddings up to 8mm on both sides makes it particularly suitable for sophisticated flush and cladded door constructions where clean architectural lines are important. The combination of a 100kg load capacity, permanent energy transfer, 3D adjustment and completely concealed installation makes it suitable for high-specification residential, commercial and architectural door projects incorporating compatible electronic or electrically powered door components.
| TECTUS ENERGY 3D A8 Adjustable Concealed Hinge 200 x 32mm 120KG - SW168 Bronze Metallic | TECTUS ENERGY 3D A8 Adjustable Concealed Hinge 200 x 32mm 120KG - SW175 Light Bronze | TECTUS ENERGY 3D A8 Adjustable Concealed Hinge 200 x 32mm 120KG - SW176 Bronze Finish Dark | |
|---|---|---|---|
| Finish | Bronze Metallic | Light Bronze | Bronze Finish Dark |
| Opening angle (°) | 180 | 180 | 180 |
| Load Capacity (kg) | 100 | 100 | 100 |
| Width Door Part (mm) | 32 | 32 | 32 |
| Width Frame Part (mm) | 32 | 32 | 32 |
| Cutter diameter (mm) | 24 | 24 | 24 |
| Collar ring diameter (mm) | 30 | 30 | 30 |
| Min Door Thickness (mm) | 49 | 49 | 49 |
| Overall Length (mm) | 200 | 200 | 200 |
| Certification | CE, IFT, UL & Certifire | CE, IFT, UL & Certifire | CE, IFT, UL & Certifire |
| Wire Cross Section | 0.14 mm² | 0.14 mm² | 0.14 mm² |
| Max. Voltage (V) | 50 | 50 | 50 |
| No. of Wires | 16 | 16 | 16 |
| Max. Current (A) | 0.8 | 0.8 | 0.8 |
