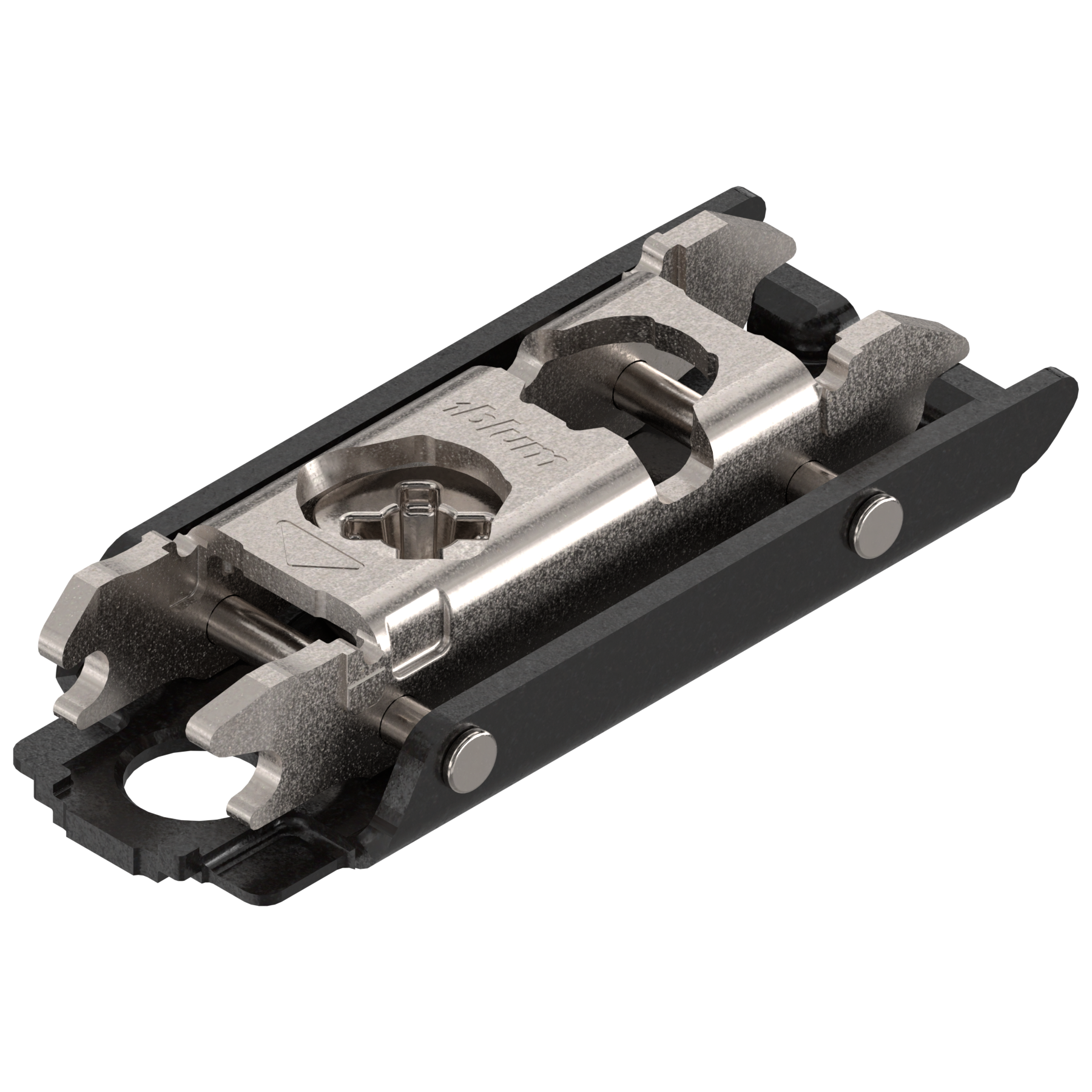

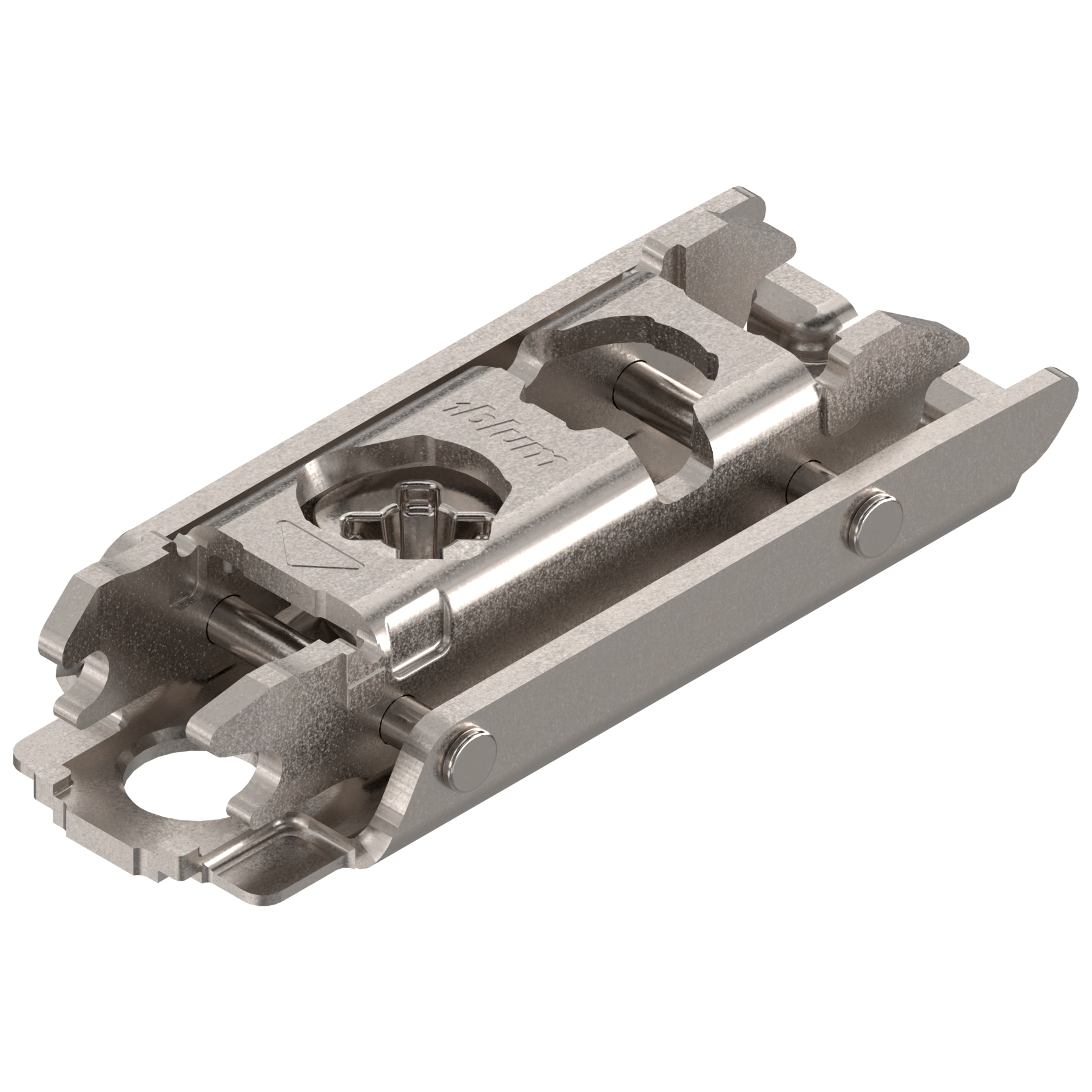

Blum Clip Top Mounting Plate - Inline Cam Adjustable Screw-on - Nickel
Blum Clip Top Mounting Plate - Inline Cam Adjustable Screw-on - Nickel is designed to provide secure hinge fixing with... More info
Compare Blum Clip Top Mounting Plate - Inline Cam Adjustable Screw-on - Nickel
Blum Clip Top Mounting Plate - Inline Cam Adjustable Screw-on - Nickel is designed to provide secure hinge fixing with integrated vertical adjustment within the Blum CLIP top system. Designed for use with compatible CLIP top hinges, this mounting plate ensures stable attachment and precise door positioning across a wide range of cabinet constructions. Manufactured from durable steel with a protective nickel-plated finish, it delivers consistent performance in both residential and light commercial cabinetry.
The cruciform mounting plate configuration provides reliable screw positioning and strong mechanical retention to the cabinet side panel. Featuring an integrated inline cam height adjustment, the plate allows convenient vertical door alignment directly at the mounting plate, simplifying fine adjustment during installation. The selectable plate height configuration forms part of the hinge offset calculation and determines the final door position and reveal. Choosing the correct height ensures accurate overlay alignment when paired with the appropriate hinge.
Designed for seamless integration with Blum CLIP top hinges, the plate supports tool-free hinge attachment and removal. This enables efficient installation and straightforward on-site adjustment while maintaining secure engagement within the hinge system.
Product Features
-
Designed for Blum CLIP top hinge systems
-
Cruciform mounting plate configuration
-
Screw-on fixing
-
Integrated inline cam height adjustment
-
Selectable plate height configuration
-
Durable nickel-plated steel finish
-
Compatible with tool-free CLIP top hinge attachment
Product Benefits
-
Enables precise vertical door alignment via cam adjustment
-
Ensures secure and stable hinge mounting
-
Supports accurate door positioning and consistent reveals
-
Allows correct overlay calculation through height selection
-
Simplifies installation and fine adjustment
-
Suitable for residential and light commercial cabinetry
Technical Characteristics
-
Plate height determines hinge offset and final door position
-
Inline cam allows controlled vertical adjustment
-
Screw-on fixing requires accurate cabinet side preparation
-
Designed for use with compatible Blum CLIP top hinges
-
Steel construction with protective nickel finish
-
Correct hinge and plate pairing ensures optimal door performance
Applications
This mounting plate is intended for cabinet installations requiring secure screw-on fixing with integrated vertical adjustment within the Blum CLIP top hinge system. The selectable height configuration makes it suitable for overlay constructions where precise hinge offset is required to achieve correct door alignment. It is commonly specified in kitchens, bedrooms and fitted furniture projects where efficient installation, fine adjustment capability and consistent door reveals are essential.
| Blum Clip Top Mounting Plate - Inline Cam Adjustable Screw-on - Nickel - 0mm | Blum Clip Top Mounting Plate - Inline Cam Adjustable Screw-on - Nickel - 3mm | |
|---|---|---|
| Finish | Nickel | Nickel |
| Mounting Plate Height (mm) | - | 3 |
| Mounting Plate Type | Inline | Inline |
| Fixing Type | Screw-on | Screw-on |
